Power Station Boiler Spare Parts Platen Steam Super Heater TUV Certification
power station CFB boiler platen superheater TUV certification manufacturer
Super heaters are the one of the most important boiler sapre parts that improves the thermal efficiency. High temperature steam boiler radiant super heater is usually applied in high pressure power plant boiler.
In the boiler, the role of super heater is to heat the saturated steam to a certain temperature of superheated steam to increase power plant efficiency. Repeater essentially further improves the thermal power plant cycle efficiency.

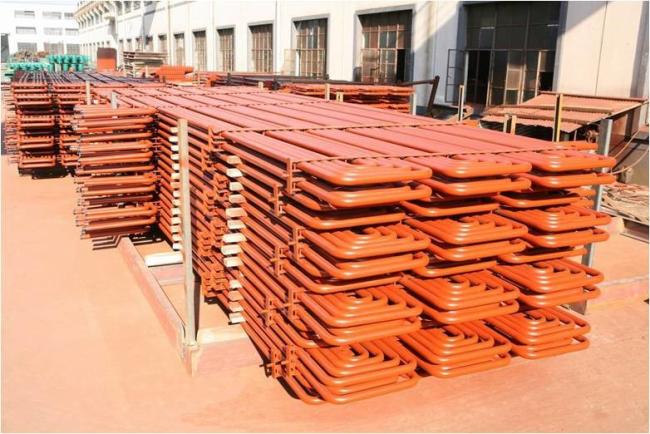

Steam Super heater Coils: Super heater coils are used in a boiler to generate saturated steam. The super heater coils are specially used in Boilers of Power plant. We manufacture Super heater coils in various grades of Alloy steel and in stain less steel tubes with or without support & Header as per customer's drawing.
Chinese GB and ASME material comparision:
In a boiler that made as per China GB standards, the materials are normally named as per their chemical element composition. This is always make engineers outside China confused. The way of naming is controlled by national standard “GB/T 221-2008 Notations for designations of iron and steel”.
In order to help engineers outside China understand GB, we made the following sheet to compare the common use materials.
| GB | ASME | German DIN |
| Structural Steel Plate | ||
| Q235 | SA-283 gr. C | |
| Q345 | SA-1011 gr. 50 | |
| Pressure Steel Plate | ||
| Q235 | SA-516 gr. 60 | |
| 16Mng/16MnR | 19Mn6/P355GH | |
| Pressure Steel Tube( Carbon Steel & Alloy Steel) | ||
| 20# | SA-106 gr. B | |
| 20G | SA-106 gr. B | |
| 15CrMo | SA-213 T12/SA-335 P12 | 13CrMo 44/ 13CrMo45 |
| 12Cr2Mo | SA-213 T22/SA-335 P22 | |
| 12Cr1MoV | ||
| 10Cr9Mo1VNbN | SA-213 T91/SA-335 P91 | |
| Pressure Steel Tube(Austenite Steel) | ||
| 0Cr18Ni9 | SA-213 TP304 | X5CrNi1810 |
| 06Cr25Ni20 | SA-213 TP310S | |
| 06Cr17Ni12Mo2 | SA-213 TP316 | |
| 1Cr18Ni9Ti | SA-213 TP321 | |
| 1Cr19Ni11Nb | SA-213 TP347H | |
Materials listed in the sheet are equivalent or same on Chemical Composition and Physical performance.
The only difference is sizing. Sizing of materials in GB are using ISO unit, which is millimeter (mm), in ASME is Inch.
Suzhou ORL Power Engineering Co., Ltd.is located in Suzhou, Jiangsu Province.
ORL Power is a leading company and exporter of industrial boilers,power plant boilersand boiler parts (including steam drum, membrane waterwall panel,header,economizer, evaporator, superheater,H-fin economizer, spiral fin tube, air preheater, heat pipe, flue etc.), seamless steel tubes/pipes and ERW steel pipes.ORL provides our customer with full range of services including boiler design, fabrication, installation and commissioning, boiler maintenance, and supervision at site. Our product and service include design and manufacture industrial boilers, pressure vessels and tanks, and pressure parts for power plant boilers (600MW, or 1000MW).
