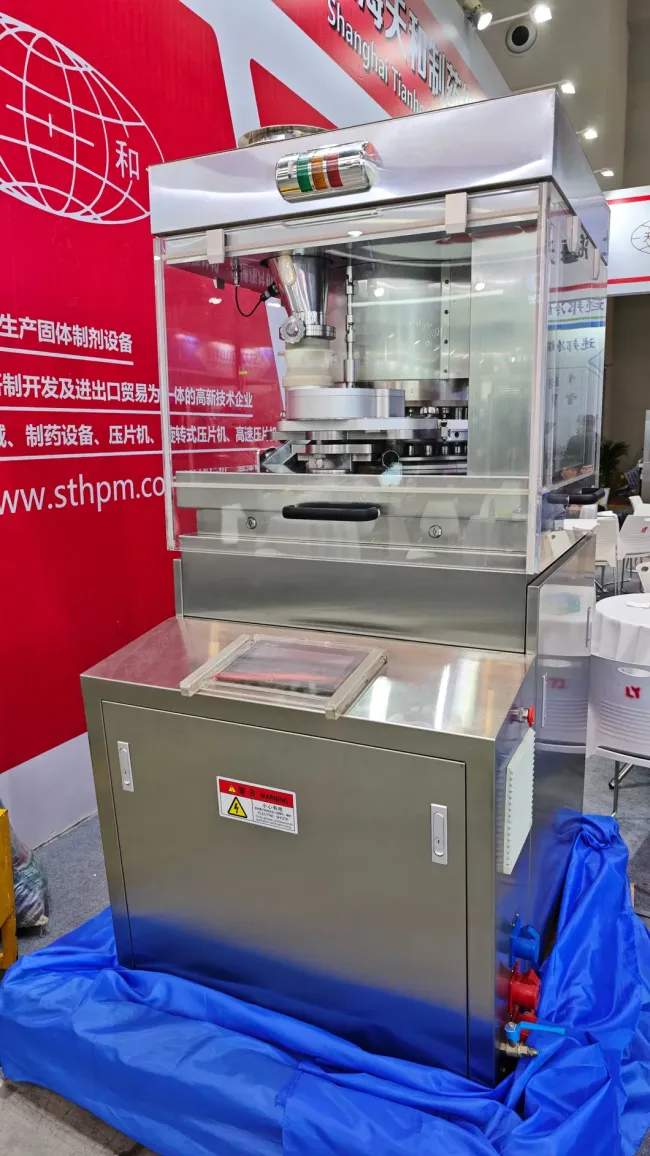

TIANHE 26 Stations D Tooling Milk Effervescent Chewable Powder Press Machine Pharmacy Foods Chemical

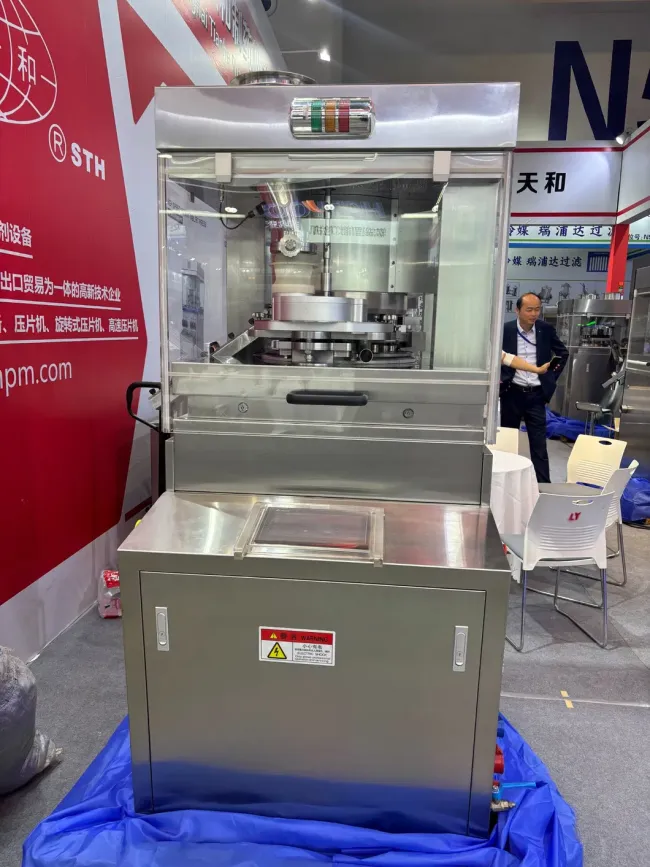

1. Made of stainless steel, The housing is fully closed.The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
2. The protective cover is made of PMMA. The door frames are made of stainless steel. It is beautiful and strong.
3. The frequency inverter control the speed, and the motor is connected with the bottom of the machine so that the motor don't shake while running.

1. Automatic oil & grease central lubrication system. ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.

1. The machine is equipped with the hydraulic overload protection device. When the pressure is over,it will stop automatically so that can protect the punch pins from damaged.
2. A high precision pressure sensor is equipped with an amplifier provided with gaining and self-checking functions so as to implement self-checking of tablet compression pressure reliably. The tablet weight control system is easy to operate and provided the function of rejecting degraded tablets in batches or individually.
3. Different impellers could meet the requirements of different materials. It is the force feeder.

	Delta 10 inch color touch screen (Display Chinese,English or other languages) Display real-time working pressure, rotating speed, output counter and other data. 3-level management authority.. Remote access.(optional) Single value pressure display. Formula management. Electronic signature(optional) Without handwheel easy to operate,rich interface,safe and reliable. Operating table 1.Without handwheel control,the main pressure,pre-pressure and filling volume can be adjusted automatically via touch screen.
	Main pressure & Pre-pressure 1.It adapts high pressure structure,main pressure and pre-pressure are both 100KN,suitable for powder direct pressing or pressing difficult forming materials. 2.Automatic control without handwheel adjustment,servo motor is used to adjust main pressure,pre-pressure and filling quantity. 3.Main pressure and pre-pressure are equipped with pressure sensor,which can real-time display the working pressures of each punch,also can set the limit of pressure protection,so as to automatically stop the machine once over-pressure occurs.

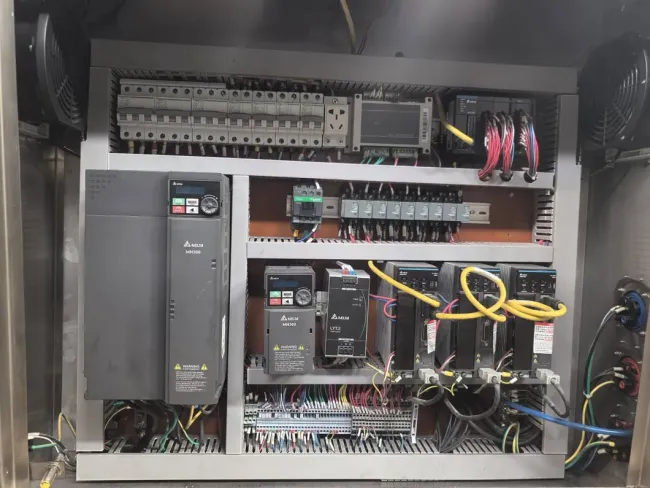

	Electrical system 1.Adopt international famous brand, such as Delta, Schneider etc
	11KW ABB brand big motor

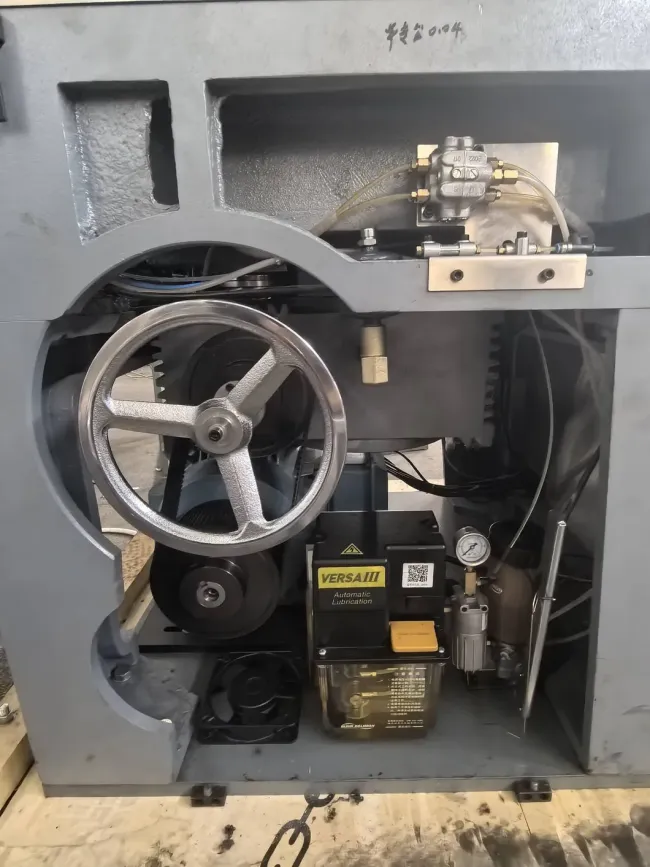

	Automatic lubrication oil &grease system 1.Lubrication oil to lubricate punches, tracks Grease oil to lubricate shaft & bearings.

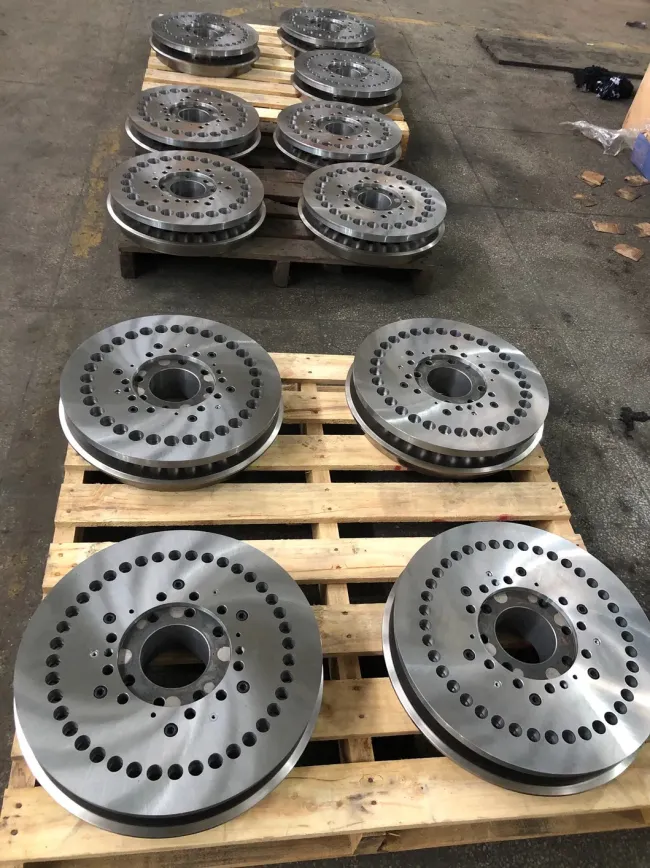

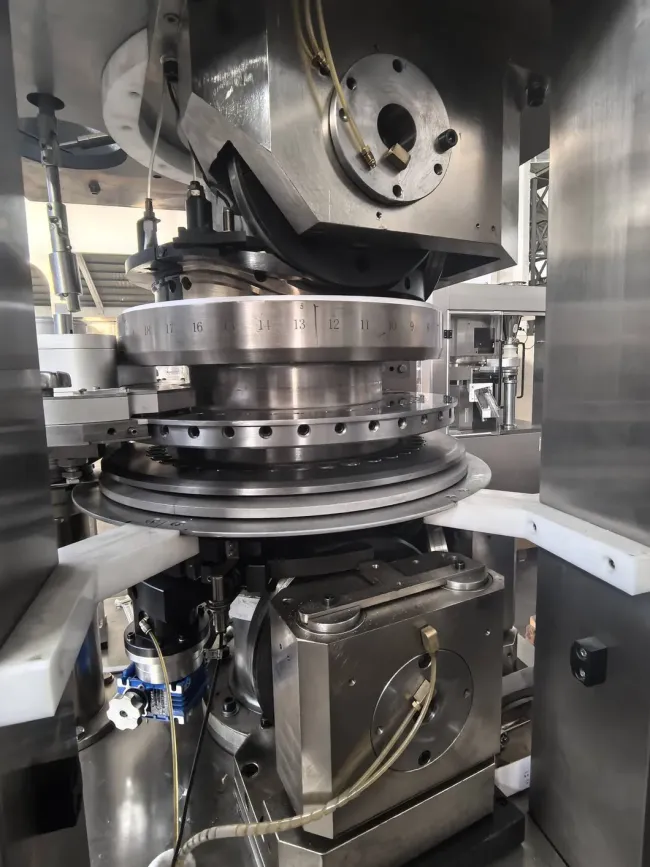

	Turret structure and materials The turret adopts three part structure. Material use HT300& 2Cr13 The surface of turret is covered with hardened layer so that the turret surface is wear resistant. 4.Upper punch with oil catch ring, dust proof ring 5. Lower punch with dust proof ring 6. Full closed working turret

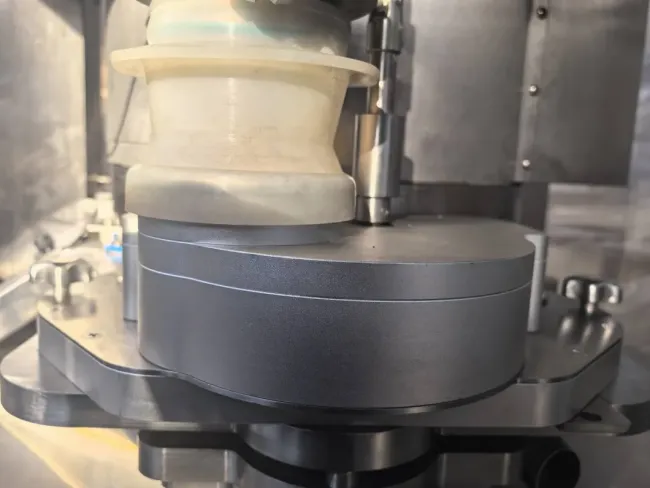

	Force feeder system 1.Adopt 3 pcs paddles type force feeder, Improve granules flow-ability and filling performance, ensure the filling precision   Stainless steel hopper (SS316L) 1.Hopper's volume 15L 2. Powder level sensor 3.Adjusting valve for powder flow 4.Soft sleeve connecting hopper and force feeder (food grade silicone)

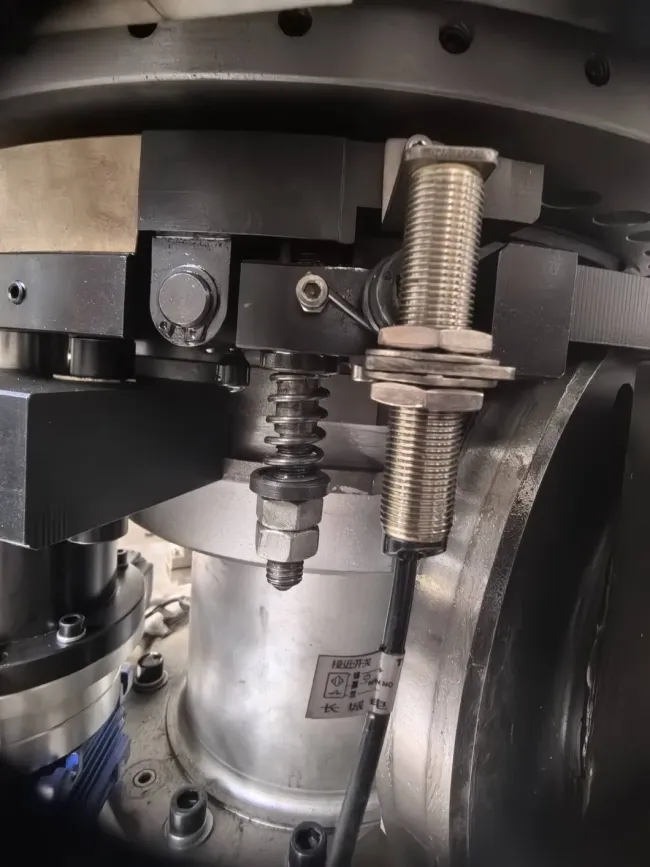

	Upper & lower punch protection device 1.Upper & lower punch tightness protection sensor, when the powder sticks on the punch, the machine can stop automatically 2.Servo Motor control Pressure (Ensure tablet weight difference)

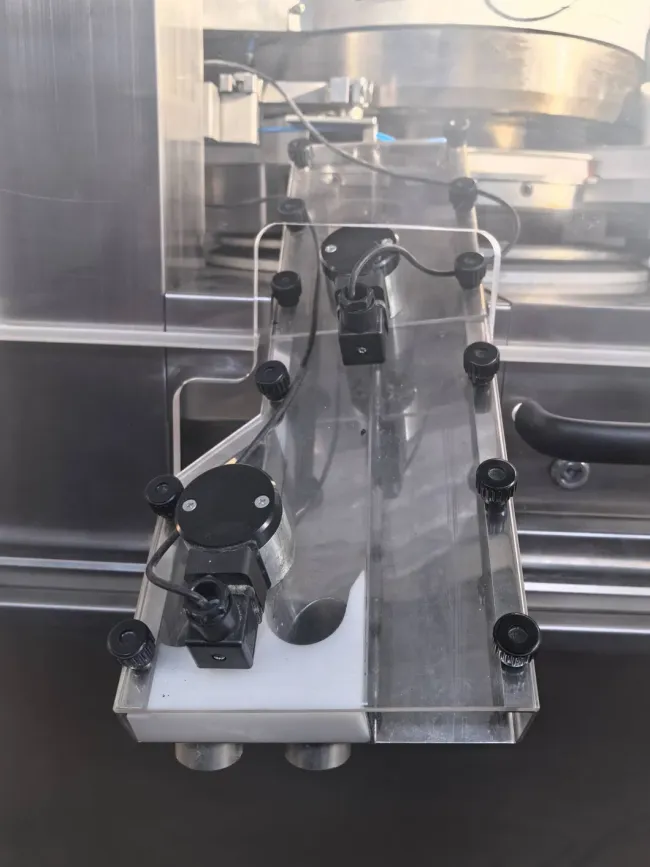

	Tablet rejection system 1.Online pressure detection and automatic adjustment of tablet weight,with tablet rejection function.

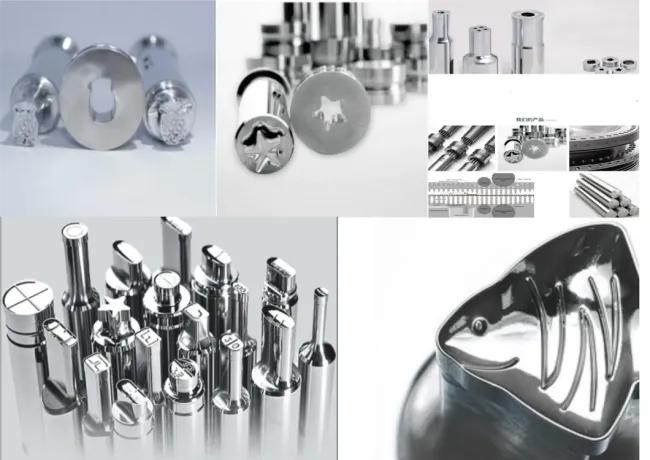

	Punches & dies( Customization according to customer's requirements) Adopts TSM-Tooling standard. We can make it all kinds of punches and dies,such as round,irregular,shallow concave,deep concave,bevel edged,detachable,single tipped,multi tipped,chrome plated or carbide ones. Material(option): S7/D2,DC53, 6CrW2Si etc.

1. Installation Services are available with all new machine purchases. We will provide the technical know how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2. We dispatch our engineer to customer factory to set up and run the machine.
3. We will provide our customers with good quality,good serivce,good price and good friendship.

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years and exported over 70 countries.

We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory service. We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.

All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
