TIANHE Touch Screen Auto Weight Tablet Compression Machine For Health Care,Candy,Milk
Application:
This machine one kind of double side rotary tablet press machine which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
Features:
1:High speed with large quantity punches, double press rollers, suitable for mass production.
2:Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
3:Perfect tablet pressing system. Twice compression forming, reasonable framework with proper space and big pressure roller,Machine performance is reliable and no tablet weight difference.
4:Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
5: Automatic oil and grease central lubrication system, ensure the lubrication of pressure rollers, tooling and tracks, extending the working life of the machine.
6:Special oil proof, dust proof and noise proof design.
7:The machine can stop automatically in case of overpressure to protect the punch pins from being damaged.
8:PLC and touch screen control, automatic and easy control.
9:This machine can support to make double layer tablets after some changes.(Optional).
Main Technical Specifications:
| Model | GZP-35 | GZP-43 | GZP-51A | GZP-51B | GZP-55 | |
| Number stations | 35 | 43 | 51 | 51 | 55 | |
| Tooling Standard | D | B | BB | ZP | BBS | |
| Max main pressure(KN) | 100 | |||||
| Max Pre-pressure(KN) | 20 | |||||
| Max Tablet Diameter(mm) | Round Tablet | 25 | 18 | 13 | 13 | 11 |
| Irregular Tablet | 25 | 19 | 16 | 16 | 13 | |
| Max Filling Depth(mm) | 20 | 18 | 15 | 15 | 15 | |
| Max Tablet Thickness(mm) | 8 | 7 | 6 | 6 | 6 | |
| Max Turret Speed(r/min) | 60 | |||||
| Max Production Capacity(pcs/h) | 252000 | 309600 | 367200 | 367200 | 396000 | |
| Motor Power(kw) | 7.5 | |||||
| Overall Size(mm) | 1370*1170*1800 | |||||
| Machine Weight(kg) | 3200 | |||||
 |

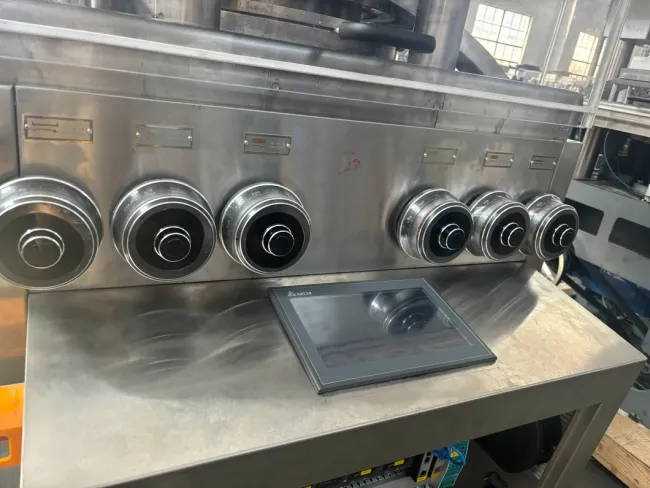

Delta 10 inch color touch screen (Display Chinese,English or other languages)
|
 |

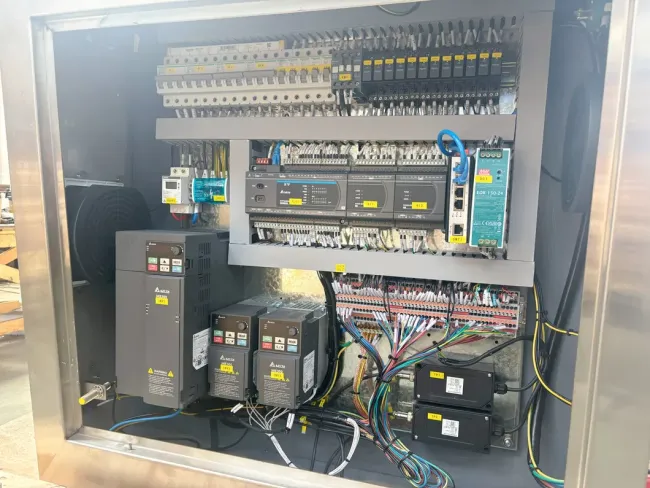

Electrical system
|
 |
Automatic lubrication oil system
Protection functions
|
 |

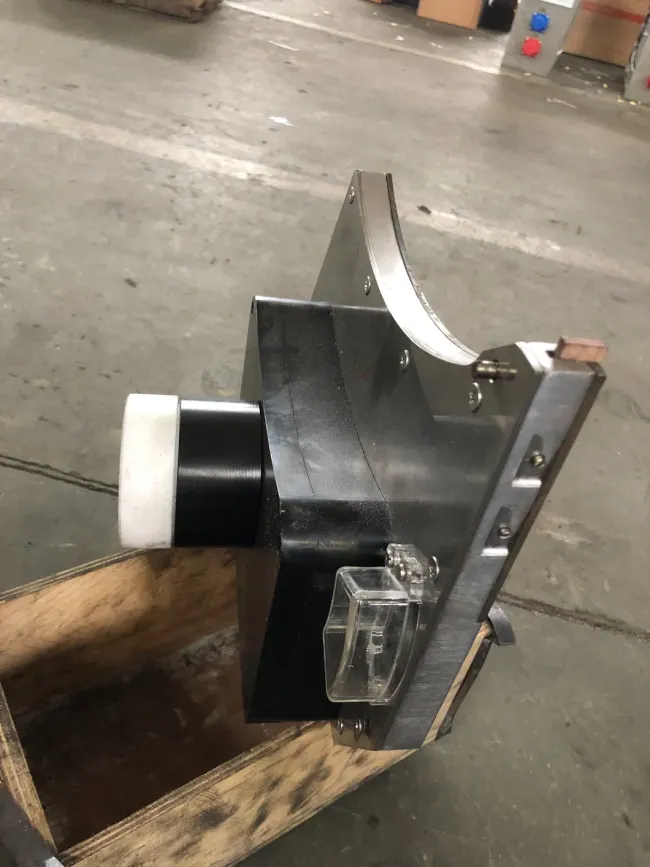

Feeder device
|
 |

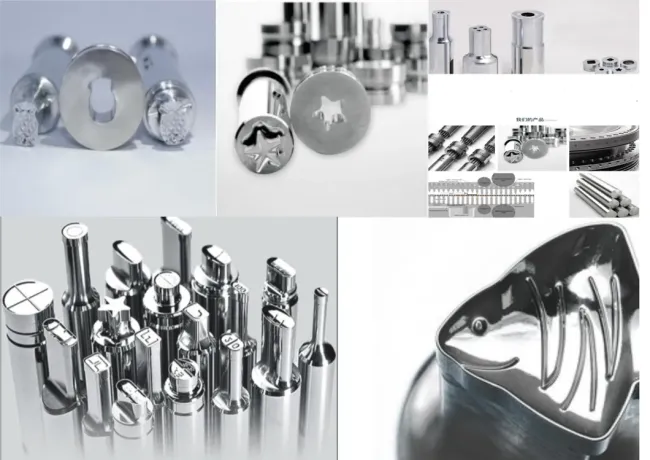

Punches & dies( Customization according to customer's requirements)
|
1. Wooden packaging meets export packaging standards.
2. Packaging is free of charge.
3. The delivery time is 15-45 working days.
4.The transportation methods can be SEA,AIR and EXPRESS.
Q: Where is your factory?How can I visit your factory?

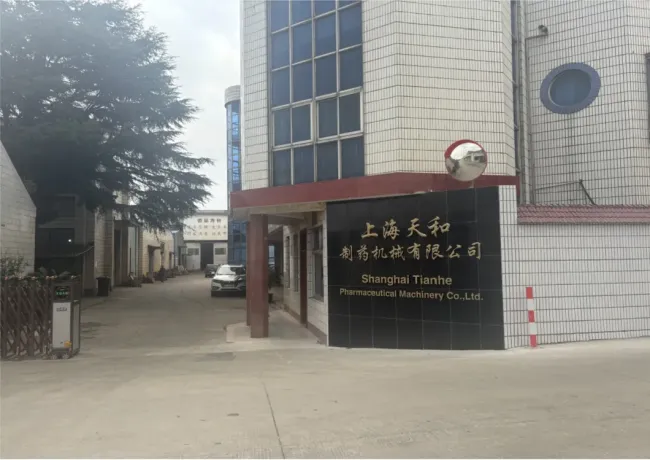

A: Our factory is located in Shanghai, Chongming District.
Warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind,you can send us samples and we will test on machines.
During that time,we will take videos and cleaner pictures for you.We can also show you on-line by video chatting.
Q: How can I trust you for the first time business?
A: Please note our business license and certificates above .If you don't trust us.we suggest using Trade Assuran Serivce for all
transactions to protect your money and assure our serivce for you.
Q: How about the after serivce and guarantee period?
A: We offer 1 year warranty.Technical support reply is available with 24 hours.We have professional team with experienced technician
to serve abroad and do the best after service to assure the machine whole life usage.
Q: How to contact you?
A: Please find the contact information on this page,you can contact us by Email,Wechat,Whatsapp and phone etc.
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years and exported over 70 countries.
We are a high-technology enterprise, all tasks from casting to metal machining and general assembly are accomplished by ourselves. We are dedicating ourselves to reinforce quality control and satisfactory service. We can supply the most suitable products to our clients based on detailed URS analysis and mutual communication.
All machine in our factory can be customized depending on your requirements,We have successful experience design machines according to customer's requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.
