500g - 5000g Pharmaceutical Auxiliary Equipment Milk Vitamin Powder Automatic Auger Filling Machine
500g - 5000g Milk Vitamin Powder Automatic Auger Filling Machine Quick Details
- Servo motor drive screw
- PLC, Touch screen and weighing module control
- To save all product’s parameter formula for later use, save 10 sets at most.
- Replacing the auger parts, it is suitable for material from super thin powder to granule.
- Include handwheel of adjustable height.
Application

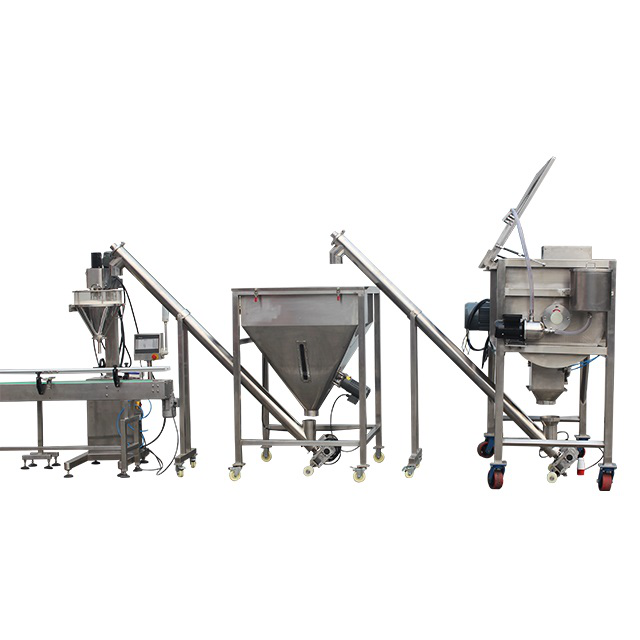

This Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Main Technical Specifications
| Model | L1-S | L1-M |
| Dosing mode | Directly dosing by auger | Directly dosing by auger |
| Filling weight | 1 - 500g | 10 – 5000g |
| Filling Accuracy | ≤ 100g, ≤±2%；100 – 500g, ≤±1% | ≤ 500g, ≤±1%; >500g, ≤±0.5% |
| Filling Speed | 15 – 40 bottles per min | 15 – 40 bottles per min |
| Power Supply | 3P AC208-415V 50/60Hz | 3P AC208 - 415V 50/60Hz |
| Air Supply | 6 kg/cm2 0.05m3/min | 6 kg/cm2 0.05m3/min |
| Total power | 1.2Kw | 1.6Kw |
| Total Weight | 160kg | 300kg |
| Overall Dimensions | 1500×760×1850mm | 2000×970×2030mm |
| Hopper Volume | 25L | 50L |
