Powder Fine Pulverizer Grinder Miller Crusher For Pharmacy and Foods
Powder Fine Pulverizer Grinder Miller Crusher For Pharmaceutical Processing Equipment
Powder Fine Pulverizer Grinder Miller Crusher For Pharmaceutical Processing Equipment Quick Details
- Output Size(mesh): 60-320
- Feeding Size(mm):≤10
- Application: Medicine Processing, Chemicals Processing, Food Processing
- Production Capacity(kg/h): 10-200
- Place of origin: China
- Warranty: 1 year
Powder Fine Pulverizer Grinder Miller Crusher For Pharmaceutical Processing Equipment Application:
It is widely used for grinding low hardness materials in pharmaceutical, chemical and foodstuff industries.
Powder Fine Pulverizer Grinder Miller Crusher For Pharmaceutical Processing Equipment Working Principle:

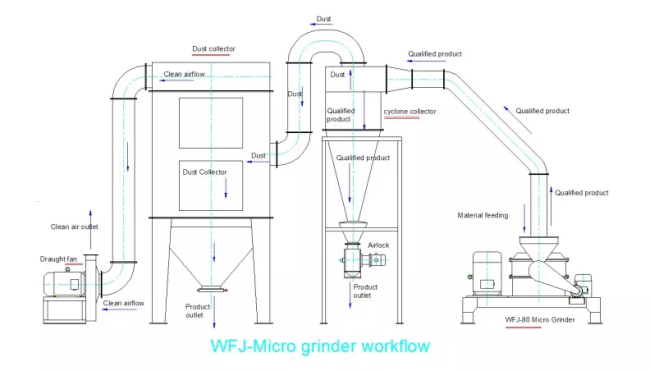

WFJ ultrafine mill is a vertical axis reflection micro-grinder, which can simultaneously complete two processing processes ,the micro pulverizing and powder sorting.It is mainly used to produce fine powder and super fine powder. This high performance equipment consists of main frame, feeding device, crushing device, discharge pipe, transmission and motor, supporting by the host, dust collector, high pressure centrifugal fan, rotary valve, whirlpool aggregator and electric control cabinet, etc. The particle size can be adjusted during operation and the fineness can be reached at 80-320 mesh. The equipment has a self-cooling function.
Main Techincal Specification:
| Model | WFJ-15 | WFJ-20 | WFJ-36 | WFJ-60 |
| Production Capacity(kg/h) | 10-200 | 50-300 | 100-1000 | 200-2000 |
| Feeding Size(mm) | <=10 | <=10 | <=10 | <=10 |
| Output Size(mesh) | 60-320 | 60-320 | 60-320 | 60-320 |
| Total Power(kw) | 13.5 | 18.37 | 39.05 | 84 |
| Main Speed(r/min) | 6000 | 5700 | 5000 | 3200 |
| Overall Weight(mm) | 4200*1200*2700 | 4300*1350*2700 | 7920*1480*3290 | 9500*1800*3730 |
| Weight(kg) | 1000 | 1500 | 2500 |
|
Our Company:
STH is a professional manufacturer and supplier of pharmaceutical and food chemicals machinery and equipment in China.We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including tablet press machine, soft-gel production line, granulator, mixer, dryers, pulverizer, packaging machine,soft and hard blister packing machine, capsule filling machines, cartoner etc.
We made the Standard, we beyond it. Welcome you come to STH for visiting and guiding.
Our Services:
1.We have seven technicians who gets passport ready to travel all over world to offer service to you.
2.We have 24hours hot line for Technical Support.
3.We get 18hours internet line for technical support.
4.Video camera in workshop to help you adjust and solve machine problem in working situation.
