MINI PC, Fanless Industrial PC, GTM-HYIPC101
Price:
To be negotiated.
MOQ:
I Unit
Delivery Time:
7 days after payment clear
Brand:
Global Tech
Product Description
- Supports multiple CPUs
- Dual network ports / dual serial ports / 6USB
- Support VGA+ HDMI dual display interface
- Mini-PCIe slot inside for expansion of WIFI or 4G modules, etc.
- Compact size and versatile
Product parameters
| Parameters | ||
| Model | GTM-HYIPC101 | |
| Overall size | 136*127*40mm | |
| Features | Fully enclosed fanless | |
| Appearance | All aluminum body/black | |
| Configuration parameters | ||
| CPU supportable |
Intel® Celeron® Processor N2840 (Dual-core and dual-threaded / 2.16Ghz / 2.58GHz RWD) Intel® Celeron® Processor J1900 (Quad-core quad-threaded / 2.00 Ghz / 2.42 GHz RWD) Intel® Celeron® Processor J4125 (Quad-core and quad-threaded / 2.00Ghz / 2.70GHz RWD) |
|
| Memory | 2G/4G/8G | |
| Storage | 32G/64G/128G/256G/512G Solid State Drive Support additional 2.5 inch mechanical hard drive |
|
| Network | Realtek RTL8111F Gigabit Network Card | |
| Operating System | Win 7/Win10/Linux | |
| Interface |
2*Network port / 2*Serial port / 6*USB / 1*HDMI / 1*VGA / 1*Audio interface Default serial port is RS232, can be changed to RS485 |
|
| WIFI (optional) | WIFI module can be added | |
| 4G (optional) | 4G module can be added | |
| Network | Realtek RTL8111H Gigabit NIC with Wake-on-LAN/PXE support | |
| Power input | Standard 12V DC connector, 5.5mm outer diameter, 2.5mm inner diameter | |
| Power adapter | AC-DC 12V power adapter as standard | |
| Environmental parameters | ||
| Operating temperature | -10 to 60°C | |
| Storage temperature | -20 to 70°C | |
| Working humidity | 5%～95% relative humidity, non-condensing | |
| Other parameters | ||
| Heat dissipation method | Fanless cooling design, passive heat dissipation | |
| Power on method | Switch start, support call self-start | |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) | |
| Installation method | Rail Mount / Wall Mount / Desktop Mount / VESA Mount | |
| Packing list | 1*Complete machine / 1*12V power adapter / 1*National standard power cable / 4*Foot pad | |

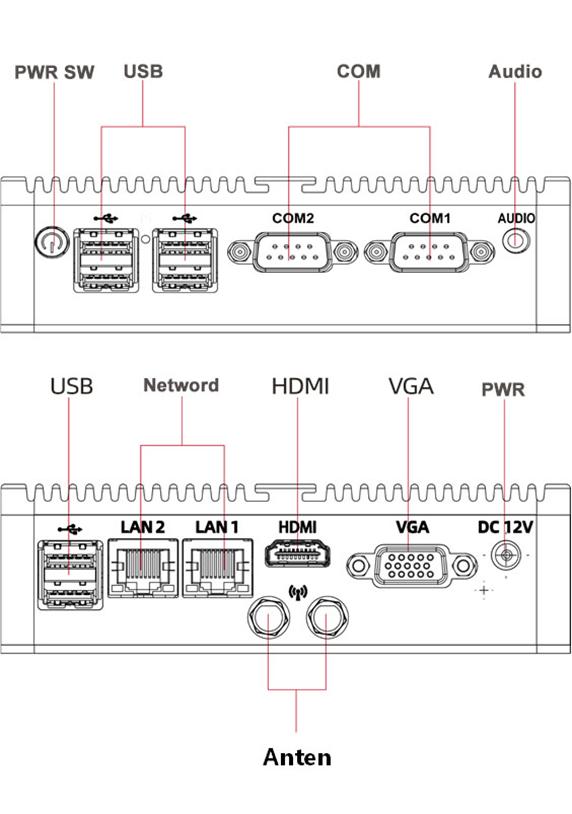

3. product interface
