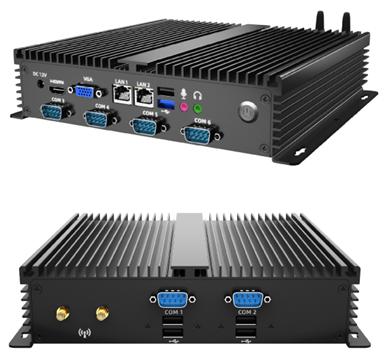

MINI PC、Fanless Industrial PC, GTM-HYIPC301
Price:
To be negotiated.
MOQ:
1 Unit
Delivery Time:
7 days after payment clear
Brand:
Global Tech
Product Description
1.Product features
- Fully enclosed fanless design
- Supports multiple CPU options
- Support VGA+ HDMI dual display interface
- Mini-PCIe slot inside for expanding blocks such as WIFI or 4G
- Compact size and versatile
2. Product parameter
| Model | GTM-HYIPC301 |
| Overall size | 236*213*54.5mm |
| Features | Fully enclosed fanless |
| Appearance | All aluminum body/dark gray |
| CPU | Intel® Celeron® Processor J1900 |
| (2M cache, up to 2.42 GHz) | |
| Intel® Core™ i5-4300U (quad-generation i5) | |
| (3M cache, up to 2.90 GHz) | |
| Intel® Core™ i5-7200U (7th Generation i5) | |
| (3M cache, up to 3.10 GHz) | |
| Memory | 2G/4G/8G |
| Storage | 32G/64G/128G/256G (MSATA solid state drive) |
| Network | Realtek RTL8111F Gigabit Network Card |
| Operating System | Win 7 (default) / Win10 / Linux |
| Interface | 2*Network port / 6*Serial port / 6*USB / 1*HDMI / 1*VGA / |
| 1*LINE OUT / 1*MIC / | |
| COM | The default serial port is RS232, two of the serial ports can be changed to RS485 |
| WIFI (optional) | Support 2.4G & 5G WiFi,Support Wi-Fi 802.11b/g/n protocol |
| 4G (optional) | V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 |
| LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM. | |
| GPS Global Positioning | |
| Power input | Standard 12V DC connector, 5.5mm outer diameter, 2.5mm inner diameter |
| Power adapter | Standard AC-DC 12V@3A, 36W |
| Operating temperature | 0 to 50°C |
| Storage temperature | -10 to 60°C |
| Working humidity | 5%～95% relative humidity, non-condensing |
| Heat dissipation method | Fanless cooling design, passive heat dissipation |
| Power on method | Switch start, support call self-start |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Installation method | Recessed, wall-mounted, desktop |
| Packing list | 1*Complete machine / 1*12V3A power adapter / 1*National standard power cable / 4*Foot pad / 1 package of screws |

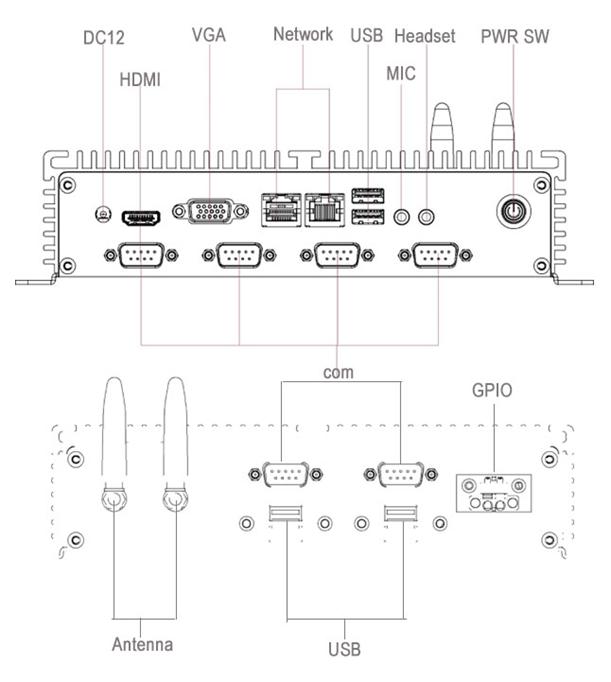

3.Product Interface
