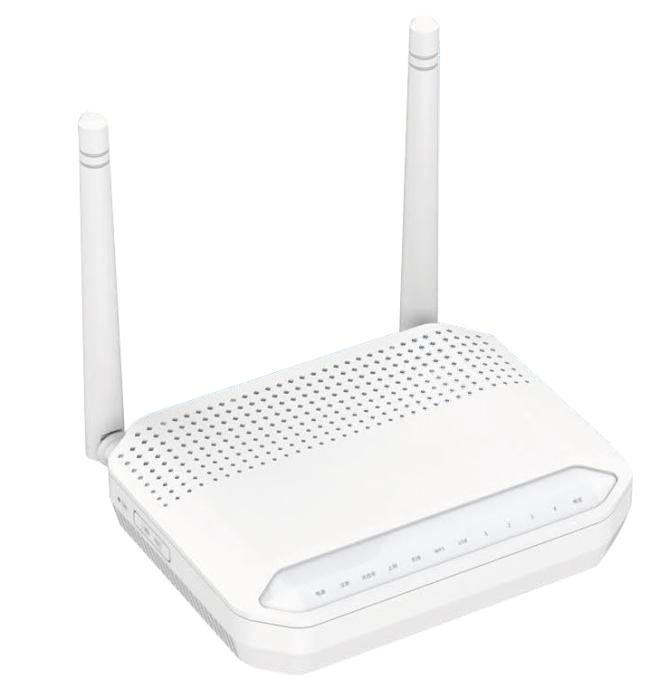

Fiberhome HG6543C4,1GE+3FE+VOIP+2.4G wifi

1. Operation Safety Rules

For a correct, safe use of the equipment, please read the following carefully and strictly observe the operation safety rules during your operations.

• High optical power can cause bodily harm, especially to eyes. Never look directly into the end of the optical transmitter fiber jumper or the end of its active connector.
• Exercise care if you must bend fibers. If bends are necessary, the fiber bending radius should never be less than 38mm.
• Power socket overload, broken cables or broken plugs may cause electric shock or fire. Regular checkups on power supply wires and cables are essential. If any appears damaged, replace at once.
• Use the power supply adapter provided in the package only. Using other adapters may cause equipment damage or operation failures.
• Install the equipment in a well-ventilated environment without high temperatures or direct sunlight to protect the equipment and its components from overheating, which can result in damage.
• Power off the equipment in the event of lightning storms. Disconnect all cables connected to the equipment such as power cable, network cable and telephone line to avoid equipment damages caused by lightning strike.
• Avoid moisture, dampness and water damage. Equipment exposed to water cannot work normally and can be extremely hazardous due to shorting.
• Do not lay this equipment on an unsteady base.

2. Product Introduction

The HG6543C4 is an FTTH GPON optical network unit. It provides communication and entertainment service in multiple modes such as data, voice and video, to meet integrated access requirement of families or small enterprises. The HG6543C4 supports these functions:

• Uses GPON uplink that is compliant with ITU-T G.984 series of standards;
• Supports the configuration of Ethernet interface rates, working modes and MDI/ MDIX auto-negotiation mode.
• Supports packet filtering and DoS attack protection.
• Provides performance statistics on all Ethernet lines.
• Supports obtaining the user IP address in the DHCP mode.
• Supports obtaining the user IP address in the PPPoE mode.
• Supports various voice protocols including SIP/H.248.
• Supports IGMP snooping protocol.
• Supports the L2/ L3 wire speed forwarding.
• Supports the AES-128 algorithm for data encryption of downlink data;
• Supports global configuration of queue priority and flexible mapping of 802.1p value of packets.
• Supports wireless access mode, compliant with the 802.1 b/g/n standard.
• Supports the following authentication modes: open, shared, WPAPSK, WPA2PSK and WPAPSKWPA2PSK.
• Supports the following encryption modes: NONE, WEP, TKIP, AES and TKIPAES.

3. Product Type

GPON: downlink rate 2.49Gbit/s. GPON: uplink rate 1.244Gbit/s 1GE+3FE interfaces 1 phone interfaces Wi-Fi interface

External antenna 2.4Ghz 2*2 (802.11b/g/n)
