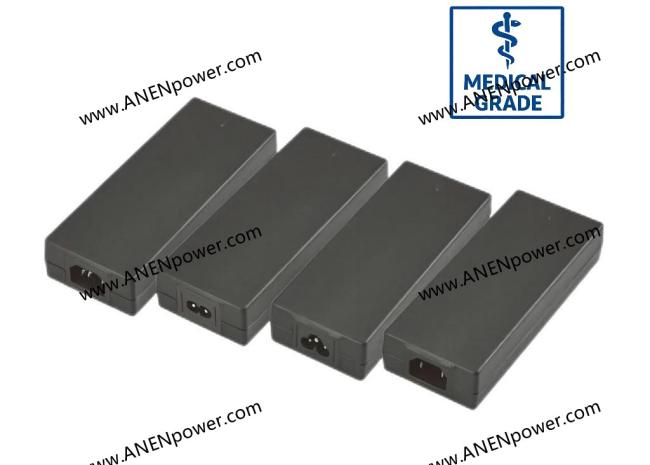

240W Medical Desktop AC Adapter 24V 10A 48V 5A Power Supply for Surgical System Equipment
240W Max Medical Desktop AC Adapter: 24V 10A / 48V 5A Ultra-Safe Power Solution
Product Overview
The 240W Max Medical Desktop AC Adapter is a high-capacity, clinical-grade power conversion solution engineered for the mission-critical energy demands of modern surgical suites. Delivering a robust 24V 10A or a stable 48V 5A, this adapter is the premier power choice for Surgical Robotic Arms, Electrosurgical Units (ESU), and Motorized Operating Tables.
Strictly compliant with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and surgical teams during invasive procedures. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that sensitive surgical sensors, high-speed microprocessors, and high-definition endoscopic displays operate with absolute precision and zero signal noise. Whether integrated into a robotic surgical assistant or a high-power laser therapy system, this 240W unit delivers the sustained wattage and medical-grade protection required for life-sustaining healthcare.
Key Specifications
Our medical series incorporates redundant safety layers and advanced thermal management to ensure fail-safe performance in 24/7 clinical environments.
-
Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).
-
Total Output Power: 240W Continuous Maximum.
-
Common Output Configurations:
-
24V Series: 24V 10A (240W Max - Industry standard for surgical actuators and motors)
-
48V Series: 48V 5A (240W Max - Ideal for PoE++ medical devices and high-voltage modules)
-
12V Series: 12V 20A (Specialized ultra-high current version)
-
19V/19.5V Series: 19V 12.6A / 19.5V 12.3A (240W Max - For high-end medical PCs)
-
-
Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).
-
Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.
-
Leakage Current: Ultra-low leakage current (< 100µA) to prevent micro-shocks in the operating room.
-
AC Inlet: IEC320-C14 (Grounded Class I for maximum EMI shielding).
-
Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.
-
MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.
-
Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.
Ideal Applications
The 240W medical-grade output is optimized for power-intensive surgical and diagnostic electronics:
-
Surgical System Equipment: Robotic surgical assistants, automated operating tables, and electrosurgical generators.
-
Advanced Imaging: High-performance endoscopic video processors, mobile CT/X-ray processing units, and 4K surgical monitors.
-
Life Support: Hospital-grade ventilators, high-capacity anesthesia workstations, and extracorporeal membrane oxygenation (ECMO) peripherals.
-
Clinical Computing: Medical-grade AI diagnostic servers and high-capacity nursing workstations-on-wheels (WOW).
-
Laboratory Automation: High-throughput blood analyzers and automated pharmacy dispensers.
Professional Safety Suite
-
Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection during surgical procedures.
-
Surgical-Grade EMI/EMC: Optimized to prevent interference with high-frequency electrosurgical tools and sensitive physiological monitors.
-
Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.
-
High-Current DC Connection: Equipped with 4-Pin Power DIN or High-Current Aviation Connectors to safely manage 10A currents without terminal overheating or voltage drop.
-
Comprehensive Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain system operation during power transients.
