72W Desktop AC Adapter 24V 3A 12V 6A Power Supply for Automation Equipment LED Lighting

72W Desktop AC Adapter: 24V 3A / 12V 6A High-Power Switching Supply

Product Overview

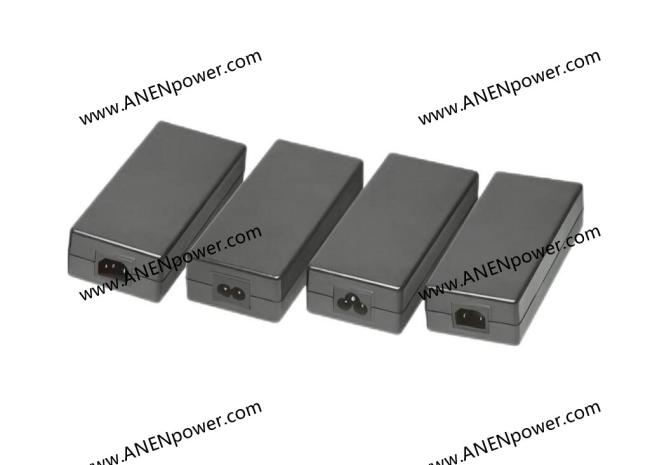

The 72W Desktop AC Adapter is a heavy-duty power solution engineered for high-wattage applications that demand consistent and reliable DC output. Delivering a robust 24V 3A or 12V 6A, this adapter is specifically optimized for Automation Equipment and high-intensity LED Lighting systems. Its sophisticated internal architecture features a high-performance switching regulator that maintains precise voltage stability even under significant inductive or capacitive loads. Housed in a durable, heat-resistant casing with an ergonomic desktop form factor, it ensures superior heat dissipation and a safer, grounded connection compared to smaller wall-mount units. Whether for 24/7 industrial production lines or large-scale commercial lighting, this 72W transformer provides the powerful energy foundation your hardware requires.

Key Specifications

Our 72W series is meticulously tested for peak performance, incorporating a full suite of safety protection protocols for mission-critical reliability.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance)

• Total Output Power: 72W Maximum

• Output Voltage & Current Range:

  • 12V Series: 12V 5A, 12V 6A (72W Max)

  • 15V Series: 15V 4A, 15V 4.8A (72W Max)

  • 18V Series: 18V 3.5A, 18V 4A (72W Max)

  • 24V Series: 24V 2.5A, 24V 3A (72W Max)

  • 36V Series: 36V 2A (72W Max)

  • 48V Series: 48V 1.5A (72W Max)

• Ripple & Noise: < 150mVp-p (Measured with 20MHz bandwidth)

• MTBF (Mean Time Between Failures): > 50,000 Hours at 25°C ambient temperature, full load

• DC Connector: Standard 5.5mm x 2.1mm / 2.5mm (Heavy-duty 16AWG/18AWG low-resistance DC cable as standard)

• Energy Efficiency: Meet DoE Level VI / CoC Tier 2 standards

• Global Certifications: UL, cUL, CE, GS, TUV, UKCA, SAA, RCM, PSE, KC, KCC, CCC, CB, FCC, RoHS, REACH.

Ideal Applications

The high-capacity 72W output makes this adapter the preferred choice for power-intensive devices:

• Industrial Automation: PLC controllers, high-torque DC motors, automated sensor arrays, and HMI panels.

• Commercial LED Lighting: High-power LED strips, DMX controllers, professional studio lighting, and architectural accent lights.

• Computing & Storage: Multi-bay NAS (Network Attached Storage) systems, mini-workstations, and external GPU enclosures.

• Displays & Visuals: Large-format LCD/LED monitors, digital kiosks, and high-brightness signage.

• Security & Network: Multi-camera NVR systems, high-power PoE switches, and signal boosters.
