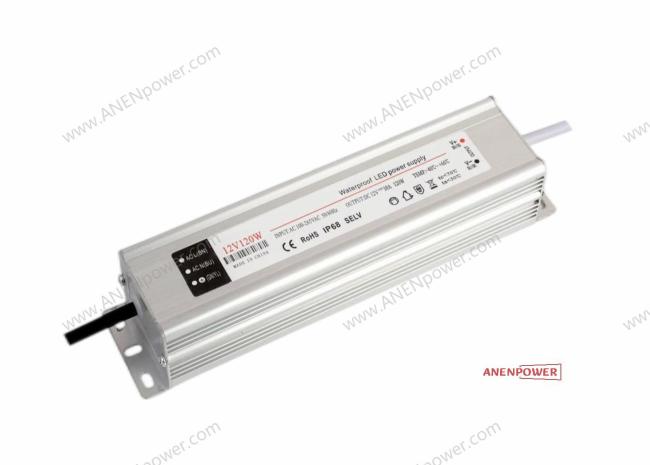

12V/24V/36V/48V Waterproof LED Power Supply - 120W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
12V/24V/36V/48V Waterproof LED Power Supply - 120W Output, IP67 Rated | Reliable Outdoor LED Driver
Power your outdoor lighting with confidence using our Waterproof LED Power Supply. Designed for durability and reliability, this IP67-rated LED driver ensures consistent performance in even the harshest environments. Whether for architectural lighting, garden illumination, or commercial signage, this power supply is the perfect solution for your outdoor needs.
Key Features:
-
Multiple Voltage Options: Available in 12V, 24V, 36V, and 48V to suit various LED applications.
-
High Power Output: Delivers a stable 120W, ensuring smooth and reliable operation for your LED lighting systems.
-
Waterproof Design: IP67-rated enclosure protects against dust, water, and extreme weather conditions.
-
Durable Construction: Built with premium materials for long-lasting performance, even in demanding outdoor settings.
-
Safe and Certified: CE and ROHS certified, meeting international safety and environmental standards.
Applications:
-
Outdoor LED strip lighting
-
Garden and landscape illumination
-
Commercial signage lighting
-
Architectural and decorative lighting
Compact and efficient, this LED driver offers a dependable power source for a wide range of outdoor lighting projects. With its weatherproof and robust design, it’s the ultimate choice for ensuring your lighting shines bright, rain or shine. Upgrade your outdoor lighting experience with our 12V/24V/36V/48V Waterproof LED Power Supply. Reliable performance, built to last.
| MODEL DETAIL SPEC. | APL120W-12010000 | APL120W-2405000 | APL120W-3603333 | APL120W-4802500 | |
| INPUT | Input Voltage: | 100-240VAC/200-240VAC | |||
| Input Frequency: | 50/60Hz | ||||
| Inrush Current: | 65A/230VAC at full load | ||||
| AC Current: | 0.85A/115VAC 0.42A/230VAC | ||||
| Leakage Current: | ＜0.25mA/240VAC | ||||
| Efficiency: | 88% | ||||
| OUTPUT | DC Voltage: | 12V | 24V | 36V | 48V |
| Rated Current: | 10A | 5000mA | 3333mA | 2500mA | |
| Rated Power: | 120W | ||||
| Voltage Tolerance: | ±5.0% | ||||
| Ripple and Noise: | 120mVp-p | 240mVp-p | 360mVp-p | 480mVp-p | |
| Line Regulation: | ±3% | ||||
| Load Regulation: | ±5% | ||||
| Setup, Rise, Hold Up time: | 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load | ||||
| ENVIRONMENTAL | Operating Temperature: | -20 ~ +50 (Refer to "Derating Curve") | |||
| Storage Temp: | -40℃ ~ 85℃ | ||||
| Storage Humidity: | 20 ~ 95% RH | ||||
| Working Humidity: | 20 ~ 95% RH non-condensing | ||||
| PROTECTION | Over Load: | Above 105%-130% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage: | 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V 36V:41.4 ~ 48.6V 48V:55.2~64.8V |
||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | ||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015 | |||
| Withstand Voltage: | I/P-O/P:3.75KVAC | ||||
| Harmonic | EN61000-3-2 Class C EN61000-3-3 | ||||
| EMI: | Compliance to EN55015 | ||||
| EMS: | compliance to 61547:2009 | ||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | |||
| Size: | 190*48*30mm | ||||
| Weight: | 1066g / pcs | ||||
| Packaging: | 15PCS/CTN | ||||
