Hydraulic Brake Master Cylinder Assembly 46100-S9A-A01 Brake Wheel Cylinder
Hydraulic Brake Master Cylinder Assembly 46100-S9A-A01 Brake Wheel Cylinder
Specifications:
| 1. OEM No.: | 46100-S9A-A01 |
| 2. Part Name: | Brake Master Cylinder |
| 3. Model: | Honda CRV RD5 RD7 K24A1 2.0 2.4 |
| 4. Size: | OE Standard |
| 5. Condition: | New |
| 6. Warranty: | 1 Year |
| 7. Package: | Box |
Applicable Model:
| Model | Year |
|
|---|---|---|
| CR-V | 2004 |
|
| CR-V | 2003 |
|
| CR-V | 2002 |
|
What is Brake Master Cylinder?
The master cylinder is the heart of the brake's hydraulic system. It converts the force exerted on the brake pedal into hydraulic pressure to apply the brakes. Depressing the brake pedal moves a push rod in the master cylinder. Mounted on the push rod are a pair of pistons (primary and secondary) in tandem (one after the other) that exert force against the fluid in the master cylinder bore. The pressure created displaces fluid through the various brake circuits and lines to each of the wheels and applies the brakes.
How does Brake Master Cylinder Work?
As piston(s) move along the bore of the master cylinder, this movement is transferred through the hydraulic fluid, to result in a movement of the slave cylinder(s). The hydraulic pressure created by moving a piston (inside the bore of the master cylinder) toward the slave cylinder(s) compresses the fluid evenly, but by varying the comparative surface-area of the master cylinder and/or each slave cylinder, one can vary the amount of force and displacement applied to each slave cylinder, relative to the amount of force and displacement applied to the master cylinder.
1. Used good raw material and advanced technology ensure high quality.
2. High quality makes sure long usage life.
3. Various types and different car models can provide.
4. If we have the required model brake master cylinder in stock, we can provide to you; but customer need pay for the sample fee and freight charge (or customer just arrange the express courier come to pick up).
About us:
Our company specialized in auto spare parts over 15 years, supply all kinds of auto parts with rich experience , proven technique. Especially for chassis parts: engine mount, control arm, brake pads, brake disc, brake caliper, bearing , hub bearing, steering rack , tir rod end, rack end, ball joint, etc. and electrical parts: sensor, clock spring, window switch, spark plug, ignition coil, injector, fuel pump, etc. and lots of HONDA spare parts for Accord, Civic, Crv , Fit, City, Odyssey. Also body parts for BMW.
We are looking forward that more and more oversea friends join in our family for further development in spare parts!

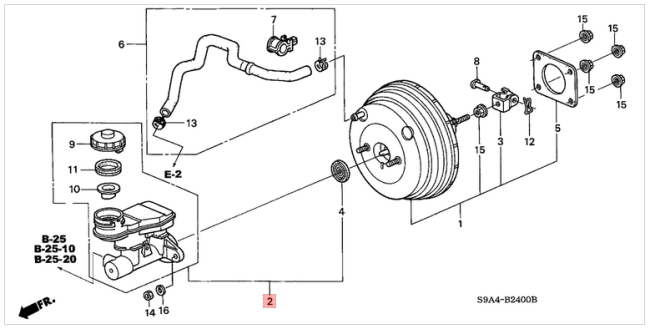

Picture Reference: No.2
