Hand Valve Control Hydraulic Metal Scrap Baling Machine For Light Metal
100ton press force Push out Hydraulic Scrap Steel Balers for light metal
1. Product:
This Y83/T-100 Push out scrap steel balers are mostly applied in the metal smelting factory and scrap metal recycled station with low requirement on production. It is the smallest one among our metal baling presses. Operated manually, this product makes the bale in small size of 200×200mm convenient for moving and smelting. The bale is extremely suited to be sent to the metal smelting furnace in small size with high efficiency, improving the smelting speed. More information about the scrap metal baler will be obtained from our sales group.
2. Technical Parameters:
| Scrap Steel Balers-Side Push out | |
| Model | Y83/T-100 |
| Cylinder pushing force | 100 ton |
| Maximum working pressure | 25MPa |
| Compress room size | 1000×600×500mm |
| Bale dimensions (L×W×H) | 200×200mm |
| Motor | 11kW |
| Capacity | 2-3ton/h |
| Theoretical dry cycle time | 100 sec. |
| Max. thickness can be press | 2-3mm |
| Operation method | Hand Valve Control |
| Bale discharging method | Push out |
| Baler dimensions (L×W×H) | 3500×2800×1650mm |
| Weight | 4000KG |
3. Description:
1) This side push out baler adopts the hydraulic drive system, reasonable design and compact structure. It is characterized by small volume, light weight, small inertia of movement, low noise, high moving stability, operating flexibility and other strong points.
2) With the incorporated hydraulic and electrical control, this machine is user-friendly and it is easy to realize the overload protection.
3) It is well adapted to different working conditions and has wide applicable range, like processing equipment in the metal recycling and processing unit, furnace charge processing machine in foundry, etc.
4) Our side push out baler is energy saving, convenient for installation, safe, reliable and efficient while working.
4. Brief Introduction of Baling Process
At first, the waste material for baling should be loaded into the compacting box manually or mechanically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste materials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finishing the baling process.
5. Optional Extra
Conveyor Feeding
Oil heater
Oil cooler
Diesel Engine Drive
6. Applications
Non Ferrous Metals
Coppers
Aluminum Cans
Aluminum Windows
Scrap Aluminums
25 Liter Drums
Tin Cans
Steel Shavings
Aluminum Chips
Aluminum Sheets
Aluminum And Copper Wires

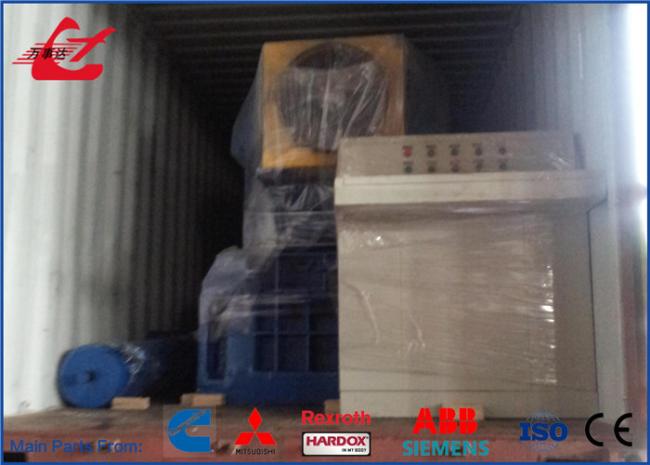

7. Photos:
