Retractable FHD Screen LCD Desk Monitor Lift For Advanced Office System
88mm Thickness LCD Monitor Lift with 18.5 inch Retractable FHD Screen Aluminum Brushed
Introduction:
LCD monitor lift all in once system was advance hidden LCD/LED monitor, touch monitor for audio video conference system in office furniture. Professional retractable data monitor to be integrated into meeting and conference room tables.
The HD screen of monitor lift could be retractable rising up and down vertically. Lifting monitor up from tabletop automatically by controller; Motorized lifting screen down and hidden into under table if finish using. The screen inside the LCD monitor lift mechanism would be power off if down to bottom accordingly; screen will be power on automatically if reached the top.
It’s slim all in one design which integrated HD screen with LCD monitor lift,only 7.3cm thickness whole mechanism with 15.6 Inch, 17.3inch and 18.5 inch Full HD brand screen.
Feature:
1, 7.3cm slim design with HD screen, available for 15.6inch, 17.3inch and 18.5 inch.
2, Solid mechanized aluminum brushed hosing in anodized finishing.Upper cover plate in brushed aluminum alloy.
3, 12V step motor with simultaneous drive for multiple movements.
4, Electric powered lift system with variable speed, Vertically silent Operation.
5, Custom Color aluminum anodization. LCD monitor lift is available for aluminum silver, black matte, aluminum gold, oxidation titanium.
6, Desk LCD monitor lift provides protecting function of HD screen monitor by cutting electricity off automatically if reach the monitor lift bottom and powering screen on if reach the top.
7, Screen of motorized monitor lift angle adjustable available from 12 degree to 30 degree as required.
8, Touch switch on top panel, RF remote control which come with monitor lift mechanism; RS232 button with input; control all screen up and down together at the same time.
Customized Option:
| 1 | Touch Screen (15.6/17.3/18.5) |
| 2 | Customized cover plate with microphone |
| 3 | Customized cover plate with USB connector |
| 4 | Customized cover plate with Computer Switch |
| 5 | HDMI cable with input for underneath installation |
| 6 | Housing& cover plate could be anodized in different color |
Application:
LCD Monitor Lift with HD screen all in one system is widely used on conference system, like video conference system, TV conference system, financial analyzing system, advanced office system, lecture and training room with conference table.
Detail Parameter:
| BET | Model No. | BLL-N18.5 |
| Materail | Panel | aluminum brushed Finish |
| Frame | aluminum brushed Finshing | |
| Monitor Shell | aluminum brushed | |
| surface | tempered glass | |
| Dimension | Panel | 558*88*5mm |
| Panel with MIC | 558*88*5mm | |
| Inner panel | 471*34mm | |
| Box | 538*75*605mm | |
| Monitor frame thickness | 8mm | |
| Information | Pitch Angle | 15° / 25° / 35° |
| Switch | up/down/stop | |
| Selection | Color | Aluminum silver |
| Switch | computer /central control | |
| Panel Input | USB/VGA | |
| Monitor | Size | 18.5 LED screen |
| Brand | Samsung | |
| Format | 16: 9 | |
| Resolution | 1920*1080 | |
| Viewing Area | 408.2*229.6mm |

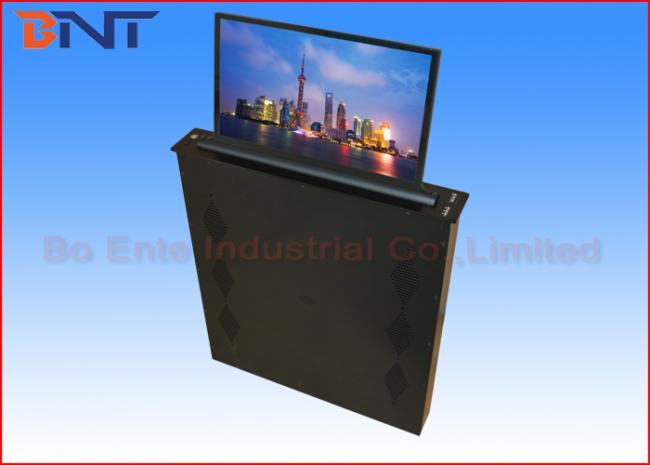

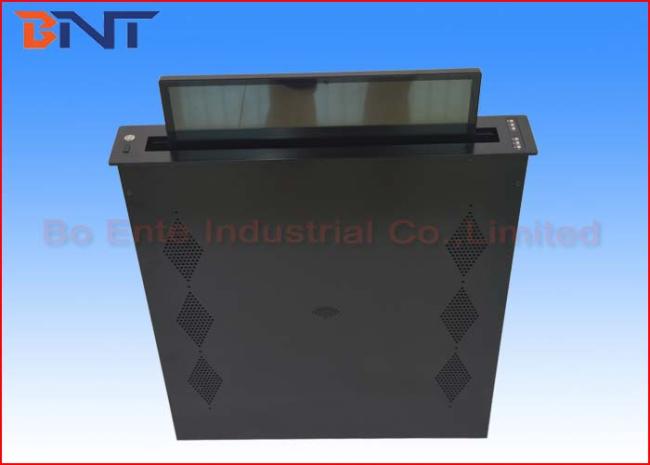

Product Pictures:
