Pop Up Hidden Desktop Power Sockets For Conference Room Table AV Solutions
Aluminum Alloy Drawing Hidden Desktop Power Sockets , Table Pop Up Outlets
Introduction:
Desktop hydraulic pop up socket box is a multi-functional cable cubby for office AV solutions. It integrates audio, video, data, network, electric power into the hidden box. All configuration on desktop socket could be hidden under table if unused and would be pop up via inner hydraulic pressure support. Top panel of socket box is made of aluminum alloy brushed.
After using the manual socket box, Just press the panel cover, the Mechanical Locking Device inside the desktop socket will lock the box.
The tabletop socket can mount on the conference with a flat surface and all connection plug a hidden inside of box. User can press the box panel, then the socket would be pop up via a pneumatic pressure spring pole slowly and smoothly.
Feature:
1. The pneumatic support mechanism is imported from Taiwan, pop up slowly and smoothly.
2. With spring pressure locking mechanism, lock up easily and firmly
3. With 138*60mm connection socket panel, can install all kind of connectors
4. Humanization design of 45 degree pop up angle, the plug can be connected easily and convenience
5. Save more space, and make the office environment durable and beautiful
6. utomatic pop up, inner pneumatic support structure pop up mechanism
7. Socket panel seamless connection to the aluminum surface panel
8. 5mm thickness aluminum alloy panel, not easy to bend and scratch
9. Surface panel with anti-oxidation film, not easy to rust
10. With microphone press button control
Selling Point:
1. OEM with logo on product and packing is available
2. Customized power made with different modules is available, include Universal plug / EU standard plug / UK standard plug / AU standard plug / US standard plug / SA standard plug
3. Configuration could be changed accordingly , supply VGA / HDMI / USB date / USB charger / Audio / Video / RCA / Network / Telephone / Microphone / Cat6 / XLR
4. Quality of desktop socket had approved by CE / ROSH / SASO / UL
5. USB charger and other customized made is available
Specification:
| Model | BP501 |
| Style | Desktop pop up power socket |
| Material | Aluminum alloy brushed |
| Application | Conference room tabletop multiple AV solutions |
| Color | Black (silver is selection) |
| Panel corner | Round |
| Panel size | 209*128mm |
| Box size |
149*119*135mm |
| Cutout size | 200*120mm |
| Top panel thickness |
5mm |
| Pop Up Panel module | 2* Network 1* 3.5 Audio 1* Video 1* VGA 1* Universal power plug |
| Bottom connectors | 2* Network 1* 3.5 Audio 1* Video 1* VGA 1* Universal power plug |
| Surface panel module | 1* Microphone XRL 1* Press button |
| Mechanism | Pneumatic pop up spring |
| Maximum current | <10 amp |
| Use voltage | 110VAC |
| Ambient temperature | -20°C ~ + 40°C |
| Warranty | 12 month |
| OEM/OED | Yes |
| Cosutomized made | Yes |

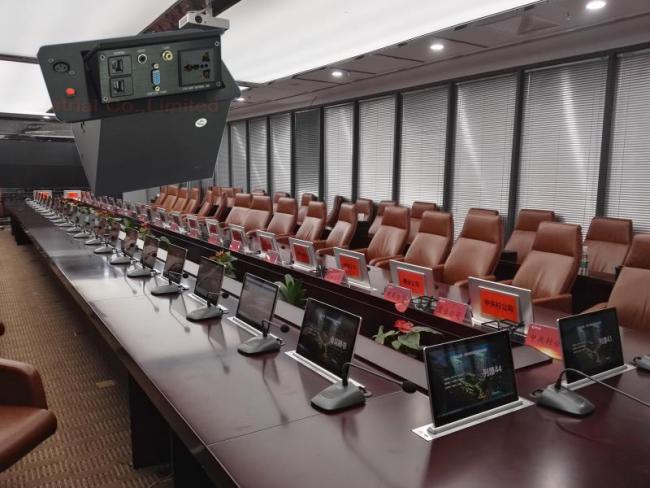

Product Pictures:
