Black Matte Touch Screen Flip Up LCD Monitor Lift For Audio Video Conference
Brushed Aluminum Flip Up Type Computer Monitor Lift Integrated with 17" Touch Screen For Meeting
Introduction:
Computer monitor lift is hidden design for audio video conference system equipment which could make monitor hidden under the table and flip up into the desktop if would like to use for presentation during meeting.
It's smart techologise mechanism which integrated with 17 inch FHD touch screen. Screen could arising up and rotate 120 degrees into the tabletop if user would to present information by wireless controller. Screen could lifting down into the mechanism and hidden table downside if finished meeting. Screen could overturn 120 degree automatically and stop at any position by switch or remote control.
Monitor lift provide a complete monitor lifting issue for conference audio video solutions. It could be controlled by wireless remote, or touch switch on panel, or Crestron central controller, wireless automatically system. All monitor could overturn 105 degree automatically a the sample in group. It realize all audio video solution become paperless office conference system.
Feature:
1, Supplied with highest safe operation protection, mechanism adopt infrared ray sensor to provide safe environment for users. During screen motorized flip up or down, it will stop if stuck by hands, finger, pan or book during operation. And will continue working if barrier get always. So it would protect hands or finger from jammed.
2, electricity supply and shut down design, the screen, keyboard and mouse will be power off once flip down, lifting back to mechanism. And screen, keyboard and mouse will be supplied with electricity if complete open the mechanism.
3, Flip up monitor could integrated with 17inch FHD touch screen for data, image, sound all information presentation.
4, Made of 6mm thick aluminum alloy drawing panel and brush aluminum alloy monitor shell, provided smart, elegant and high grade appearance.
5, Whole complete lifting equipment integrated with 17 inch screen.
6, Complicated with all paperless office system software to realize office audio video equipment wireless automatically control.
Parameter:
| Item series | Computer monitor lift |
| item model | BF2-17A |
| Style | LCD flip up device+Monitor |
| Product consitute | Samsung 17 Inch LED Monitor |
| Material | Aluminum alloy brushed finishes |
| Panel size | 485*405*6.0mm |
| Box size | 468*388*145mm |
| LCD monitor size | ≤359*296*15mm |
| Panel Cutout size | 487*407*6.0mm |
| Case Cutout size | 472*392*142.5mm |
| Overturn Angle | 100-120° |
| Voltage | 220V/50HZ |
| Power | 15W |
| Single trip time | 25s |
| Working temp | 5~40 |
| Environmental temp | 20~60 |
| Related humidity | 20~80% |
| Color | Brushed silver/ black matte |
Application:
It’s widely used in audio video conference system, military command, multimedia education and finance analysis. It provides a convenient and advance solution for meeting, particularly for enormous information presentation, like data, image, sound ect.

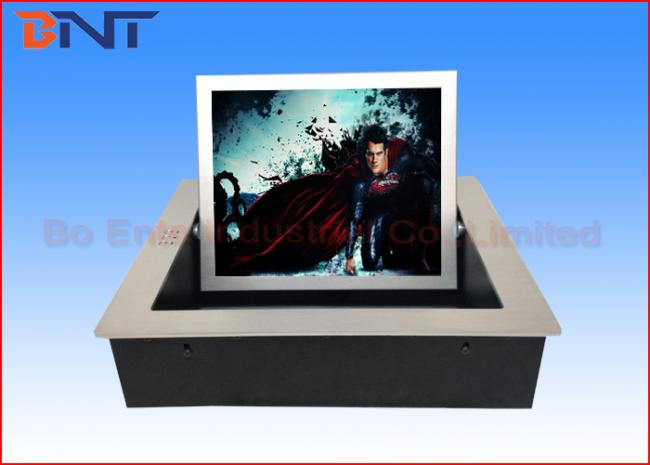

Product Pictures:
