IP20 Pneumatic Pop Up Counter Outlet For Conference Room / Home Furniture

Pneumatic Pop Up Power Socket Outlets with USB Charger for Conference Furniture

Introduction:

Table pop up socket is a vertical pull up socket, it’s most popular in the kitchen tabletop and office worktop solutions.

All the socket can be hidden under the table and save the space of users’ table. People can press the 9cm circle top cover and pull up the outlets vertically. The top of pop up parts can mount on the table through the rotary fixing clip and the bottom of socket has 1.5 meter extension connection cable plugs and connectors, user can connected easily.

Pop up socket is suitable for conferencing room, office desk, cabinet, tabletop board, showing room, decoration of family , stage or other places, which integrates power socket and the light current interface in the same product.

Feature:

1. Spiral upward fixing clamp, can suit with different desktop thickness

2. 11.5cm circle helicoidal, the socket can be mounted on the table firmly

3. Inner pressure type spring pop up mechanism , the top can pop up 1 ~ 2cm

4. With bottom fixed part, the socket can be fixed at the specified height, not easy to fall down

5. 7cm thickness socket panel, suitable for different standard outlets

6. With flat socket panel, all power plugs and connectors are neatly arranged

7. Plastic top pop up panel with good touch and protecting electrifying

8. High quality aluminum alloy shell with grounding design, avoid the user get an electric shock

9. All the cables are passed through at the bottom of the socket to keep the table tidy

10. With regular 1.2m cable lines, all with male connector for convenient use

Selling point:

1. USB charger system can be support with different input voltage and output charging current

2. Cable length are available with different length to 1.0m ~ 5m

3. Cable connection plugs can be changed with different standard

4. Changeable combinations, modules can be customized as you need accordingly

5. With CE / ROSH / UL / SASO approved

6. OEM/ODM and logo request is available ​

Parameter:

Product items:                          Pop up socket

Style:                                        Kitchen vertical pull up outlets

Item no.:                                   PP-302

Color:                                       Silver top panel, silver shell and black plate

Material:                                   Aluminum alloy metal shell and plastic top pop up panel

Outlet way:                               3 ways

Switch:                                     Available as request

Power outlets:                          2* Universal power outlets

Other function:                         2* USB charger

Product size:                            33*10*10cm

Top panel size:                        9cm circle cutout hole

Cable length:                           120cm

Rated current:                         10 ~ 16 amp

Grounding:                              Standard grounding

Application:                              Residential / General-purpose

Top panel thickness:               10mm

Rated voltage:                         110V ~ 240Vac / 50Hz

Fuction:                                   Conference room table furniture

Package:                                 15 pcs/ctn

Packing dimension:                  64*48*40cm/ctn

Weight:                                    24 kgs/ctn

Warranty:                                 12 month

OEM / ODM:                             Yes

Configuration selection:           VGA / HDMI / USB date / USB charger / Audio / Video / RCA

                                                Network / Telephone / Microphone / Cat6 / XLR

                                                Universal plug / EU standard plug / UK standard plug

                                                AU standard plug / US standard plug / SA standard plug

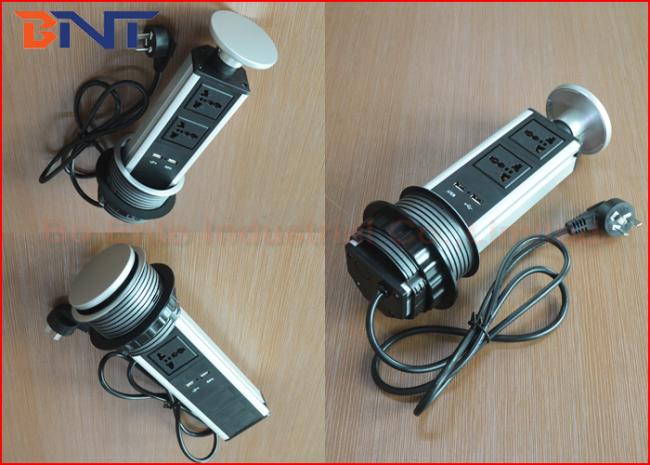

Product Pictures:
