All In One Computer LCD / LED Monitor Screen Motorized Pop Up Lifting Mechanism 21.5 Inch
All In One Computer LCD / LED Monitor Screen Motorized Pop Up Lifting Mechanism 21.5 Inch
Introduction:
Integrated 21.5 inch FHD screen LCD monitor Lift system is designed for advanced audio video conference system. The LCD monitor lift screen ordinary hidden on the meeting table to keep the tabletop even and neat; when multimedia meeting, the monitor can be lift up separately. All LCD display the multimedia information including meeting content, information hint and picture information,sound, video and audio.
All-in-one computer monitor lifting up mechanism is a multifunction paperless interactive conference office system. This mechanism integrated with conference room meeting exhibition audio-visual function and office working computer function together. It's the modern office system. Users can achieve meeting and office integration.
Application:
It is widely used for video conference system, TV conference system, and financial analyzing system and other commercial office or meeting room. Workable with central control, microphone, and other office equipment, paperless office software for office audio video solution.
Features:
1, Made of 5mm thick aluminum alloy drawing panel and brush aluminum alloy monitor shell, provided smart, elegant and high grade appearance
2, Smart circuit board offer monitor protection, monitor could be power on once arrived the desktop, and be power off if reach the bottom automatically.
3, Supply with full metal aluminum alloy shell FHD 21.5 inch LED monitor screen.
4, Perfectly matched, closely coupled mechanical structure design, working smoothly and quietly during operation. Low noise which less than 30db.
5, Superior gear appliance with double rack to ensure steady and reliable lifting for screen without damaged.
6, Complicated with AMX/Crestron and wireless network control
7, Supply with office working computer hidden inner the lifting box.
8, Onboard AMDT56N dual core 1.6G CPU, AMD Hudson M1 chipset, DDR3 memory, 4G, 32G solid state hard disk, 4*RS232 serial port, where COM4 supports RS485/422S mode, 6*USB.

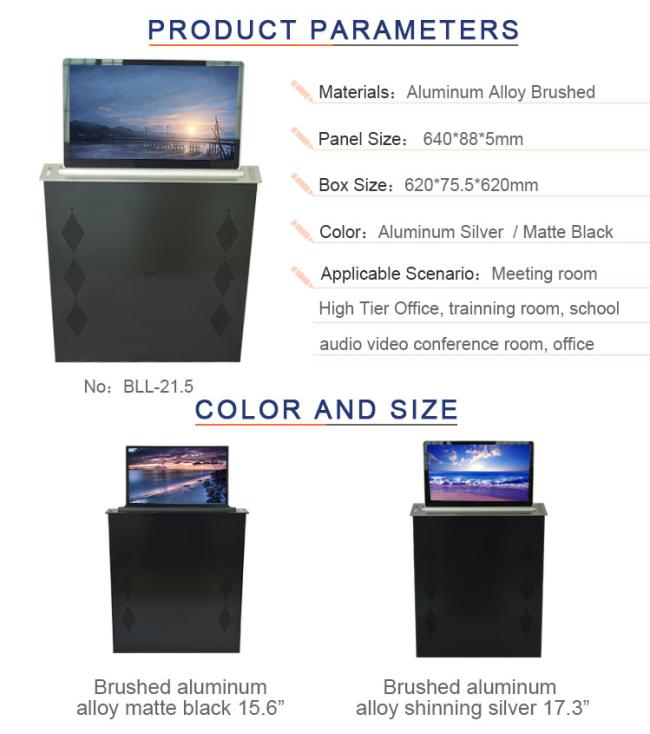

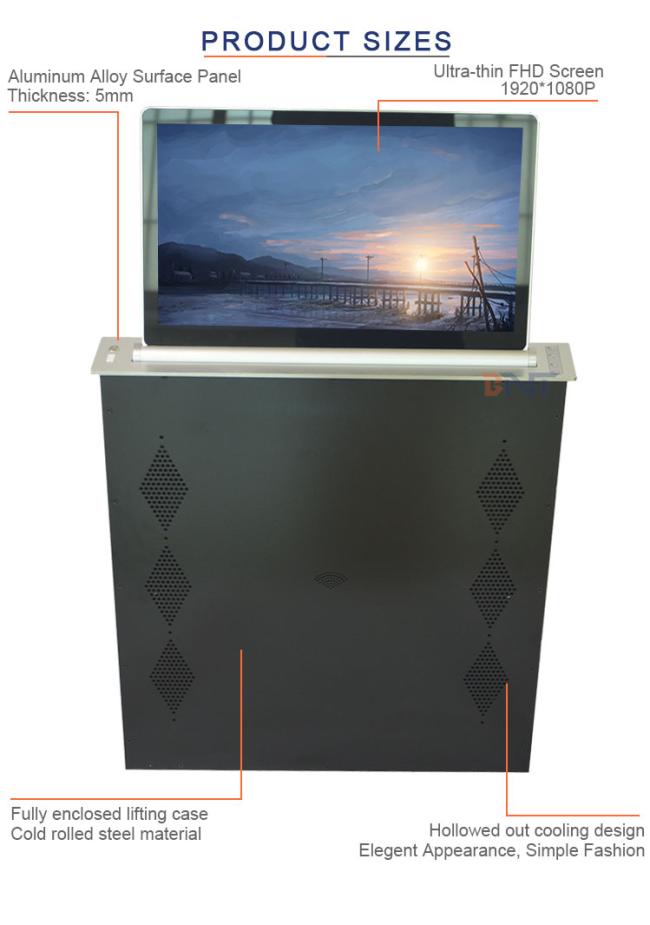

Specification:
| Product | Ultra-thin LCD Monitor Lift with screen |
| Screen | Full metal aluminum alloy HD screen |
|
Model No. |
BLL-21.5 |
| Materail | Brushed aluminum alloy |
| Color | Silver |
| Panel Size | 640*88mm |
| Panel Thickness | 5mm |
| Box Size | 675*620*75.5mm |
| Monitor | 21.5" FHD LED screen |
| Monitor Thickness | 11.5mm |
| Resolution | 1920*1080 |
| Monitor Tilting Angle | 0~45 degree |
| Data Interface | HDMI Input, USB input, RS232 I/O |
| Application | High-class office conference meeting room |
| Rated voltage | 110 ~ 240 VAC |
| Rated current | 5 Amp |
| Rated power |
40 W |
| Contrast ratio | 1000 : 1 |
| Brightness | 250 cd / m2 |
| Colors | 16.7 million (10-bit) |
| Response time | 3.5 ms |
| Angle of view | :85/85/80/80 (L / W / H / H) |
| Frequency | 60 Hz |
| CPU | AMDT56N dual core 1.6G CPU |
| Disk | 32G solid state hard disk |
| Memory | DDR3 memory |

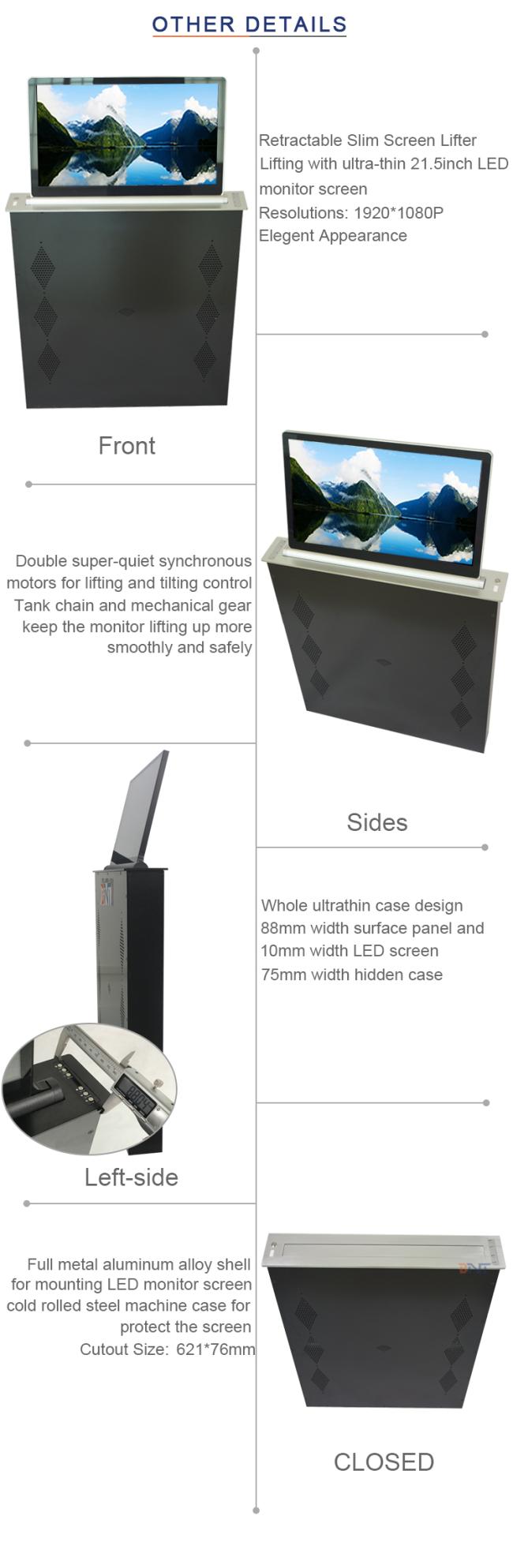

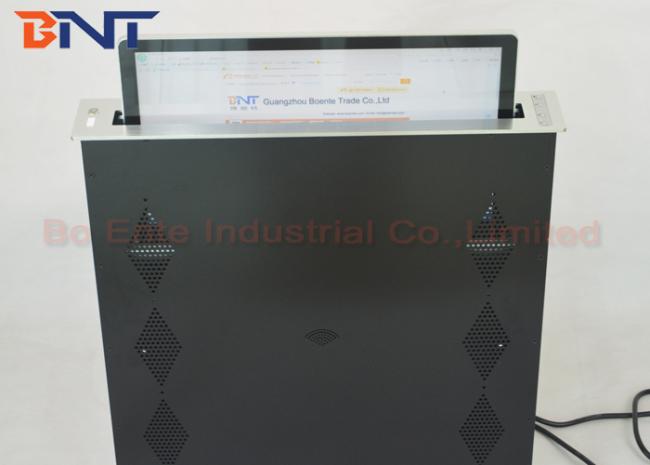

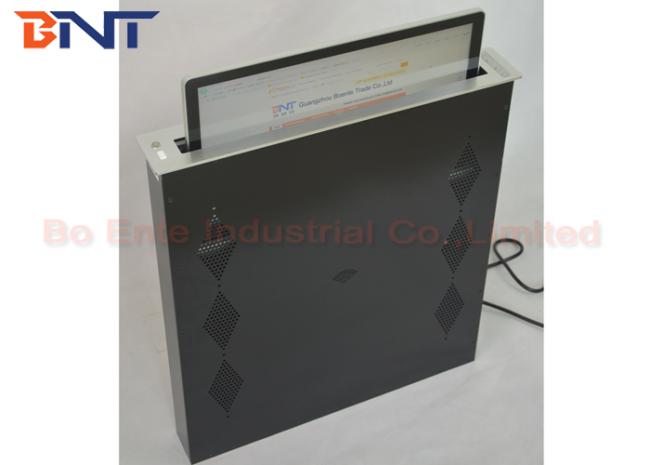

Pictures:
Factory Information:
Boente supplied with 15.6~21.5 Inch monitor lift with HD screen system,15~24 Inch LCD monitor lift, 21~23
inch All In One PC monitor lift, 19~22 inch Motorized LCD lift with 45 degree monitor flip up, 19~22 inch computer LCD lift with microphone, LCD lift with microphone and desktop socket, 17~21 Inch LCD flip up device with monitor, keyboard and mouse.
The quality of all our products had approved by CE& ROSH, SASO.
OEM service with logo is available. On-time shipment, payment protection and product quality protection!
