Aluminum alloy LED / LCD Monitor Screen Lift with Conference Microphone System
Non-simultaneous interpretation LED / LCD Monitor Screen Lift with Conference Microphone System
Introduction:
BNT LCD monitor lift mechine device, is a new office conference furniture furniture. This mechine is consisting of slim LED monitor screen, conference microphone and the automatically lifting mechanism. It is mounting on the conference table and connected to the computer. Do not pile up many monitors on the desk, no need to worry about the theft or damage of the display. The LED monitor screen is hidden under the table surface when didn't used, at the same time, it also ensures that the table top is clean and beautiful and saves space. The utility model has the functions of theft prevention, dust prevention, keeping the table top smooth and beautifying the tabletop.
It is widely used for video conference system, TV conference system, and financial analyzing system and other commercial office or meeting room. Workable with central control, microphone, and other office equipment, paperless office software for office audio video solution.
Features:
1, Made of high-quality matel material, the screen monitor shell and the surface panel are making with aluminum alloy material.
2, Simply and compace design, legent appearance and smart operation, high-end and classy.
3, High-thickness surface mounting panel, can capacity over 30 kg weight and keep the surface smooth and beautiful.
4, Hihg-quality touch screen, made with full aluminum metal shell and matrix active TFT screen, also supply with multi-touch capacitive screen.
5, Supply with non-simultaneous interpretation conference microphone, can supply with AMX/Crestron conference paperless control system.
6, High torsional moment, super quiet synchronous motor, can loading over 25 kg weight screen lifting up without sounds.
7, Slim whole product design, all the product with screen and microphone thickness less than 9 cm.
8, Multi-control way design, supply with manual control, RS232 / RS485 control, wireless remote control and center control.
9, Super security electric design, all matel parts are connected to the grounding and prevent the electric shock away.
10, Electronic security approved, whole product are certificated of CE EMC and LVD.

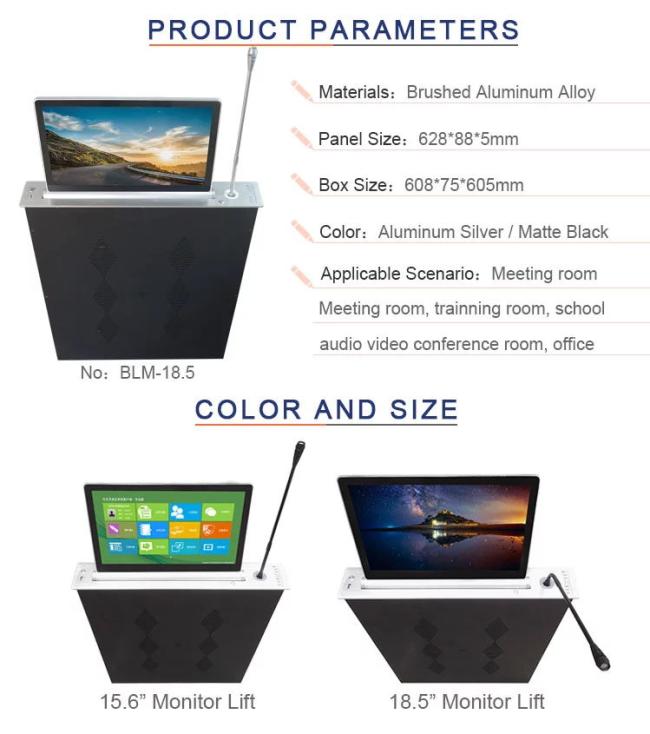

Specification:
| Product | Ultra-thin LCD Monitor Lift with screen |
| Screen | Full metal aluminum alloy HD screen |
|
Model No. |
BLM-18.5 |
| Materail | Brushed aluminum alloy |
| Color | Silver |
| Panel Size | 628*88mm |
| Panel Thickness | 5mm |
| Box Size | 675*620*75.5mm |
| Monitor | 18.5" FHD LED touch screen |
| Monitor Thickness | 11.5mm |
| Resolution | 1920*1080 |
| Monitor Tilting Angle | 0~45 degree |
| Data Interface | HDMI Input, USB input, RS232 I/O |
| Application | High-class office conference meeting room |
| Rated voltage | 110 ~ 240 VAC |
| Rated current | 5 Amp |
| Rated power |
40 W |
| Contrast ratio | 1000 : 1 |
| Brightness | 250 cd / m2 |
| Colors | 16.7 million (10-bit) |
| Response time | 3.5 ms |
| Angle of view | 85/85/80/80 (L / W / H / H) |
| Frequency | 60 Hz |
| Warranty | 12 month |
Factory Information:
Boente supplied with 15.6~21.5 Inch monitor lift with HD screen system,15~24 Inch LCD monitor lift, 21~23
inch All In One PC monitor lift, 19~22 inch Motorized LCD lift with 45 degree monitor flip up, 19~22 inch computer LCD lift with microphone, LCD lift with microphone and desktop socket, 17~21 Inch LCD flip up device with monitor, keyboard and mouse.
The quality of all our products had approved by CE& ROSH, SASO.
OEM service with logo is available. On-time shipment, payment protection and product quality protection!
