17.3" Screen Conference Table Motorized Monitor Lift With Anti Pinching Hand Protection
Lift 17.3" Screen Conference Table Monitor Lift With Anti-Pinching Hand Protection
Introduction:
BNT brand motorized retractable monitor was design by Boente factory since 2015 years, Boente factory had manufacture monitor lift over 12 years at present. Boente major manufacture monitor lift, lifting display equipment which build with monitor, touch screen, camera, microphone, PCU and double monitor.
LCD monitor lift was advance hidden LED monitor, touch monitor for audio video conference system in office furniture.
Professional retractable data monitor to be integrated into meeting and conference room tables.
The FHD screen of monitor lift could be retractable rising up and down vertically.
Lifting monitor up from tabletop automatically by controller;
Motorized lifting screen down and hidden into under table if finish using.
The screen inside the LCD monitor lift mechanism would be power off if down to bottom accordingly;
screen will be power on automatically if reached the top.
It’s s whole system design which integrated FHD screen with motorized lift.
Only 8.8cm thickness whole mechanism with 15.6 Inch, 17.3inch and 18.5 inch,21.5 inch FHD Samsung brand screen.
Product Compatibility:
BOSCH digital conference system
AMX, Crestron, Extron or other 3rd party central control system
WIFI network control system
Office paperless conference system
CISCO or other 3rd Network video System
Product Specification:
| Product name | motorized retractable monitor lift |
| Model No. | AML-17.3 |
| Material | full aluminum alloy |
| Panel Size | 490*80mm |
| Case Size | 473*71*600mm |
| Panel thickness | 5mm aluminum panel |
| Integrated monitor | 17.3 inch LED screen |
| Resolution | 1920*1080 |
| Screen Size | 418*259*5mm |
| Screen Tilt Angle | Automatic 0-15 degree /Electricl adjustable 0-30 degree |
| Color | brushed aluminum silver / aluminum black matte |
| Connection Interface | HDMI, USB, RS232 I/O |
| Panel Button Detail | UP/DOWN/STOP for monitor operation |
| Titt /back for angle adjustable | |
| Adjust brightness and color for screen | |
| Signal switching for HDMI to VGA | |
| Integrated item selection | full HD touch screen |
| conference system discussion/video/voting microphone | |
| full HD camera | |
| smart AIO PC | |
| office automatic paperless system | |
| N.Weight | 10.5kgs |
| Power Supply | 220V/50HZ, 110v/60HZ |
| Max Power | 28W |
| Service Life | Above 20000 times |
| Working Sound | Less than 15 decibels |
| Certification | CE,ROHS, IECC, CB, FCC,Sebar |
| Control Method | button on top panel, remote control, central control, wirless ipad network control |
| Product Function | major lift monitor, hidden display monitor on meeting table, automatic lifting monitor up/down/stop accordingly, integrated with microphone, touch screen, PC and camera for audio video conference solution |
| Application | conference room, meeting room, trainning room, boardroom, Army command room, Presidential election room, news release seminar room,school Academic seminar room,office senior executive meeting room, hotel |

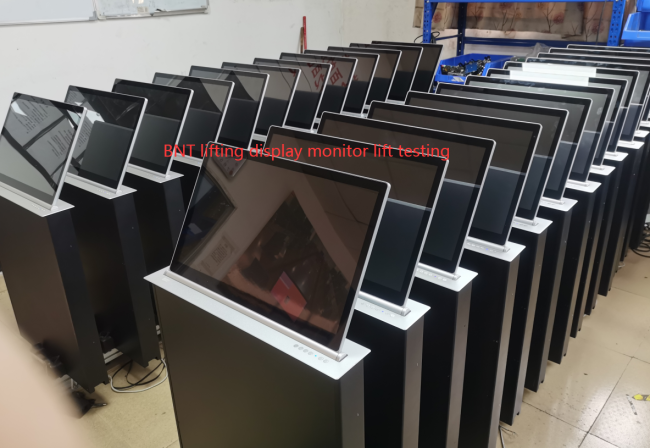

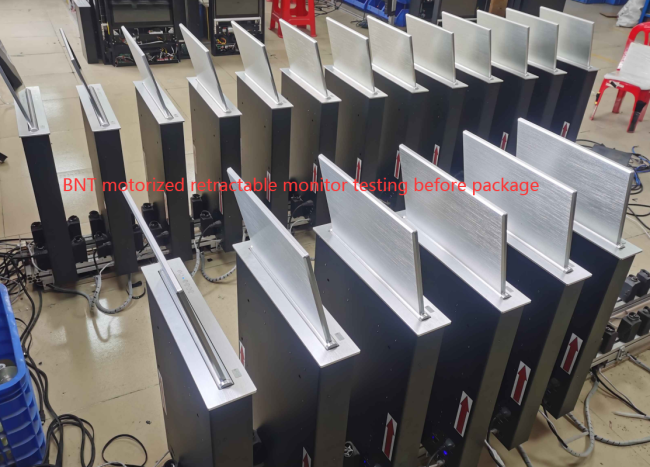

Product Shows:

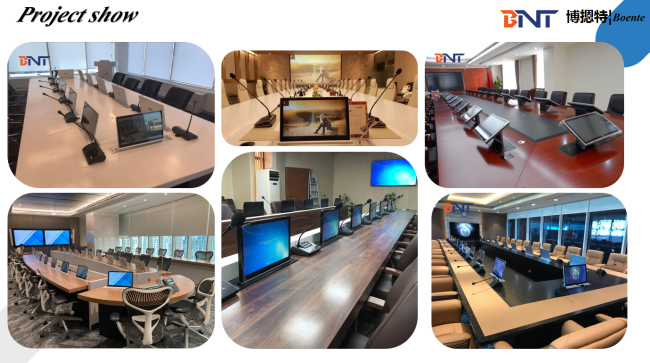

Projects Shows:
