BNT smart Electric LCD monitor lift motorized lift for Conference System conference room screen lift

Introduction:

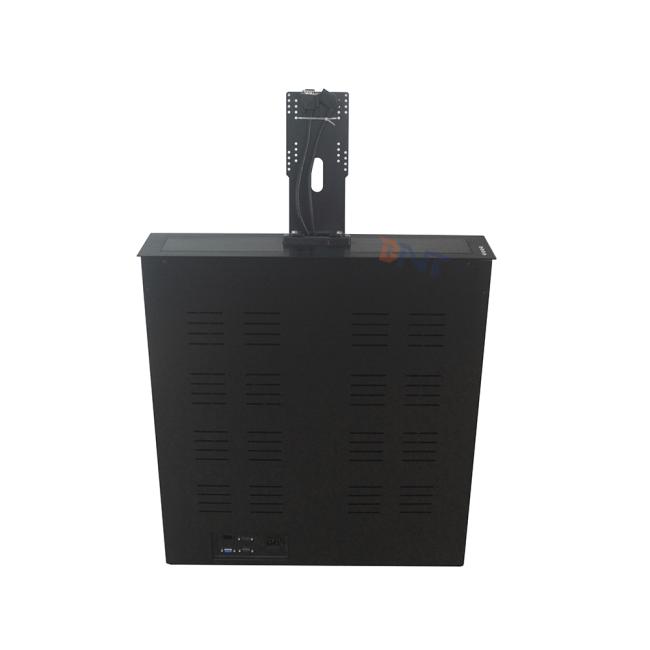

The BBL-22 LCD monitor lift is an advanced hidden device designed for audio and video systems.
It fits 22-inch monitors of different brands through a universal mounting panel.
The BBL series provides different size LCD lifters for different sizes of displays, 17 inches, 19 inches, 22 inches, and 24 inches.
usable.
Through the touch switch, remote control or central control electric control, the screen can be raised from the conference table
The available picture is automatically presented by the elevator drive.
After use, the screen will automatically drop until it is hidden on the desktop, and then automatically power off protection
Screen.
Double super quasi-synchronous motors, lift up and down through the fuel tank chain and mechanical gears, the lift is stable and quiet
when working.
Widely used in conference systems, video conference systems, video conference systems, financial analysis systems, advanced office
System, lecture and training rooms, equipped with conference tables and computer tables, etc.

Selling point:
1. All aluminum alloy finish, corrosion resistance, wear resistance, smooth surface, not easy to scratch.
2. Fuel tank chain and mechanical gear drive, good quality, stable and quiet work
3. Hidden design, save more space and create a modern office environment
Adjustable angle of 4.0-15 degrees, providing users with perfect viewing angle
5. Work smoothly and quietly. Low noise less than 30db
6. LCD display automatic power-off protection function
7. Control system: LCD electric lift panel touch switch, RF remote control, RS232 and RS 485 central control..
8. The power plug and voltage can be changed according to user requirements

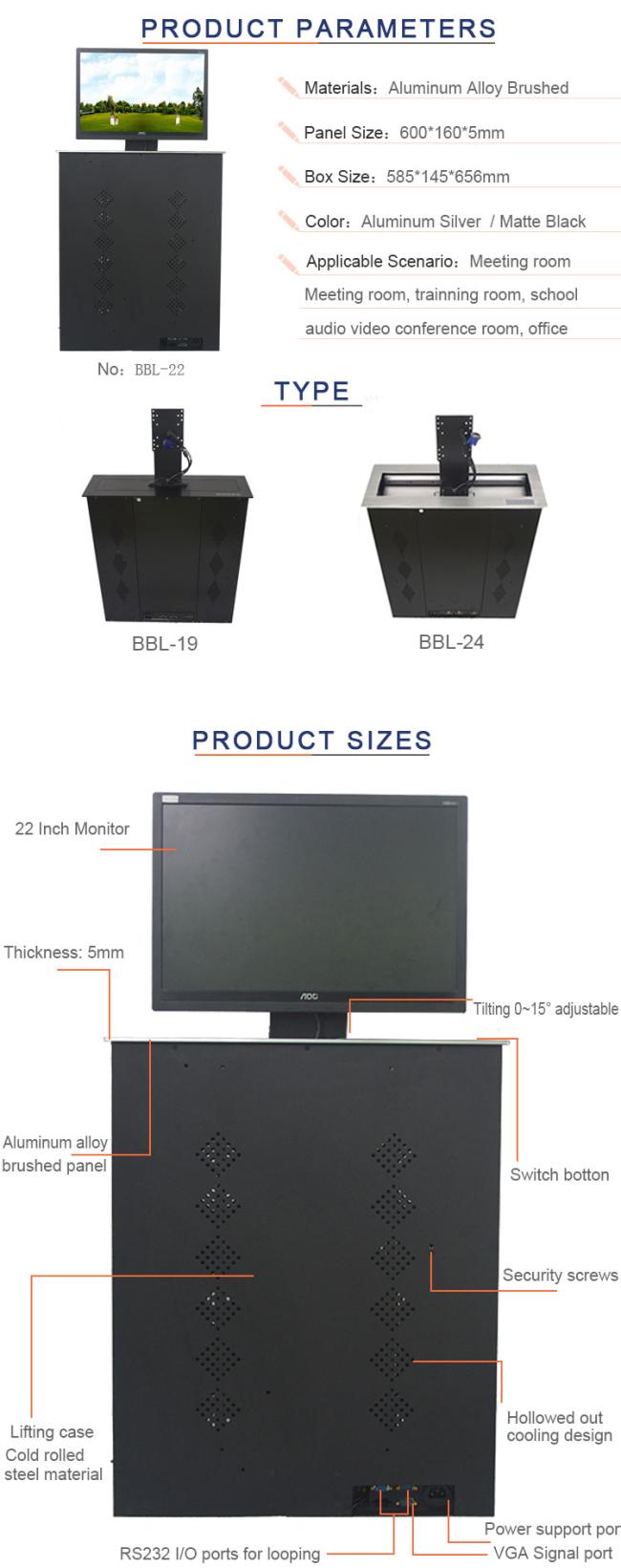

Production Datasheet:
