P10 Flexible Soft Outdoor LED Curtain Display Screen With Abnormal Shapes

Price Negotiable

Price: negotiable

MOQ: negotiable

Delivery Time: 15~20 working days after deposit received

Brand: Shenzhen LED World

Product Description

P10 flexible soft outdoor LED curtain display screen with Abnormal Shapes

Product description:

SMD led encapsulation confirm wide view angle and light weight；
Widely used for stage, concert, show, banquet, wedding, rental display, also can be fixed as a display video wall;
Cabinet size can be customized accordint to the ordered screen size,and with different costs,please contact us for details;
Smartly hidden cables, no tangled cables at the back of the cabinet;
High definition,smooth and good quality vision；
Rental design with locks and aviation plugs,easy to install and dismantle;
Can be fixed on the wall or window or for rental to meet the request of live broadcast, live meeting, banquet, party, stage etc;
Mesh design for good heat dissipation,good light transmission,light weight;
Good waterproof IP65, long life span>100000Hours;
High quality lighting parts with special PCB Board design, confirm good display and long life span.

Parameter:

P10 Soft LED Screen Specification
Pixel pitch	10mm
Pixel Configuration	1R1G1B
LED component	SMD3535
Size of module	320mm x 80mm x 18mm
Resolution of module	32x8dots
Size of cabinet	320 x 1280 x 38mm
Resolution of cabinet	32 x128dots
Transparency	15%
Weight of cabinet	12.5KGS
Brightness	>=3000cd/sq.m
Density	10000dots/sq.m
Best viewing angle	140 /120
Best viewing distance	>10 M
Maximum power consumption	<400W/sq.m
Average power consumption	<150W/sq.m
Driving method	1/8 scan
Control method	Synchronization
Gray scale	16bits
Colors	16.7Million
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC220V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	50/60Hz
Refresh frequence	>1920Hz
IP grade	IP65
Life Span	100,000 hours
Data transafer method	RJ45
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)	Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

Factory visiting and inspecting is welcome;
Service principles: Response in time, solve problems as soon as possible and ensure the use;
Aging test at least 24 hours before shipment;
Allow free training .You can send your engineer to our factory for training untill he knows all the operation；

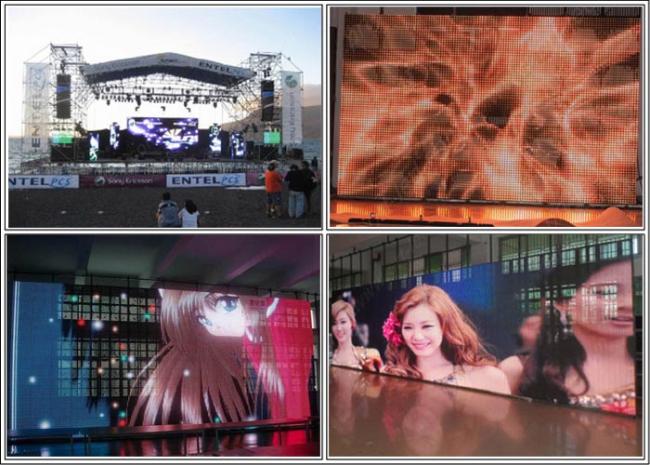

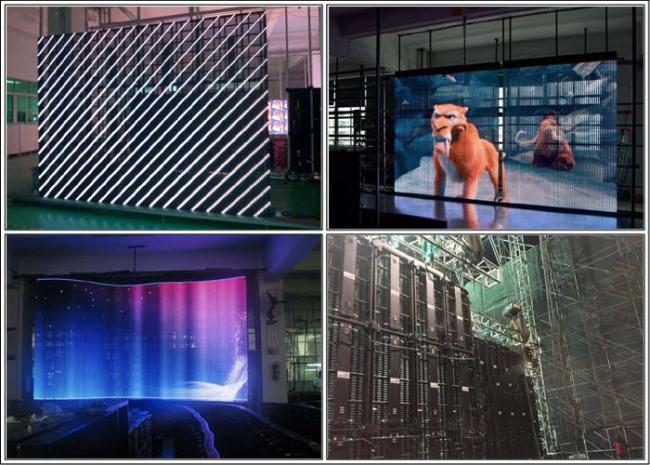

Project case:

Product detail:
