Indoor Led Video Curtain Rental 12.5 Pixel Pitch
Price:
negotiable
MOQ:
negotiable
Delivery Time:
15~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
Product description:
- Long view distance and good uniformity;
- Aluminum cabinets ensure light weight and lasting;
- High lighting penetrated design ensure good ventilation and good heat dissipation ；
- Ultra light & thin;
- Front/back serviceable without tools;
- Can be fixed install or hung for rental, packed with flight case, good protection and easy to move;
- Super thin aluminum cabinet and curtain design minimize cabinet weight,only 10kgs each;
- Can be many different abnormal shapes with magnets and custom-made frames；
- 15% transparent rate, ensure the light- through, smoke-through, sound-through;
- SMD led encapsulation confirm wide view angle, and big pixel pitch ensure the long view distance.
Parameter:
| P12.5 Indoor full Color LED Mesh Screen Specification | |
| Pixel pitch | 12.5mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3528 |
| Size of module | 200mm x 400mm |
| Resolution of module | 16x32 |
| Size of cabinet | 400mm x 800mm x 60mm |
| Resolution of cabinet | 32x64 |
| Material of Cabinet | Aluminum profile |
| Weight of Cabinet | <10KGS |
| Brightness | >2500cd/sq.m |
| Density | 6400dots/sq.m |
| Best viewing angle | 140 /140 |
| Best viewing distance | 10-100M |
| Maximum power consumption | <500W/sq.m |
| Average power consumption | <220W/sq.m |
| Driving method | 1/8 Scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256 x 256 x 256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1500Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
| Distance(without relay) | Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Why choose us:
- On time delivery + patient after-sales service;
- Top quality + reasonable price + patient after-sales service;
- 100% QC inspection before shipping;
- CE,RoHS,FCC, ISO9001;
- Free training is provided for our customers;
- Our products are the CE certified, ROHS compliant, FCC identified;

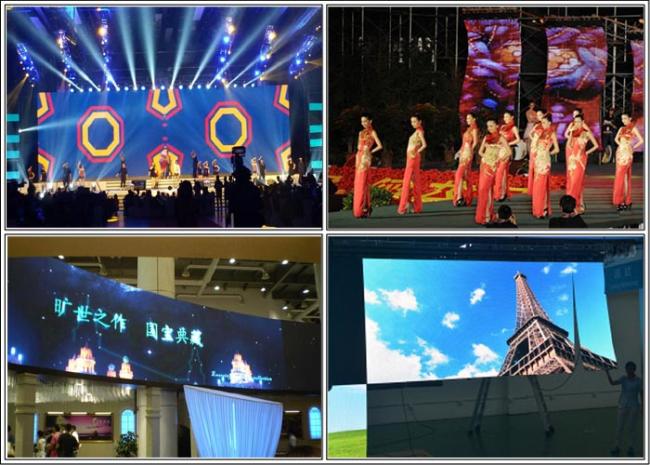

Project case:
