Large Led Screen Curtain , Led Panel Screen Evironment Protection

Price Negotiable

Price: negotiable

MOQ: negotiable

Delivery Time: 15~20 working days after deposit received

Brand: Shenzhen LED World

Product Description

IP65 P16.66 LED curtain display high brightness 7000cd/m2 500mm x 1000mm cabinet

Product description:

Independent driving circuit with super thin power supply;
Aluminum cabinet with light weight and lasting,long life span;
High definition, Good uniformity；
high strength, anti-aging fabrics, IP66 protection grade, can withstand any bad environment test;
Can be fixed install or hung for rental, packed with flight case, good protection and easy to move;
High level: High level protection, front and rear can reach to IP65;
Transparent design, light transmittance up to 25%, good lighting and wind transparent, good heat dissipation,special design for stage background;
Independent driving circuit, equiped slim power supply, no fans no noise,good evironment protection;
SMD led encapsulation confirm wide view angle up 140 degree for horizontal and vertical;
Brightness can be adjusted between 2000 and 4000nits, suit to different request on brightness of inddor and outdoor;

Parameter:

P16.66 Indoor full Color LED Mesh Curtain Specification
Pixel pitch			16.66mm
Pixel Configuration			16.66mm
LED component			DIP346
Resolution of cabinet			30x60
Material of Cabinet			Aluminum
Weight of Cabinet			<8.2KGS
Brightness			>7000cd/sq.m
Density			3600dots/sq.m
Best viewing angle			110 /50
Best viewing distance			16-200M

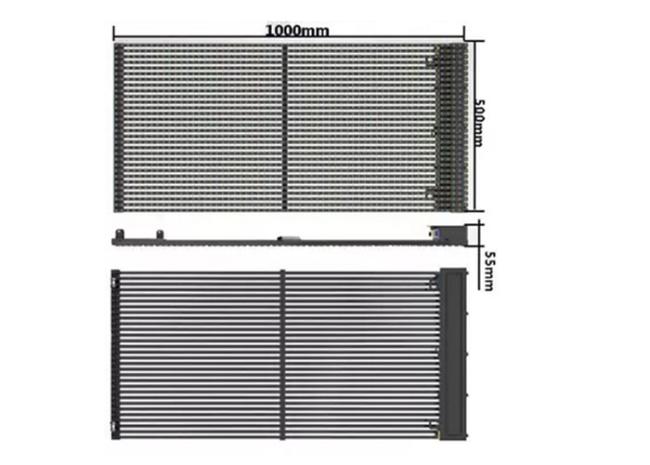

Size of cabinet			500mmx 1000mm x 55mm
Color temperature			3200-9300k
Maximum power consumption			<800W/sq.m
Average power consumption			<300W/sq.m
Driving method			static
Control method			Synchronization
Gray scale			65536
Colors			256256256
Uniformity			97%
Working voltage			AC220V/110V±10%
Working temperature			-20ºC~+50ºC±10%
Working humidity			10% ~ 90%
IP grade			IP65
Life Span			100,000 hours
Data transafer method			RJ45
MTBF			10,000 hours
Frame frequence			50/60Hz
Refresh frequence			>1920Hz
Pratical standard			CCC TUV-CE ETL etc.
Effectivce Communication			Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)			Single-mode optic fiber: 10KM
Accepting signal with video processor			PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform			WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
