High Level Outdoor Led Curtain , Led Video Curtain Rental Nova Control System
Waterproof LED curtain display P33.33 outdoor Static scan nova control system
Product description:
- SMD led encapsulation confirm wide view angle and good stability;
- Multifunctional indoor & outdoor mesh LED ;
- High pixel density, Long view distance, High definition, Good display vision;
- High lighting penetrated design ensure good ventilation and good heat dissipation ；
- SMD led encapsulation confirm wide view distance;
- Transparent design, light transmittance up to 25%, good lighting and wind transparent, good heat dissipation,special design for stage background;
- Widely used for stage, concert, show, banquet, wedding, rental display, also can be fixed as a display video wall;
- Mesh design for good heat dissipation,good light transmission,light weight;
- 500mm cabinet is pieced together easily with 1000mm,helpful for stage design;
- High level: High level protection, front and rear can reach to IP65;
Parameter:
| LED curtain specification | |
| Iten name | M3330D |
| pixel pitch | 33.33 |
| pixel configration | 1R1G1B(DIP346) |
| Cabinet configration/pixels | 15x30 |
| Pixel density/㎡ | 900 |
| Cabinet dimension/mm | 500x1000x55 |
| cabinet material | Die-cast aluminum |
| Cabinet weight/kg | 6.5 |
| Transparency rate | 0-70% |
| Gray level | 16 |
| Color lavel/Bit | 65536 |
| Refersh rate(Hz) | >1920 |
| Driving mode | Static scan |
| Brightness(Nits) | 7000 |
| Horizon viewing angle(°) | 110 |
| Vertical viewing angle(°) | 50 |
| Input voltage(V) | AC110/220v +-10% |
| input frequency(Hz) | 60/50 |
| Peak Power consumption(W/㎡) | 400 |
| Average power consuption(W/㎡) | 120 |
| Storage temperature(℃) | ,-10 to 55 |
| Working temperature(℃) | ,- 42 to 42 |
| Storage humidty(RH) | 10%-90% |
| Working humidty(RH) | 10%-90% |
| Protection level | IP65 front & rear |
| Life span(hours) | 10000 |
| Installation way | Fixed |
| Maintance way | Front & rear |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Our company:
Shenzhen LED World co.,ltd specialized in the development and manufacture of LED display system products.Founded in 2007, with the registered capital 15 millionRMB, owns workshop area 9,000 m2. Branched offices and agents all over China, with about 200 employees.
Main products:single & dual color LED display and full color LED display for indoor/outdoor use.The products can pass CE, RoHS, FCC, IP65, ISO9001 certifications, etc,.
Our technology strength is among the front row in this industries, with a professional team. Strictly quality control, good after sale service and quickly delivery.
Through our efforts, our products have been sold well in Europe, North/South America, Australia, the Middle East and Southeast Asia. Welcome to contact Shenzhen LED World today!

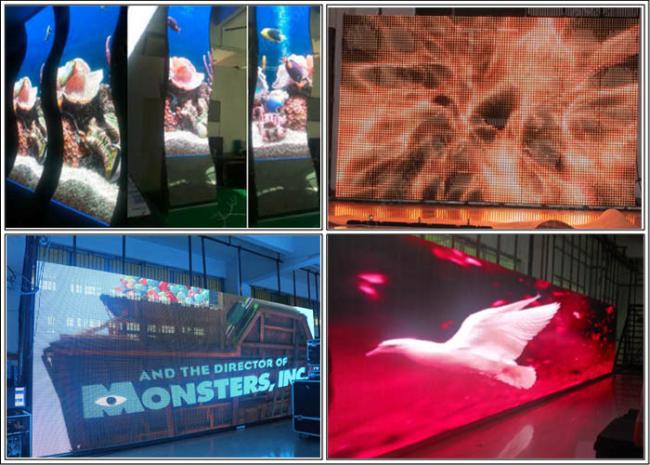

Project case:
