P20 Indoor Full Color Led Display Rental Aluminum Cabinet Material
P20 LED Curtain Wall full color indoor display screen Aluminum cabinet material
Product description:
- SMD technology with 3535 black lamp, confirm wide view angle 120 ° for vertical and horizontal,and high contrast ratio 5000:1；
- Super thin aluminum cabinet and mesh design minimize cabinet weight;
- SMD led encapsulation confirm wide view angle and light weight；
- Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, event stage etc;
- Widely used for commercial led display, stage led display, rental led display,advertising led display, message board etc;
- low wind resistance: because the screen is part of the hollow body, reduce wind resistance, and can save cost structure;
- Can be fixed installation or hungl to meet the request of live broadcast, live meeting, banquet, party, stage etc;
- Can be fixed installation or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, stage etc;
- Streamline design and beautiful appearance;
- Module design make the cabinets light weight and superthin,easy to install and maintain;
- Flexible modules can be many different abnormal shapes with magnets and custom-made frames.
Parameter:
| P20 Full Color LED Mesh Main Parameters | ||
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 20 |
| Pixel Density | Dots/sq.m | 2500 |
| Pixel Configuration | SMD3528 | |
| Cabinet Resolution | dots | 48×48 |
| Refresh Rate | Hz | ≥1200 |
| View Angle(H/V) | ° | 120/120 |
| Brightness | nits | ≥800 |
| Gray Scale | Bit | 687Million |
| IP Rating | 43 | |
| Power Consumption(Max/Avg) | W/sq.m | 250/100 |
| Input Voltage(AC) | V | 110~220 |
| Modular Characteristics | ||
| Cabinet Size(W×H×D) | mm | 960×960×36 |
| Cabinet Material | Aluminum | |
| Cabinet Weight | Kg | 10 |
| Module Size(W×H) | mm | 320×320 |
| Environment | ||
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity | 10%~90% | |
| Driving Mode | 1/4 Scan | |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Our company:
Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.
Through the efforts and collaboration of all employees of the company, the products are exported to Europe, North America, Australia, the Middle East, and the establishment of a stable distribution agents in the respective regions. Company in good faith with the talents and distribution to join the LED display system and common development, and make due contribution to the development of LED display system.

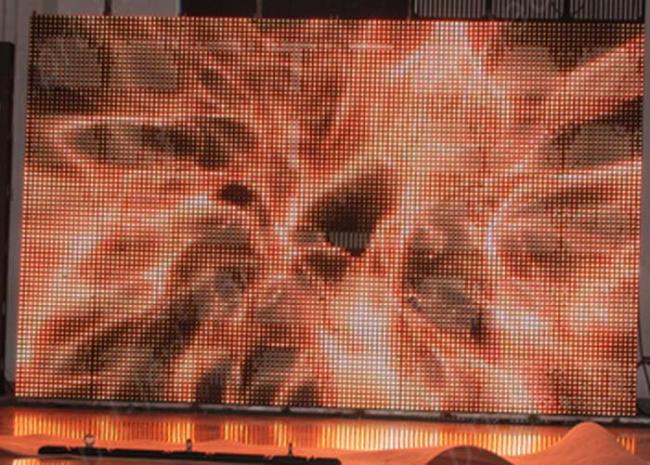

Product aging:

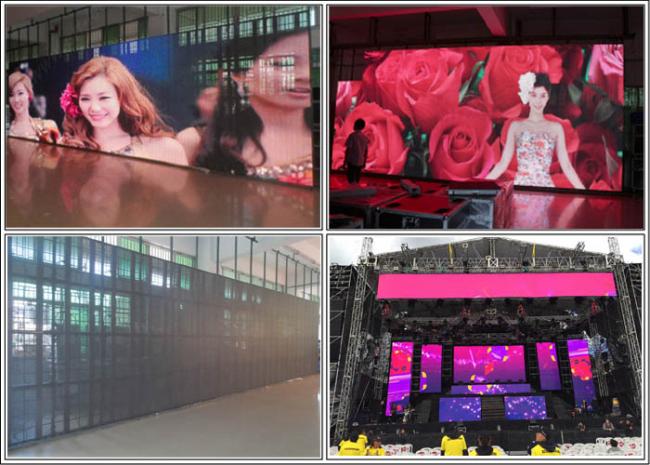

Project case:
