Dustproof Design Led Stage Panels , Large Led Panels For Stage
2 mm High definition OEM LED stage display 1/16 scan high refresh
Features:
- Use leading technical MBI5153 driver IC:high grey level,high refresh rate and low brightness to ensure the LED display to appear more perfect image;
- "High-Gray Scale;
- Real 20bit;"
- Front/back serviceable for modules;
- Cabinet Size 480mm*480mm White balance Brightness 800cd/㎡ 800cd/㎡ 800cd/㎡;
- Small pitch,high definition,and wide viewing angle;
- Ultra light & thin,only 7 kg/cabinet;
- Dustproof design, the screen is rated IP31;
Our company:
Our company technology strength is among the front row in this area, with a vigorous team.
usage: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.
Main markets in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, has set up stable sales agents in the corresponding areas.
Through the efforts and collaboration of all employees of the company, the products are exported to Europe, North America, Australia, the Middle East, and the establishment of a stable distribution agents in the respective regions.
Parameter:
| Pixel pitch | 2.0mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD1010 |
| Size of module | 160mm x 160mm |
| Resolution of module | 80x80 |
| Size of cabinet | 480mm x 480mm x 78mm |
| Resolution of cabinet | 240x240 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | about 7KG/cabinet |
| Brightness | >1000cd/sq.m |
| Density | 250000dots/sq.m |
| Best viewing angle | 140 /140 |
| Best viewing distance | 1.5-20M |
| Maximum power consumption | 600W/sq.m |
| Average power consumption | 300W/sq.m |
| Driving method | 1/16 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >3000Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |

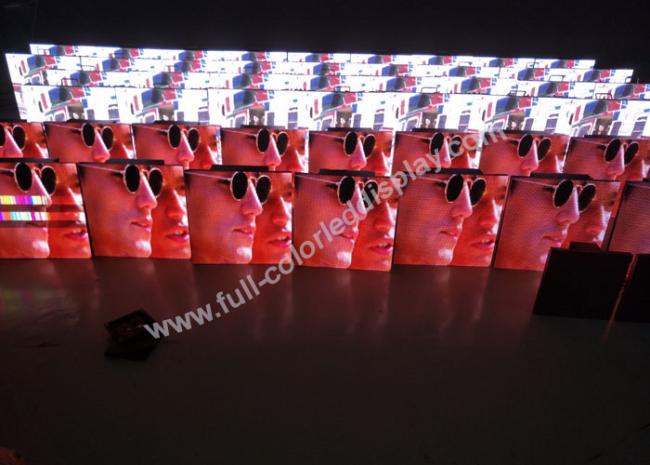

Product aging:

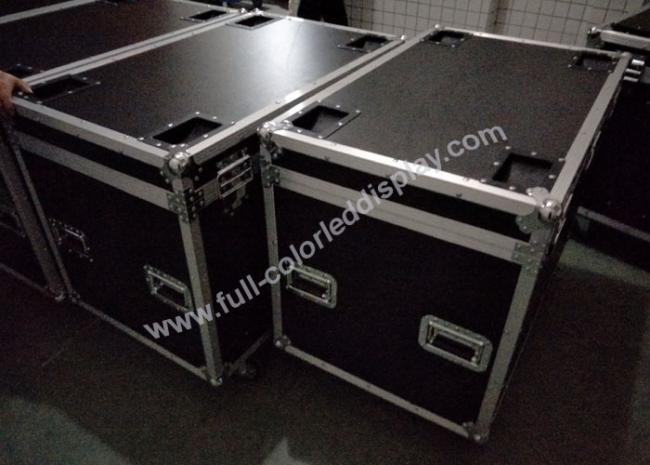

Package:
Our service:
Factory visiting and inspecting is welcome;
Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
Your inquiry related to our products or price will be replied in 24hrs;
Design the framework structure to install our led products with technical drawing;
We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site;
We offer training for free;
LEDWORLD provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts;
We promise you more than just two years warranty service;
