Eco Friendly 1080P P1.66 HD LED Display For Railway Station / Hospital

Price Negotiable
Price: Negotiation
MOQ: 1 square meter
Delivery Time: 12-20 working days after received your payment
Brand: Shenzhen LED World
Product Description

1080P P1.66 HD LED Video Screen Display for indoor video television



Features:

  • High resolution,wide view angle,short view distance available,eys friendly;
  • High Refresh Rate
  • Smooth and vivid videos without ripple and blank, clear images restored accurately, bringing the audience greatest visual enjoyment;
  • High resolution images;
  • High resolution, small pixel pitch;
  • small spacing screen series, the picture is very hd is exquisite, high contrast and gray level;
  • Refresh Frequency ≥2880Hz(Support High refresh rate, depend on the system configuration);
  • High pixel density, high definition, colorful, rich perspective, long life span and energy-saving etc;
  • Full HD;
  • Billion level color and high brightness quality black LED,realizing perfect of gray scale and contrast;
  • High quality, High defination, High refresh;



Application:

Suitable for hospitals,commercial buildings,entertainment, club,industrial park,convention center,museum,motor racing Circuits, surrounding,internal,commercial building,lottery center,live broadcase,cafe,high speed railway station and so on .





Our service:

  • We promise you more than just two years warranty service;
  • On-line remote service is available;
  • You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance;
  • Your inquiry related to our products or prices will be replied in 24hrs;
  • Protection of your sales area, ideas of design and all your private information;
  • Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
  • 1% spare parts offered FOC;
  • Allow free training .You can send your engineer to our factory for training untill he knows all the operation;

Parameter:

Model LW-FI1.66
Pixel pitch(mm) 1.667
Configuration SMD1010
Module dimension(mm) (W)200x(H)300
Panel dimension(mm) (W)400x(H)300x(T)66
module resolution 120x90 dots
Module weight(kg) 0.4
cabinet resolution 240x180 dots
Installation type Fix
Panel weight(kg) 4.6
Pixel density(dots/㎡) 360000
Flatness error(mm) ≤0.1
Viewing angle(°) 160/160(Horizontal/Vertical)
Brightness(cd/㎡) ≥700
Color temperature(K) 3200~9300 (Adjustable)
Contrast 5000:01:00
Repetition frequency(Hz) 50/60
Refresh frequency(Hz) ≥2000
Gray scale(bit) 16
Ave. power(W/㎡) 240
Max power(W/㎡) 1000
Panel structure Die-casting aluminum
Maintenance Rear
Brightness/color correction Yes
Driving mode Constant current driver, 1/30 scanning
Power requirements AC90~264V, 47~63Hz
Signal Transmission Distance CAT cable:<100m;Single mode fiber:<10km
Working temp./humidity -10~40℃/10%~80%RH
Storing temp./humidity -20~60℃/10%~85%RH
Life time(hrs) 50,000
Certificate CCC/TUV-CE/ETL, etc.
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

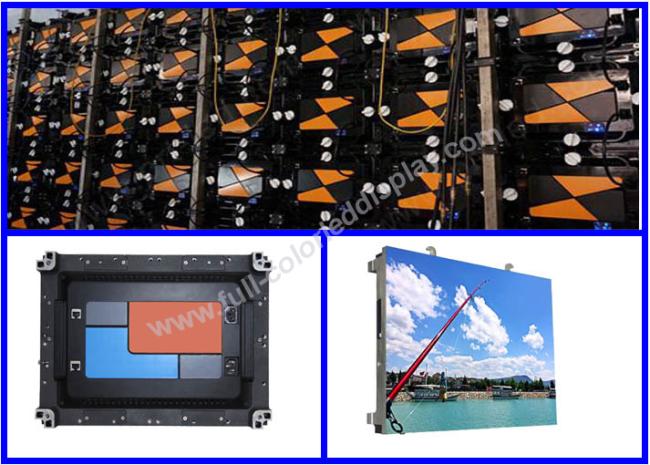

Project detail:

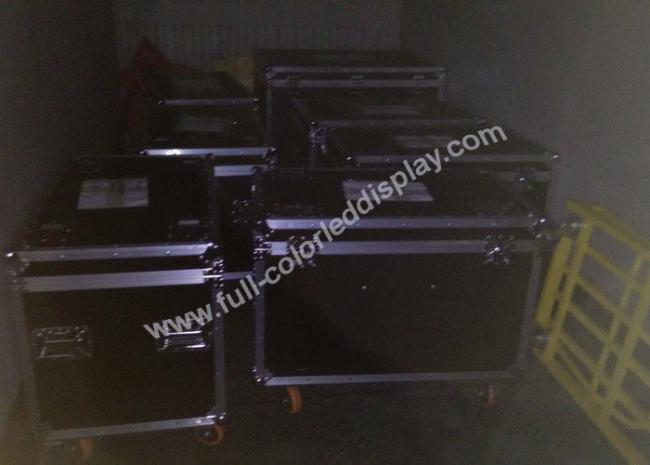

Package:
