Ultra Slim Indoor Rental Led Screen For Restaurants / Amusement Parks
Ultra Slim die-casting HD LED display P1.56 indoor rental small pixel pitch screen
Application:
Our indoor ture color LED screen are widely used in restaurants,Amusement parks,government,advertising,theme parks,gas station,high-rise building roof,airports, information center,Shopping Guide,Entertainment complexes,Highway,image promotion, press conference,internal,enterprises,entertainment TV,cafe,exhibition,school and so on .
Parameter:
| Unit Module | Item | Parameter |
| Model Number | LW-VI 1.56 | |
| Module size | 200mm*100mm | |
| Pixel pitch | 1.56mm | |
| Pixels Density | 409600/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD 3IN1 -1010 | |
| Pixel resolution | 128dots(W)*64dots(H) | |
| Max Power | 25W | |
| Module thickness | 14.75mm | |
| Weight | 0.4KG | |
| Drive type | Constant drive | |
| Scan mode | 1/32scan | |
| Port type | HUB75E | |
| Brightness of white balance | ≥1600cd/ | |
| Cabinet | Size | 400mm*300mm |
| LED Cabinet | Dimension | 400mm*300mm |
| Monomer Module Number | 6 | |
| Power supply | 5V/60A*1 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 256*192 | |
| Best viewing distance | 1.6M~10M | |
| Best viewing angle | 140°(W) 140°(H) | |
| Temperature | storage:-35ºC~+85ºC | |
| working:-20ºC~+50ºC | ||
| Relative humidity | 10%-75% | |
| Thickness | 85mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 500W/m2 | |
| Max.Power consumption | ≤1250W/m2 | |
| Current | ≤18mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Driving device | Constant drive IC | |
| Main technical | Refresh frequency | ≥1200HZ |
| parameter | Grey scale/colors | 4096gray level/16.7M colors |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Our company:
Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.
Our company leads the way in LED display manufacturing & technology.
Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.
Why choose us:
- First-rate service;
- Price Advantage: We have the best competitive price at the market, also have the same even better quality;
- Passing the system of ISO 9001 with IP65;
- Good service whenever;
- Respond within 24 hours.

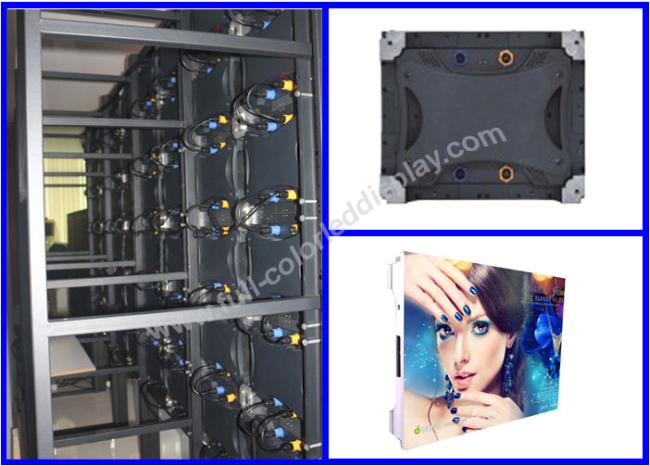

Product detail:

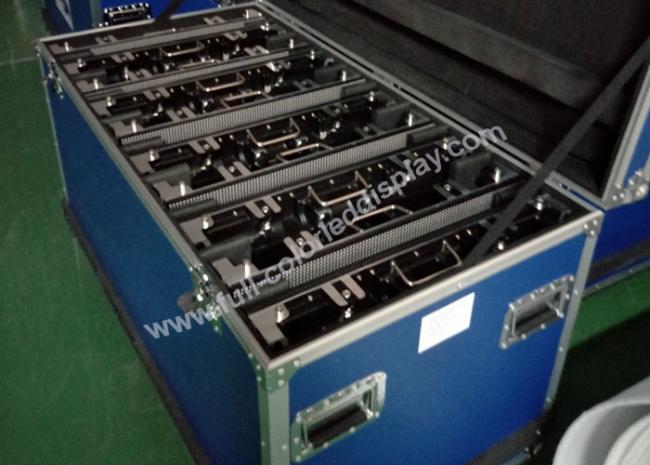

Product package:
