P6 Seamless Led Screens Anti Corrosion 576x576 Die Casting Cabinet
seamless splicing P6 outdoor rental led display with 576x576 die-casting cabinet
Product Description:

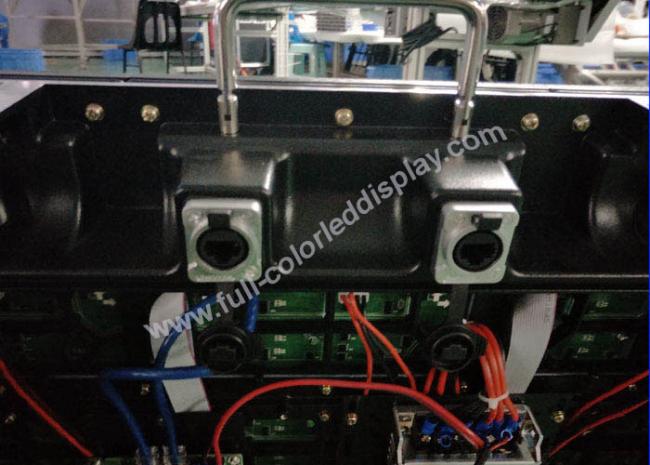

- Quick Lock System & PowerCon And EtherCon;
- High quality driving IC with up 14bits control system,ensure high gray level for good performance；
- Good waterproof IP65, suit to any weather,anti-corrossion,long life span;
- White smd higher brightness more visisble brightness gets more attention;
- body light, weighing only 10.5 kg, the 80 mm thick, and transportation is convenient;
- Light weight;
- High precision tile and module: Die-casting aluminum tile is made with CNC high precision machining techniques and its dimension tolerance is less than 0.2mm. The base frame and mask of LED module are anti-distortional. The uniform surface color ensures the picture on the display not distorted;
- Nice appearance and simple structures;
- Die-casting aluminium cabinet, light, strong and precise, tolerance within 0.2mm;
- Without cooling fan nor A/C,less power consumption;
- The cabinet is portable,convenient to transport and collect, and packed with flight cases, can move to any where;
Our company:
Our company leads the way in LED display manufacturing & technology.
As Shenzhen is a center of globle source, we can get more superior price raw material and advanced information and technology, alll of these give our company a best environment in promoting its high-end products.
The products we can offer you, besides outdoor full color P10 led display for advertising, also include:
1. P1.92P1.2P2.5P3P4P5P6...Indoor full color led display;
2. P5P6P6.25P6.67P8P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Parameter:
| Parameters | LW-RO 6 | ||
| Pixel Pitch (mm) | 6mm | ||
| Pixel density(pix/m2) | 27777 | ||
| LED Type | 3535 | ||
| Viewing Angle | X,Y140° | ||
| Brightness(nits) | ≥5000 | ||
| Drive Method | 1/16 | ||
| Color Depth | 65536 | ||
| Refresh Rate(Hz) | 1920 | ||
| Module Size (mm) | 192×192×16 | ||
| Cabinet Size(mm) | 576×576×80 | ||
| Cabinet Material | aluminum | ||
| Cabinet weight(kg) | 12 | ||
| Voltage | 200-240V | ||
| Average.power(W/m2) | 230 | ||
| Max.power (W/m2) | 700 | ||
| IP Grade | IP65/IP54 | ||
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH | ||
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH | ||
| Lifetime(h) | ≥50000 | ||
| Compliant Standard | CCC(CE)Rosh | ||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||
- We have competitive price;
- Top quality + reasonable price + patient after-sales service;
- We are Professional manufactory of LED Display for more than 7 years in Shenzhen China.We have 9000 square meters of production base, 400 employees, enough for any orders;
- Passing the system of ISO 9001 with IP65;
- On time delivery + patient after-sales service;
- Our products are the CE certified, ROHS compliant, FCC identified;
- Good service whenever;
- Quality advantage: From material to finished product, from design to produce, we control all steps;
Product detail:
