Ultra Slim Outdoor Rental LED Display For Stage Easy Maintenance
Price:
negotiable
MOQ:
1 square meter
Delivery Time:
12~20 working days after deposit received
Brand:
Shenzhen LED World
Product Description
Ultra Slim P10 dip outdoor led display rental screen 8500 cd/square meter for stage
Product Description:
- Noiseless: Die-casting Aluminum cabinets, fanless design with noiseless power supply;
- Easy to maintain, remove and replace the defect part individually ;
- Special connection design with micro-adjustment;
- With power and signal connectors, Neutrik or Seetronic brand, very easy to install and dismantle;
- Fast Installation and disassembling: connection lock between cabinets are patented, closely combined, safe, reliable and adjustable, 50 cabinets can be installed in one hour;
- Nice appearance and simple structures;
- Hanging or fixed installation are both available;
- Seamless design;
- It is designed as slim body & light weight, Easy maintenance, Long use life;
- Seamless spliced, good uniformity, perfect display performance;
- The cabinet is made of Die-Casting aluminium , so can be spliced with no crack;
- high refresh rate: the refresh rate of our product is over 1000hz/s much higher than 480hz/s that most of other suppliers offer.So it's very good for TV live broadcast.You can also get very good images when you take pictures or video;
Our service:
- All of our led display have proceeded aging test before shipment;
- Help you to choose suitable products within budget with most economy benefit;
- Additional charges will be required if you want more spare parts. We offer lifetime maintenance and charge only for the raw materials after the guarantee period;
- Distributer ship are offered for your unique design and some our current models;
- We will delivery goods as you demand ,you can choose the cheaper and more convenient way;
- LED WORLD can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display;
- Allow free training .You can send your engineer to our factory for training untill he knows all the operation；
- Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection.
Parameter:
| Description | Technical parameter | ||||||
| Unit module | PCB | Integrated Light/Driver | |||||
| Module size | 160mm(W)*320mm(H) | ||||||
| Pixel pitch | 10 mm | ||||||
| Pixels Density | 10,000 dots/ square meter | ||||||
| Pixel configuration | RGB SMD 3 IN 1 | ||||||
| View angle | >110°(H) />55°(V) | ||||||
| Pixel per module | 16 (W)*32 (H) dots | ||||||
| Working power consumption | ≤20W/PC | ||||||
| Max. power consumption | ≤40W/PC | ||||||
| Weight | 0.9 kg | ||||||
| Power port | 2P U-terminal | ||||||
| Signal interface | HUB 75 | ||||||
| Control system | PC | Pentium 4 or above | |||||
| Operating system | WIN 98/2000/NT/XP/WIN7 | ||||||
| control method | synchronous/asynchronous display | ||||||
| Main Technical Parameter | Driving device | Constant Current | |||||
| Drive type | 1/4 scan | ||||||
| Grayscale | 4096 grayscales in red/green/blue | ||||||
| Color | 4096*4096*4096 | ||||||
| Luminous intensity | ≥8500 cd/ square meter | ||||||
| Working voltage | 5 V | ||||||
| Average power consumption/m2 | ≤390W/PC | ||||||
| Max. power consumption/m2 | ≤780W/PC | ||||||
| Life span | ≥100,000 hours | ||||||
| Best vision distance | 10~100m | ||||||
| Temperature & Humidity range | -20 Degree~60 Degreen, 10 to 90 percent | ||||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||||
Application:
It can be widely used in municipal public buildings,Shopping Guide,postal offices,stage shows,TV Shows,night club,TV-Show,athletic contest,exhibition,entertainment industry,motor racing Circuits,
market,Casinos,Government facilities,waiting area and so on .
market,Casinos,Government facilities,waiting area and so on .
Product detail:

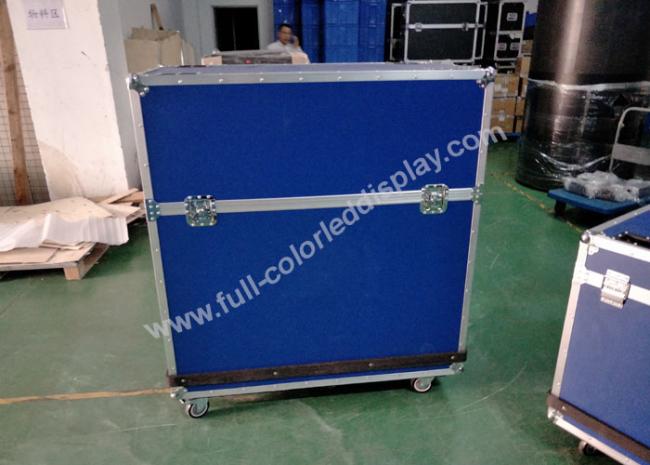

Package:
