High Definition Indoor Fixed LED Display For Stage Corrosion Resistance
P3 / P4 / P5 / P6 inside fixed led display high definition screen board panel
Features:
- Control distance ≤ 100M (Cat. 5 without repeater) /500M(multi-mode optical fiber)/20000m(single-mode optical fiber)；
- Good performance(perfect image quality, sufficient brightness and white balance, )will continue after long-term operation;
- The LED lamps can be white LED for higher brightness or black LED for higher contrast rate;
- Safety : Using the low voltage DC so that no matter the elderly and children can safely operate without potential safety hazard；
- LED world display could be used under different climate zone all over the world. It can bear temperature -30℃-60℃. Our cabinet owns good moistureproof and corrosion resistance function, thus it could be used even in the high humidity and high salinity air environment;
- Lightweight with no rust
- It can use aluminum cabinet greatly saving fright cost and conveniently installing;
- SMD block lamp body ensure the high brightness and good quality；
- Large viewing angle,160 degree Horinzontally and 140 degree vertically by using our specially designed mask;
Parameter:
| Item No. | P3 | P4 | P5 | P6 |
| Classification | Full color | Full color | Full color | Full color |
| Pixel pitch | 3mm | 4mm | 5mm | 6mm |
| Size of module (mm*mm) | 96*96/192*96 | 128*128 | 160*160 | 192*96 |
| Pixel density | 111111 dots/m2 | 62500 dots/m2 | 40000 dots/m2 | 27777 dots/m2 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED encapsulation | SMD2020 | SMD2020 | SMD3528 | SMD3528 |
| Resolution of module | 32*32/64*32 | 32*32 | 32*32 | 32*16 |
| Best viewing distance | 2m | 2m | 3m | 4m |
| Best viewing angle (Horizontal/Vertical) | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| Max power consumption | 1300 W/m2 | 1300 W/m2 | 1200W/m2 | 1200W/m2 |
| AVG power consumption | 250~550 W/m2 | 250~550 W/m2 | 300~650W/m2 | 300~650W/m2 |
| Size of standard cabinet(mm) | 576*576 | 512*512 | 640*640 | 768*768 |
| Resolution of standard cabinet | 192*192 | 128*128 | 128*128 | 128*128 |
| Weight of standard cabinet | 15kg | 12kg | 18kg | 30kg |
| Driving method | 1/16 Scan | 1/16 Scan | 1/16 Scan | 1/8 Scan |
| Frame frequency | 60Hz/s | 60Hz/s | 60Hz/s | 60Hz/s |
| Refresh rate | ≥1000HZ | ≥1000HZ | ≥1000HZ | ≥1000HZ |
| White balance brightness | ≥1000cd/m2 | ≥1300cd/m2 | ≥1500cd/m2 | ≥1800cd/m2 |
| Working /Storage environment temperature | Working:-20°C~50°C Storage:-40°C~60°C | |||
| Operating ambient humidity | Working:10%--95% HR Storage:10%--95% HR | |||
| IP grade | IP20~IP54 | |||
| Working voltage | AC 220±10% or 110±10% | |||
| Grey scale | 14 bits per color | |||
| Brightness adjustment | 256 levels of each color (RGB) can be adjusted manually | |||
| Signal input | RF, S-Video, RGB, RGBHV, YUV, YC.Ect | |||
| Control system | Sending Card+ DVI Graphic card+ Receiving card+ Video Processor ( optional) | |||
| MTBF | ≥5000 hours | |||
| Life span | ≥100000 hours | |||
| Malfunction dot rate | Less than0.0001 | |||
| Transmission distance | LAN cable less than100m;Optic fiber transmission :MMF less than 500m, SMF less than 20km | |||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||
Why choose us:
- OEM & ODM available;
- Good quality by using Nationstar led lamp, MBI IC;
- Price Advantage: We have the best competitive price at the market, also have the same even better quality;
- Your reply will be replied within 24 hours;
- Good quality and price,the price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the labor cost and management;
- 100% QC inspection before shipping;
Our company:
Through the efforts and collaboration of all employees of the company, the products are exported to Europe, North America, Australia, the Middle East, and the establishment of a stable distribution agents in the respective regions.
Main markets in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, has set up stable sales agents in the corresponding areas.
Shenzhen LED World co.,ltd is a professional LED media/video display manufacturer.
LED WORLD also has got good reputation from different users, our products are mainly supplied for international market, so offering quality products, competitive price, our enterprise survival in the big market. At any time,we are the best one of your reliable choice.

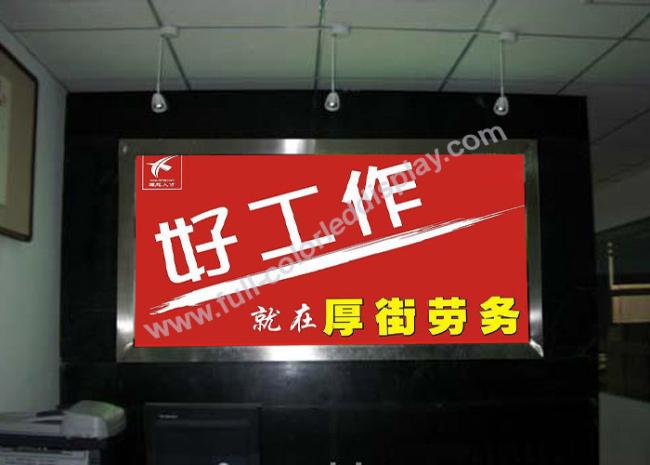

Project case:
Package:
