Wide View Angle Fixed Installation Led Display P3 / P4 / P5 / P6
P3 / P4 / P5 / P6 indoor vivid led video display screen panel for fixed install
Features:
- Component selection and layout minimize heat distribution and operating temperature,making worry-free usage for customers;
- Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA;
- High-definition and perfect image gives you a visual feast; it is suitable for all kinds of occasions , such as the splendid hall, innovation technology seminars, star talent and the game; Aries free from the scene, and perfection is near at hand;
- With professional aviation plugs as connector,ensure the quality and safety;
- On-site brightness and chroma calibration can recover the uniformity;
- Special mask design, provide better protection for the LED lamp;
- Adopting SMD 3 in 1 technology makes the LED display’s viewing angle ultra-wide and its surface flat;
- Good quality raw material, accurate technique and careful inspection insure the high quality of led display;
- Redundancy availability of: module,power supply,controller system and computer;
- Large viewing angle,160 degree Horinzontally and 140 degree vertically by using our specially designed mask;
- Wide view angle, good display performance and good cost performance;
Application:
Our full color LED display are widely used in commercial building,hospital,High end hotel,TV studio,government agencies,advertisement, Entertainment complexes,star hotel,
Open Air exhibitions,Lobby,TV-Show,enterprise engineering, entertainment, cinemas,Theatres and Retail outlets,telecommunications,traffic display,concert,railway stations,HR market,school, surrounding and so on.
Parameter:
| Items | P5mm |
| Pixel | 1R1G1B |
| Configuration | SMD 3-in-1 |
| Pixel Pitch | 5mm |
| Pixel Density | 40,000 |
| Module Size(mm) | 160x160or 320x160 |
| Pixels/Module | 32x32or 64x32 |
| Cabinet Size(mm) | 960x960 |
| Pixels/Cabinet | 192x192 |
| Cabinet Weight | 37KG |
| Brightness | 1300cd/㎡ |
| Viewing Distance | >5m |
| Power Consumption | Max: 400 |
| (W/㎡) | Ave: 120 |
| Driver Mode | 1/16 scan |
| Cabinet Material | Cold Rolled Steel |
| Refresh Rate | 300-3000HZ adjustable |
| LED Life | 100,000 hours |
| Supply Voltage | AC220V/50HZ; AC110V/60HZ |
| Operating Temperature | -20℃ ~ +40℃ |
| Operating Humidity | 10% - 90% |
| Viewing Angle | H: 120°; V: 120° |
| Gray Scale | Red, Green and Blue each 16K |
| Display Color | 4096 Billion |
| IP Rating | IP20 |
| Display Capability | Text, Graph and Video |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Our company:
Our technology strength is among the front row in this industries, with a professional team. Strictly quality control, good after sale service and quickly delivery.
Shenzhen LED World co.,ltd will be committing to provide more cost-effective, more energy-efficient, and greener LED optoelectronic products, contributing to building a green home.
It export from Year 2011, have Own Export License.
Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.

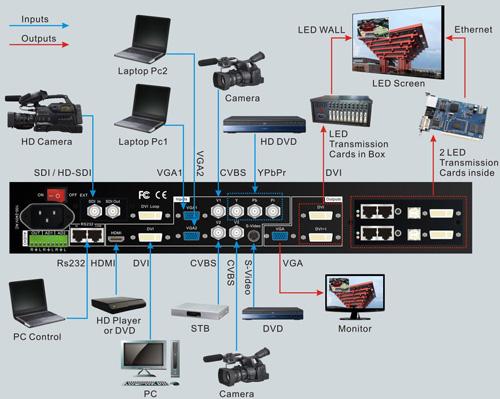

Control system diagram:
Package:
