High Definition P2.5 Indoor Fixed LED Display Customized Cabinet
High definition P2.5 indoor fixed led video wall with customized cabinet
Features:
- 2 years warranty, best after-sales service;
- Colorful moving videos and pictures;
- Price Advantage: We have the best competitive price at the market, also have the same even better quality.;
- widely used in building showing;
- Dot to dot calibration system: stable &flicker free display with wide viewing angle,super contrast &brightness levels for vivid images even in strong sunlight;
- Higher contrast rate, showing sharp image quality;
- Energy Saving≥50%, Environment Protection;
- Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc;
- Adopting the SMD three integrated technology, larger viewing angle, and better surface smoothness;
- Super wide viewing angle, horizontal 140 degree, vertical 120 degree;
- Rich indoor full color LED display screen engineering experience both in domestic and international market；
Parameter:
| Items | P2.5mm |
| Pixel | 1R1G1B |
| Configuration | SMD 3-in-1 |
| Pixel Pitch | 2.5mm |
| Pixel Density | 160,000 |
| Module Size(mm) | 160x160 |
| Pixels/Module | 64x64 |
| Cabinet Size(mm) | 960x960 |
| Pixels/Cabinet | 384x384 |
| Cabinet Weight | 37KG |
| Brightness | 1300cd/㎡ |
| Viewing Distance | >2.5m |
| Power Consumption | Max: 800 |
| (W/㎡) | Ave: 240 |
| Driver Mode | 1/32 scan |
| Cabinet Material | Cold Rolled Steel |
| Refresh Rate | 300-3000HZ adjustable |
| LED Life | 100,000 hours |
| Supply Voltage | AC220V/50HZ; AC110V/60HZ |
| Operating Temperature | -20℃ ~ +40℃ |
| Operating Humidity | 10% - 90% |
| Viewing Angle | H: 120°; V: 120° |
| Gray Scale | Red, Green and Blue each 16K |
| Display Color | 4096 Billion |
| IP Rating | IP20 |
| Display Capability | Text, Graph and Video |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Trade term:
- Package: Anti-shaking wooden cabinet, Carton package；
- Warranty time:2 years,lifelong maintaining；
- Shipping freight are quoted under your requests;
- Packing: Anti-shaking wooden cabinet /Air flight case/carton;
Our company:
usage: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.
Company in good faith with the talents and distribution to join the LED display system and common development, and make due contribution to the development of LED display system.
Our company technology strength is among the front row in this area, with a vigorous team.
Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.

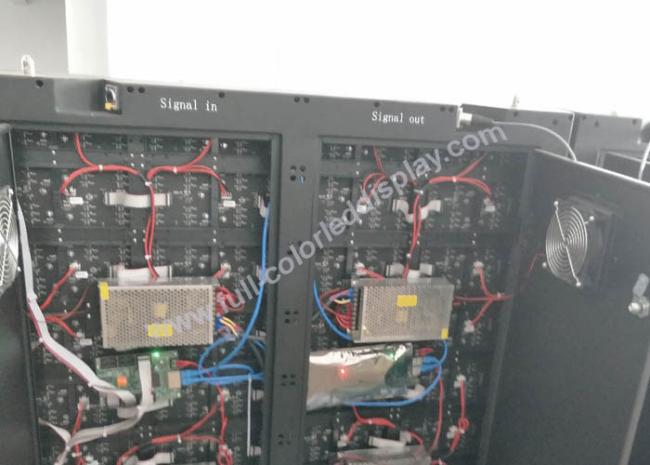

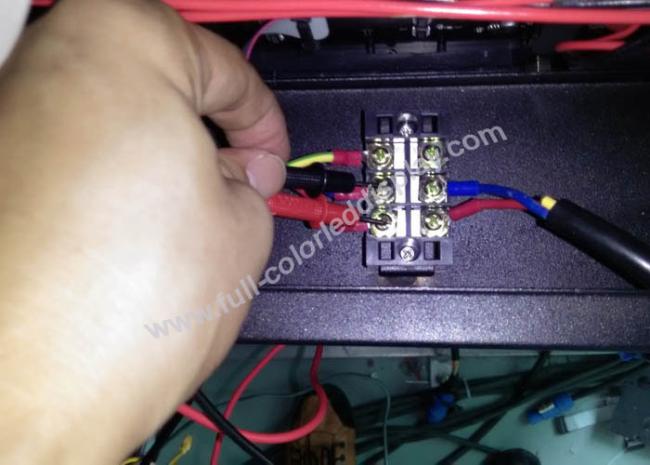

Product detail:
