Indoor / Outdoor Indoor Led Video Wall P3.91 / P4.81 / P5.68 / P6.25
Price:
Negotiation
MOQ:
1 square meter
Delivery Time:
12-20 working days after received your payment
Brand:
Shenzhen LED World
Product Description
Arc Indoor / outdoor curved led display screen panel P3.91 / P4.81 / P5.68 / P6.25
Features:
- Big size cabinet, save the labor and time when you fixed. At the same time, one big size cabinet just need one receving card;
- Same cabinets configuration design as normally, only with magnetic front design,adhere the modules on tightly with magnets,easy and fast to install and dismantle with a simple push,save up 50% time for assemble and disassemble;
- Angle adjustment
- Using angle adjustment structure, panels could be assembled into different shape like convex and concave, the angle range is ±15° .
- Adjustable screen radian;
- Can be used both outdoors and indoors;
- The resolution is 30976 pixels per square meter so definition is high enough for showing video, images and it's clear enough when viewed in short distance;
- P5.95mm outdoor for rental,high definition,high contrast;
- The LED screen size can be exactly : 4*3m ,6*4m,9*5m etc .easy to get 4:3 ,16:9 ratio ;
- Can be flat screen and curved screen, one screen, multiple use, you can shape anything you want;
- 500x500mm panel size is given it the advantage of setting up accurate dimensions;
- Made with same module size of traditional 250x250mm size,only some different for the external members,and with a handle at the back of module,for take the module out of the cabinets；
Parameter:
| Model | LW-RO6.25 |
| Pixel Pitch | 6.25mm |
| Pixel Density | 25600 pixels/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500mmx500mm |
| Cabinet Resolution | 80*80pixels |
| Cabinet Weight | 9kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/10 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 420w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥50000hrs |
| Pixel Failure | <0.0003 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
|
Our service:
- maintainance Free:if you find the product has any problems ,pls kindly contact me;
- Top quality+Reasonable price+Responsible After Service=Successful & Win;
- We offer training for free;
- User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided;
- OEM&ODM, any your customized display we can help you to design and put into product;
- We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software;
Why choose us:
- Low consumption;
- Top quality + reasonable price + patient after-sales service;
- Quality advantage: From material to finished product, from design to produce, we control all steps;
- Good service whenever;

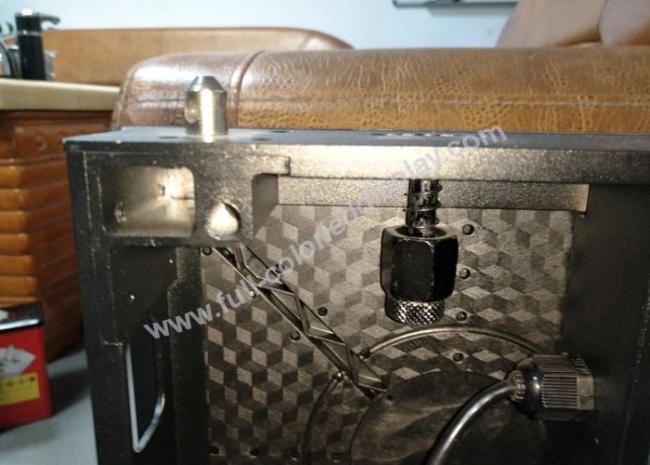

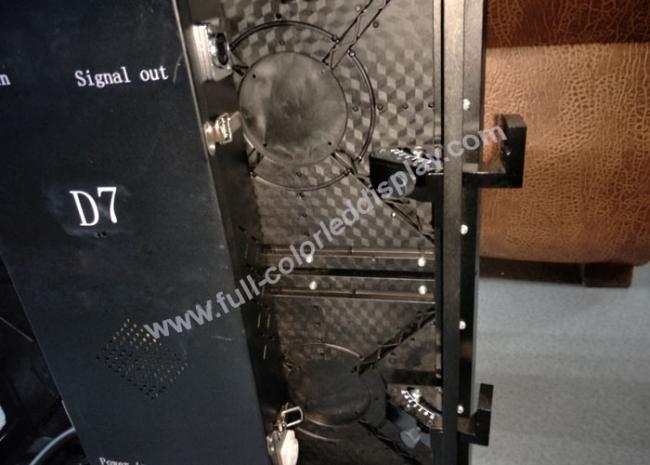

Product detail:
