Hanging Type Ultra Thin Full Color LED Display Advertising Synchronization With PC
P3 / P6 full color led advertising display screen board Hanging Type ultra thin
features:
- Fast Maintenance, with front maintenance design, maintenance efficiency is 10 times higher than traditional method, significantly saving time needed for maintenance;
- Lightweight with high strengthen cabinet;
- So capable, so multi-functional;

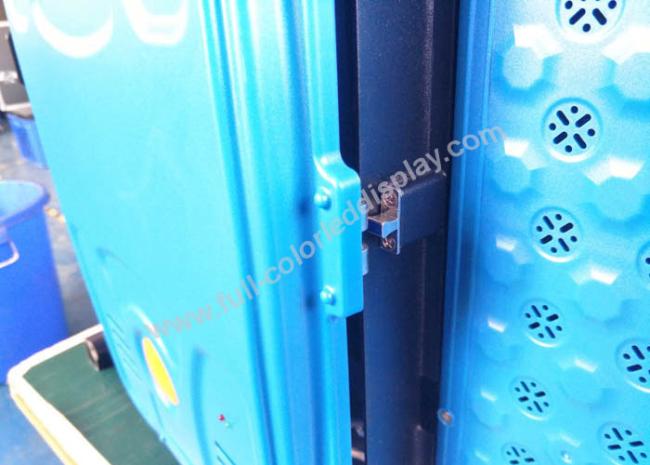

- Fast Installation and disassembling: connection lock between cabinets are patented, closely combined, safe, reliable and adjustable, 50 cabinets can be installed in one hour;
- Compact base design, so that the whole screen space can be smaller a lot;
- High precision: using electromechanical processing the size could be accurate to 0.1mm;
- "Fast Installation, high precision and less weight
- Fast lock system, 80% higher efficiency in installation. Die-casting aluminum cabinet, high precision and less weight;"
- Seamless apperance and lightweight;
- It is good high resolution LED display, indoor LED video wall, Indoor LED panel, Indoor LED wall ;
- Wide view angle and shot view distance, no stroble,friendly to our eyes;
- Super wide viewing angle, horizontal 140 degree, vertical 120 degree;
- Indoor Full color led project screen;
Parameter:
| The specifications of modules | |
| Items | Parameter |
| Product Model | P6 Indoor Full Color LED Module |
| Module size | 192mm*96mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 32dots(W)*16dots |
| Module maximum power consumption | 15W |
| Module Thickness | 1.4CM |
| Module Weight | 0.154kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/4scan |
| Interface | HUB75 |
| Brightness | ≥3000cd/m2 |
| The specifications of cabinets | |
| Cabinet size | 576mm*576mm |
| Module quantity | 18pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 6M~50M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RH Working temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier | |
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤810W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card | |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters | |
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Application:
It can be widely used in pedestrian streets,propaganda image,large exhibition hall,power sector,Indoor stage,grogshop,train/bus station,super market,financial industry,athletic contest,country club,airport and so on .
Our service:
We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you;
All of our LED display have proceeded aging test before shipment,and we guarantee to use our products safety;
Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
We offered software customization for our your specific usage;
