P5 / P8 / P10 Full Color LED Display For Outdoor / Indoor High Definition
P5 / P8 / P10 high definition outdoor led billboard electronic digital screen.
Features:
- Adopts strong electricity hot-plugs, no Spark discharge during hot-plug in and hot-plug out. Absolutely waterproof, tamper-proof and anti-corrosion;
- High protection level IP65;
- Consistent color temperature and brightness,no mosiac and blind spot;
- Suitable for any indoor or outdoor, fixed or rental application;

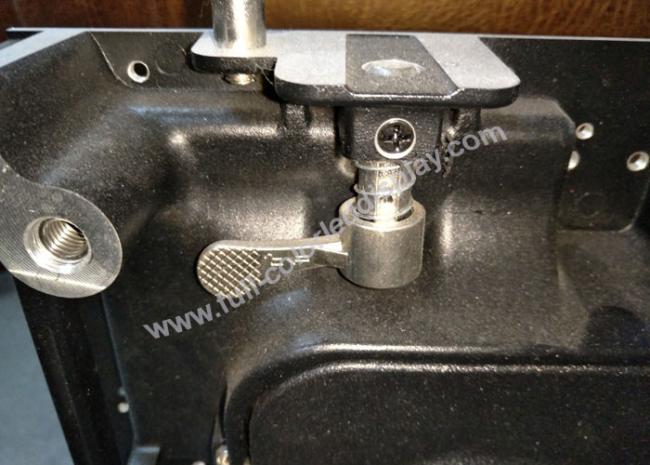

- Special connetion design with micro-adjustment;
- New design of rental structure. This structure makes the LED Screen connection seamless;

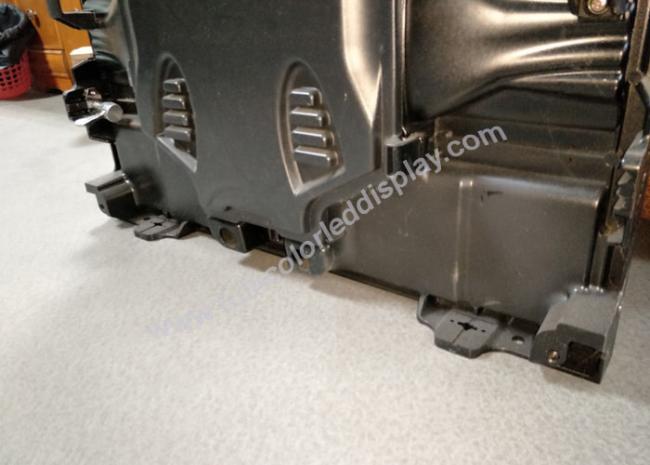

- The entire cabinet with die casting aluminum alloy material is more lightweight and practical;
- Specially designed for huge size screen;
- Built-in fan for releasing heat;
- Super thin and light weight , easy to install and transport;
- Nice appearance--looks high end;
- Heat Dissipation: With Modular design heat won’t be conducted among modules, offering fantastic heat dissipation performance;
Parameter:
| Model No. | P5(outdoor) |
| Pixel pitch | 5mm |
| Led type | SMD2727 |
| Resolution(dots/sq.m) | 40000 |
| Brightness(Nits) | ≥5000 |
| Drive mode | 1/8 |
| Module size(mm) | 320×160 |
| Panel size (mm) | 640x640 |
| Panel resolution(dots) | 128x128 |
| Cabinet weight(KGS) | 14 |
| Power consumption | 800/300 |
| Max./Avg. (W/m2) | |
| View angle(H/V) | 160°/140° |
| Refresh rate(Hz) | ≥2000 |
| Grey scale | 16Bits |
| Best view distance | 4-50M |
| Protection level(Front/Back) | IP65/IP54 |
| Input Power (V) | IP65/IP54 |
| Working Temperature | -20ºC~+50ºC |
| Working humidity | 10% ~90% |
| Control | Caste ≤100M, Fiber optical≤10000M |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Our company:
Our company offers user-friendly products that optimize productivity and business efficiency and maintain the highest standards of design and quality.
OEM, ODM, Own Brand(LED WORLD).
Its outdoor & indoor commercial advertising LED display, rental use LED display, fixed installation LED display, sports stadium perimeter LED display, mobile trailer LED display, water floating LED display, transparent LED curtain display, digital LED billboard, LED mesh display screen for skyscraper's decoration, arc LED display, LED components & complete LED full color video systems undergo stringent quality control at ISO 9001-certified manufacturing plants.
Our service:
- We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too;
- Factory and product inspection accepted;
- Our products have two years warranty service ,lifetime free maintenance and upgrade;
Product detail:
