P3.91 / P4.81 / P5.68 / P6.25 full color led screen video panel die-casting cabinet
Price:
Negotiable
MOQ:
1 Square Meter
Delivery Time:
12~18 days after receiving the deposit
Brand:
Shenzhen LED World
Product Description
P3.91 / P4.81 / P5.68 / P6.25 full color led screen video panel die-casting cabinet
Features:
- Can be used both outdoors and indoors;
- The LED screen size can be exactly : 4*3m ,6*4m,9*5m etc .easy to get 4:3 ,16:9 ratio ;
- Cabinet size:500mmW*500mmH, thickness around 60mm, only7.8Kg;It can be P3.91, P4.81, P5.68 and P6.25;
- Safty Lock. Upgrated double safty lock design, double hanging lock and stable side lock;
- Indoor and outdoor Full color led project screen.
- The screen could be hung up for different kinds of event.And it also could be put on the floor as dance floor;
- Fast Maintenance, with front maintenance design, maintenance efficiency is 10 times higher than traditional method, significantly saving time needed for maintenance;
- The 3 in 1 intergrated back of power supply,receving card and HUB board makes replacement simply,with simple plug;
- Big size cabinet, save the labor and time when you fixed. At the same time, one big size cabinet just need one receving card;
- Module size of 250x250mm, can be assembled with 500x500mm and 500x1000mm;
- 500x1000 uniform cabinet,compatible with modules of various pixel pitch;
Parameter:
| Outdoor P3.91 Video Performance LED Rental Display | ||||||||
| S/N | Item | Technical Parameters | ||||||
| LED Parameters | ||||||||
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle | |||
| 2 | Red LED | SMD2121 | 120-140mcd | 620-625nm | 140º/65º | |||
| 3 | Green LED | SMD2121 | 360-435mcd | 520-525nm | 140º/65º | |||
| 4 | Blue LED | SMD2121 | 80-100mcd | 470-475nm | 140º/65º | |||
| Module Specification | ||||||||
| 1 | Pixel Pitch | 3.91mm | ||||||
| 2 | Pixel Configuration | 1R1G1B(3in1) | ||||||
| 3 | Module Resolution | 64 x 64 pixels | ||||||
| 4 | Module Pixles | 4096 pixels | ||||||
| 5 | Module Size | 250mm X 250mm | ||||||
| Cabinet Specification | ||||||||
| 1 | Cabinet Size(W X H X D) | 500mm x 500mm x 85mm | ||||||
| 2 | Cabinet Resolution(dot) | 128 x 128 pixels | ||||||
| 3 | Module Quanity (pcs) | 4pcs | ||||||
| 4 | Cabinet Pixels | 16384 pixels | ||||||
| 5 | Pixel Density | 65410 pixels/m2 | ||||||
| 6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose | ||||||
| 7 | Cabinet Weight | 6.247kg per cabinet | ||||||
| 8 | Packaging | Fly case | ||||||
| 9 | Fly Case Size | 62*56*74CM ( one case for five cabinets )/ G.W.: 56.3kg | ||||||
| Whole Screen Specification | ||||||||
| 1 | Screen Brightness | ≥1200cd/m2 | ||||||
| 2 | Driving Method | Constant current | ||||||
| 3 | Best Viewing Distance | 3.91m - 40m | ||||||
| 4 | Max. Power Consumption | 1200W/m2 | ||||||
| 5 | Average Power Consumption | 500W/m2 | ||||||
| 6 | Gray Level | 8bits input, 4096 levels(212) | ||||||
| 7 | Display Color | 16M | ||||||
| 8 | Frame Frequency | ≥60Hz | ||||||
| 9 | Refresh Frequency | ≥1200Hz | ||||||
| 10 | Uninterrupted Working Hours | ≥72 hours | ||||||
| 11 | Screen Life-span | ≥100,000 hours | ||||||
| 12 | MTBF | ≥5,000 hours | ||||||
| 13 | Discrete Blind Spot Rate | <1/10000 | ||||||
| 14 | Continuous Blind Spot Rate | None | ||||||
| 15 | Blind Spot Rate | <1/10000 | ||||||
| 16 | Protective Scale | For indoor use, non-waterproof | ||||||
| 17 | Screen Plainness | <±1mm | ||||||
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||||||
| 19 | Environment Temperature | Temperature:-20 Celsius~+60 Celsius | ||||||
| 20 | Humidity | Humidity:10%~90% RH | ||||||
| 21 | Control Mode | Synchronous display with control PC by DVI | ||||||
| 22 | Control System | Linsn, Nova-star, Colorlight or as you required | ||||||
| 23 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | ||||||
| 24 | Interface | Standard Ethernet | ||||||
| 25 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m | ||||||
| 26 | Power Supply Brand | G-energy, MeanWell, Chuanglian or as you required | ||||||
| 27 | Certificate | CE, RoHS, FCC | ||||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||||
Trade term:
- Shipping freight are quoted according to your requests；
- Shipping freight are quoted under your requests;
- Packing: Anti-shaking wooden cabinet /Air flight case/carton;
- 2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees;
Why choose us:
- Free training is provided for our customers;
- Good quality and price,the price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the labor cost and management;
- attractive price! If you have any urgent questions, pls contact me without hesitation;
- Provide promotion activity;

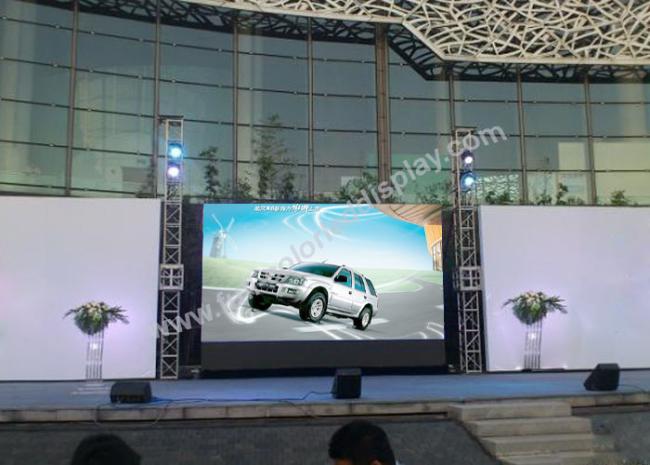

Prject case:

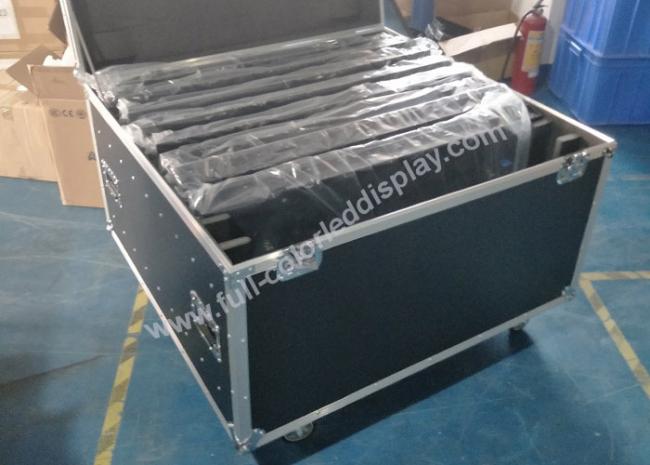

Package:
