P2 / P2.5 / P5 Advertising LED Displays High Precision 10000 Hours

Price Negotiable
Price: Negotiation
MOQ: 1 square meter
Delivery Time: 15-20 working days after received your payment
Brand: Shenzhen LED World
Product Description

Synchronization P2 / P2.5 / P5 indoor advertising screens high precision.





Features:

  • Most competitive price for the same model in the market;
  • High refresh frequency, high grey level, and no dithering while displaying videos, can be used for live TV program, and The pixel correction technology is available.
  • High resolution,wide view angle,short view distance available,eys friendly;
  • High definition, good uniformity;
  • High pixel density, high definition, colorful, rich perspective, long life span and energy-saving etc;
  • High-Energy Saving
  • Save 66% energy;
  • Seamless spliced,with smooth and vivid visual effect,perfect performance;
  • Ideal for close viewing distance;
  • Wide view angle, good display performance and good cost performance;
  • Good hot dissipation, without fans, no noise, beautiful looking, easy mounting without gap;
  • Can be assembled with cabinets or on rackes with magnet, for led TV Screen, video wall, sign board etc;
  • SMD LED encapsulated technology make slim thickness and good heat dissipation, energy-saving;

Application:

Our indoor ture color LED screen are widely used in 4S shop,park,advertisement, bar,Open Air exhibitions,backgound,show,power sector,commercial buildings,bars,live show,concert hall,restaurant,waiting room of station,stadium,Amusement parks,airport,large entertainment plaza,image promotion, golf course and so on .



Parameter:

Pixel pitch 2.0mm 2.5mm
Pixel Configuration 1R1G1B 1R1G1B
LED component SMD1010 SMD2121
Size of module 160mm x 160mm 160mm x 160mm
Resolution of module 80x80 64x64
Size of cabinet 480mm x 480mm x 78mm 480mm x 480mm x 78mm
Resolution of cabinet 240x240 192x192
Material of Cabinet Die-casting Aluminum Die-casting Aluminum
Weight of Cabinet about 7KG/cabinet about 7KG/cabinet
Brightness >1000cd/sq.m >1200cd/sq.m
Density 250000dots/sq.m 160000dots/sq.m
Best viewing angle 140 /140 140 /140
Best viewing distance 1.5-20M 2-30M
Maximum power consumption 600W/sq.m 600W/sq.m
Average power consumption 300W/sq.m 300W/sq.m
Driving method 1/16 scan 1/32 scan
Control method Synchronization Synchronization
Gray scale 65536 65536
Colors 256*256*256 256*256*256
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

  • 1% spare parts offered FOC;
  • Help you to choose suitable products within budget with most economy benefit;
  • Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection;
  • OEM service offered;

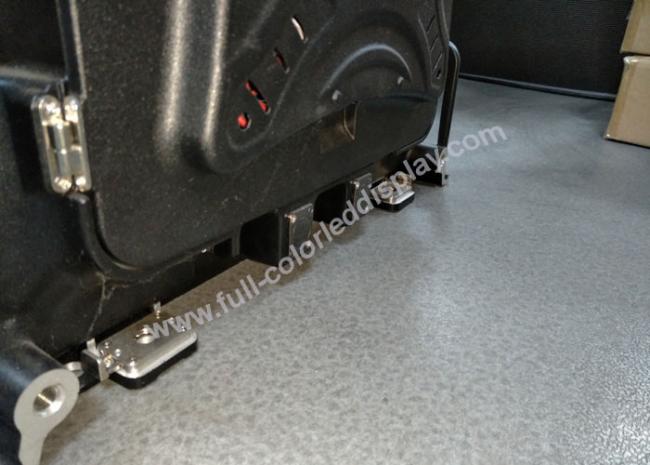

Product detail:
