Brush Aluminium Cabinet Advertising LED Displays P4 Lower Power Consumption
Price:
Negotiation
MOQ:
1 square meter
Delivery Time:
15-20 working days after received your payment
Brand:
Shenzhen LED World
Product Description

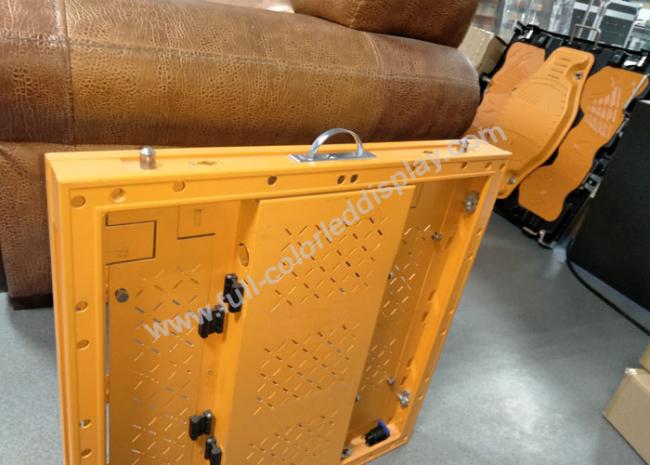

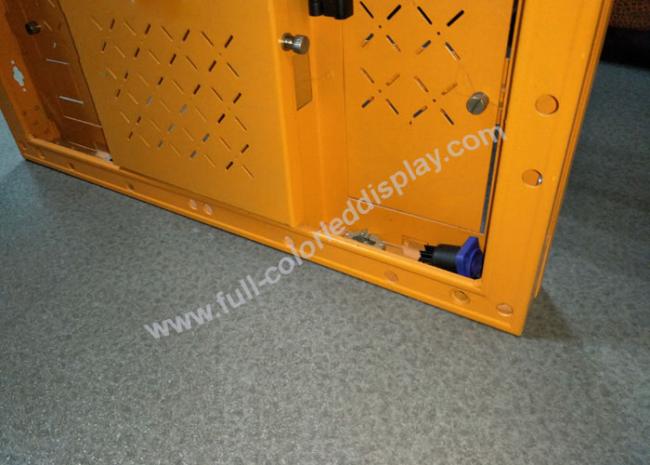

Brush aluminium cabinet Advertising LED Displays Easy Installation P4.
Features:
- So capable, so multi-functional;
- Fly case packing: 6 to 10 cabinet in one casse；
- Crane padlock vertically connected, convenient for installation;
- 4 fast locks with adjustment function for the seamless between panels;
- Unique handle design, easier assembly and disassembly and moving;
- Standard 500x500 die-casting cabinet to keep high precision;
- "High refresh rate: Over 2500 Hz/S. It ensures the picture wrinkle-less,line-less and stable.
- It is low brightness and Hight gray scale;"
- User-friendly design, more convenient installation, more efficient and secure; High strength, high toughness, and deformation; More reliable cabinet patchwork and cable connection;
- SMD3535 3 in 1 led encapsulation confirm wide view angle and lower power consumption;
- Superior uniformity and ultra-wide view angle:
- Good performance in color uniformity. The color formation must be RGB: 3: 6: 1 as required
- Wide view angle and shot view distance, friendly to eyes,without color change from different angle;
Application:
Wide applied in advertisement, Lobby,monitoring center,security company,plaza,stage background,waiting room of station,park,enterprises airport beauty shop,monitoring centers,large events,outside parkinglots,Airport,stagerenting,land marks,Government facilities,telecommunications,banquet,TV Shows and so on.
Parameter:
| No. | Item | Specification | ||||||
| 1 | Pixel Pitch | 4 mm | ||||||
| 3 | LED per pixel | SMD2121, Black led | ||||||
| 4 | Resolution | 62500 pixel/ (uniformly spread over the surface, to ensure homogeneity) | ||||||
| 5 | LED Number per/m² | 62500 | ||||||
| 6 | Single Module Dimension/Pixel(W x H) | 256mm x 128mm / (64dots * 32dots) | ||||||
| 7 | Single Cabinet Dimension/Pixel(W x H) | 512mm*512mm /(128dots * 128dots) | ||||||
| 8 | Screen Dimension(W x H) | 6.144m*4.096m | ||||||
| 9 | Screen Surface Area | 25.17 | ||||||
| 10 | Screen Graphic Definition | 1536 dots * 1024 dots | ||||||
| 11 | Screen Configuration (W×H) | 96 cabinets (Modular structure, allow any shape and size) (2 screens) | ||||||
| 12 | Cabinet Material | Rental, Die-casting | ||||||
| 13 | Single Cabinet Weight | around 8.5kg | ||||||
| 16 | Optimal View Distancing | 4m-150m | ||||||
| 17 | Horizontal Viewing Angle | 140° (Standard LEDs Viewing Angle) | ||||||
| 18 | Vertical Viewing Angle | 140° (Standard LEDs Viewing Angle) | ||||||
| 19 | Brightness | >1400cd/m² | ||||||
| 20 | Grey Color | 14 Bit | ||||||
| 21 | Contrast | 2000:01:00 | ||||||
| 22 | Operating Temperature | -20ºC~+50ºC , 10%~90%RH | ||||||
| 23 | Temperature Checkup | When the working temperature is over 70 ºC, the power supply will cut off the current automatically. There are also excessive current& voltage protection | ||||||
| 24 | LEDs Lifetime | >1,000,000 Hours | ||||||
| 25 | Warranty | 2 years | ||||||
| 26 | Input Voltage | 110V-240V | ||||||
| 27 | Input Power Frequency | 47~64Hz | ||||||
| 28 | Screen Power Consumption | Max:≤380W/sqm ; Average: 130w/sqm | ||||||
| 29 | Refresh Rate | ≥1600Hz | ||||||
| 30 | Frame Rate | > 60 frames/sec | ||||||
| 31 | Defect Rate | ≤0.0002 | ||||||
| 32 | Water proof | No | ||||||
| 33 | Control Method | Synchronized with computer monitor | ||||||
| 34 | Way of Drive | 1/16 Scan constant driving | ||||||
| 35 | MTBF | > 100,000 hours | ||||||
| 36 | Color Temperature | 6500K±500 | ||||||
| 37 | Signal Interface | DVI | ||||||
| 38 | Source Compatibility | YPbPr, PAL/NTSC, S-Video, HDMI, VGA, HD_SDI | ||||||
| 39 | Control Distance | 120 m (CAT5, CAT6); Optical fiber transmission: 500m- 10km | ||||||
| 40 | Systems Operating Platform | WINDOWS(WIN95,WIN98,WIN2000, WINXP), with a friendly UI, and interfaces for secondary development. | ||||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||||
FQA:
- Are you manufacturer of led display.If yes, in which city?
- Yes, Our factory with 9000 square meters. And we're in SHENZHEN city, GUANGDONG Province;
- Besides this product, may I have other options?
- Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor;
- What's the pixel pitch for Outdoor LED Display Screen?
- Outdoor(p3.91mm/p4.81/p5mm/P6mm/p6.25/p6.67/ P8mm/P10mm/p16mm/p20mm) led display screen;
- How long can I get the cargos?
- Our production time is about 10-25 working days.When we confirmed the order, we can start production after receiving your deposit (40% TT in advance).we will update the production details in time.we will notice you before finish and after delivery the goods to you after we get full payment.About the time from start port to destination, it depends on the distance and the state of the forwarder.
