Multi Functional Led Digital Screen Advertising OEM / ODM Available
Price:
Negotiation
MOQ:
1 square meter
Delivery Time:
12-20 working days after received your payment
Brand:
Shenzhen LED World
Product Description
6.25mm pixel pitch Advertising LED Displays 16:9 ratio 500x500 die-caste cabinet
Features:
- Can be used both outdoors and indoors;
- High definition,25600 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end;
- Cabinet size:500mmW*500mmH, thickness around 60mm, only7.8Kg;It can be P3.91, P4.81, P5.68 and P6.25;
- Module size of 250x250mm, can be assembled with 500x500mm and 500x1000mm;
- The resolution is 30976 pixels per square meter so definition is high enough for showing video, images and it's clear enough when viewed in short distance;
- Multifunctional cabinet, just change the module to upgrade the product with low cost;
- Can be flat screen and curved screen, one screen, multiple use, you can shape anything you want;
- Angle adjustment
- Using angle adjustment structure, panels could be assembled into different shape like convex and concave, the angle range is ±15° .
- The same cabinet can be compatible with different pitches:P4.8/P3.91/P6.25Some pictures showing as belo for your reference:Some pictures showing below for your reference;
- P4.8 and P6.25 can be used both outdoors and indoors;
Application:
Our full color LED display are widely used in chain shop,Building facilities,Outdoor Signage and advertisement,hospitals,live show,Offices,travel agency,airport,high-rise building roof,theme parks,financial industry, entertainment venues,fitness hall,stores office building,Football fields,studio,Entertainment centers,theaters,high-speed rail station,outside parking lots and so on.
Parameter:
| Pitch | Outdoor |
| P6.25mm | |
| Encapsulation | SMD3535 |
| Pixel Configuration | 1R1G1B |
| Driver Method | 1/10 |
| Module Size(H*W/mm) | 250*250/ |
| 250*500 | |
| Module Resolution(H*W/dots) | 40*40/ |
| 40*80 | |
| Pixel Density(dots/M2) | 25600 |
| Average Power Consumption | 260 |
| (Watt/M2) | |
| Max. Power Consumption | 750 |
| (Watt/M2) | |
| Brightness(CD/M2) | ≥5500 |
| Cabinets Size(W*H*T/mm) | 500*500/ |
| 1000*500 | |
| Unit Cabinet Weight(kg) | 7.8kg/12kg |
| Driver IC | MBI5124 |
| IP Rating | IP65(front) /IP54 (back) |
| Installation Method | Fixed / Hung up |
| Cabinets material | Die-cast aluminum |
| View Angle | 1600(H)/ 1400(V) |
| Refresh Rate | ≥1920Hz |
| Frame Frequency | ≥60Hz |
| Voltage Input | AC110V/220V±15% 40~65HZ |
| Operating Temperature | -20ºC~60ºC ,storage for :-30oC~+90oC |
| Maintenance | Rear |
| System Working Environment Humidity | 10%-90%RH |
| Life Span(Hours) | ≥55,000Hours |
| Color Temperature | 5600K±500 |
| Power Supply | G-energy with CE/UL proof |
| Control system support | Linsn/ Novastar |
| Compliant standard | CE, CCC, UL |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Our service:
- We promise you more than just two years warranty service;
- User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided;
- Under normal use and storage, Our Company will be responsible for the equipments;
- Service principles: Response in time, solve problems as soon as possible and ensure the use;

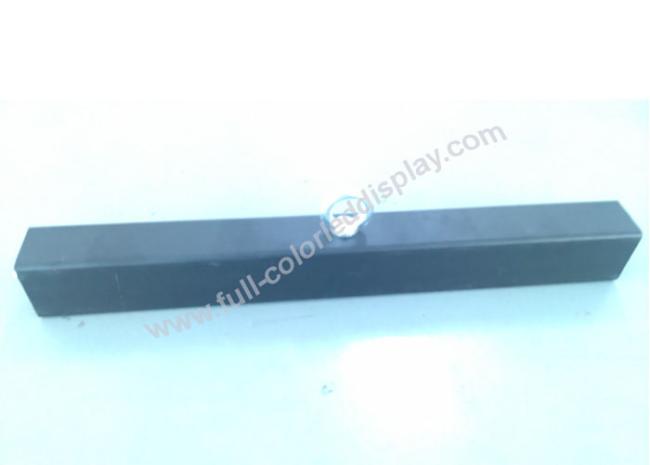

Hanging beam:

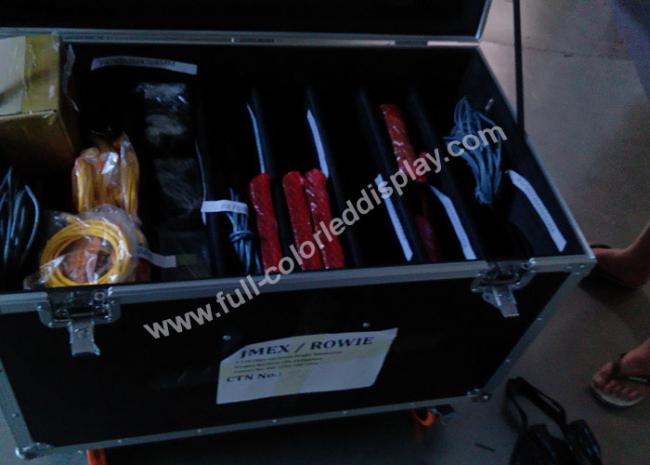

Package:
