Quick Assembling Stadium LED Display Full Color 2 Years Warranty

Price Negotiable

Price: Negotiation

MOQ: 1 square meter

Delivery Time: 12-18 working days after received your payment

Brand: Shenzhen LED World

Product Description

HD6 outdoor stadium led video wall full color for sport advertising 6000 nits.

Features:

SMD led encapsulation confirm wide view angle up 140 degree for horizontal and vertical;
high pervious to light: panel installed on the wall of the lateral also to meet the demand of indoor daylighting;
Mask adopts the buckle design, better evenness, and can be used repeatedly;
Waterproof and dust-proof;
Signal & power aviation connectors are water & dust proof, stable and reliable;
It can be single point repaired, so maintenance cost is very low;

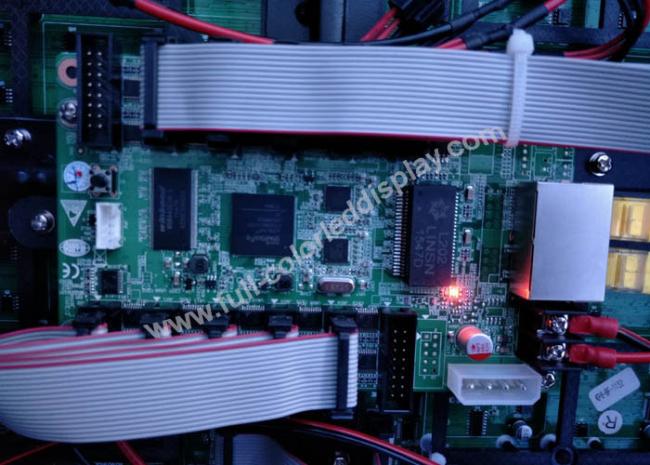

LED unit module board &IC The quality of LED module directly affects displaying effect.
LED module consists of LED lamps, driven IC and PCB circuit board.
IC: MBI 5124
LED encapsulation : Nation Star;"
Various installations Magnetic assembling, quick assembling with support or common cabinet assembling of the display tiles;

Parameter:

P6 SMD3535 Outdoor full Color LED Screen Specification
Pixel pitch	6mm
Pixel Configuration	1R1G1B
LED component	SMD3535
Size of module	192x192mm
Resolution of module	64 x 64
Size of cabinet	768mm x 768mm x 150mm / 960 x 960x150mm
Resolution of cabinet	128x128/ 160x160
Material of Cabinet	Iron/ Aluminum
Weight of Cabinet	40kgs for iron cabinet
Brightness	>6000cd/m2
Density	27777dots/m2
Best viewing angle	140 /140
Pixel Configuration	1R1G1B
Best viewing distance	5-60M
Maximum power consumption	900W/m2
Average power consumption	560W/m2
Driving method	1/8 scan
Control method	Synchronization
Gray scale	65536
Colors	256256256
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC220V/110V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	50/60Hz
Refresh frequence	>1920Hz
IP grade	IP65
Life Span	100,000 hours
Data transafer method	RJ45
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)	Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

Warranty: 2 years;
Distributer ship are offered for your unique design and some our current models;
Factory visiting and inspecting is welcome;
In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees;
The size can be change as you give, your customized lightings we can help you to design and put into product;

FQA:

Are you manufacturer or trading company?
We are manufacturer with professional marketing and service team;
How long can I get the cargos?
Our production time is about 10-25 working days.When we confirmed the order, we can start production after receiving your deposit (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.About the time from start port to destination, it depends on the distance and the state of the forwarder;

Product detail:
