P10 Indoor Sports Led Display Screen

Price Negotiable
Price: Negotiation
MOQ: 1 square meter
Delivery Time: 10-18 working days after received your payment
Brand: Shenzhen LED World
Product Description

P10 indoor Stadium LED Display screen panel board for Perimeter sport advertising.



Features:

  • Can be fixed install or hung for rental, widely used for stage,concert,show,exhibiton and commercial advertising;
  • Can be fixed installation or hungl to meet the request of live broadcast, live meeting, banquet, party, stage etc;
  • Rubber protector for top of cabinet. Use spft material for the protector and can defuse the outside impact. It efficiently protect the player from injury;
  • Rental / Fixed: Easy to install and disassemble;
  • Off-set tri-angle pixel configuration brings wider viewing angle and better match pattern in white balance;
  • We adopt rapid assembling sets which is beautiful and user-friendly;
  • High-definition, wide viewing angle, high gray scale and high refresh rate, let you enjoy the visual feast and experience the cost-effective products of LED WORLD;
  • Adopting SMD technology, viewers can enjoy a wider viewing angle with better flatness,which is best choice for outdoor users;



Parameter:

P10 Indoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 320mm x 160mm
Resolution of module 32x16
Size of cabinet 1280mmx 960mm
Resolution of cabinet 128x96
Material of Cabinet Iron with back doors
Weight of Cabinet <55KGS
Brightness >1500cd/sq.m
Density 10000dots/sq.m
Best viewing angle 140 /140
Best viewing distance 10-100M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1500Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
Effectivce Communication Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay) Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Why choose us:

Provide promotion activity;
First-rate service;
On time delivery + patient after-sales service;
Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shipping;





FQA:

  • What is your terms of delivery?
  • We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you;
  • How can i place an order?
  • Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.For designing or further discussion, it is better to contact us with Skype/email /phone, incase of any delays;

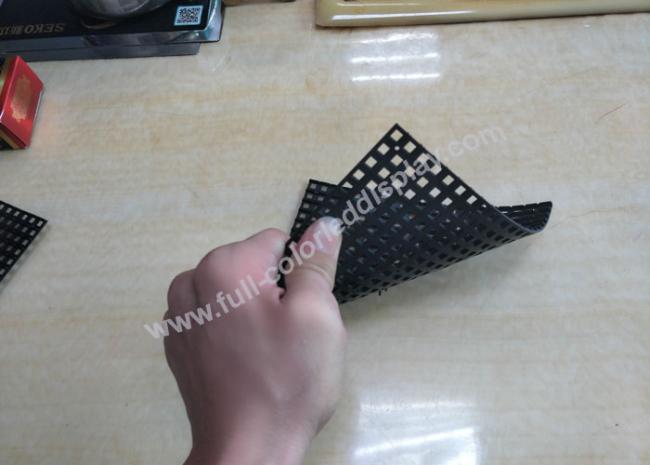

Soft mask:



Package:
