6 Mm Pixel Pitch Truck Mobile LED Display Full Color For Shopping Guide

Price Negotiable
Price: negotiable
MOQ: 1 pcs
Delivery Time: 10~18 working days after deposit received
Brand: Shenzhen LED World
Product Description

6 mm pixel pitch smd truck mobile led screen for full color trailer advertising .



Features:

  • Package: Flight case, wooden box package & carton box and so on;
  • Black body LED,high contrast ratio;
  • Video, flash, animation, graphic, text available;
  • Stable durable convenient to use and Easy to install and move;
  • Mask adopts the buckle design, better evenness, and can be used repeatedly;
  • Waterproof connecter, with power and signal indicator lights outside of the cabinet;
  • Adopts strong electricity hot-plugs, no Spark discharge during hot-plug in and hot-plug out. Absolutely waterproof, tamper-proof and anti-corrosion;
  • IP65 protection grade, waterproof rubber gasket and military-grade conformal coating enable the display to work in all weather outdoor environments;



Parameter:

Type Name LW-FO6
Pixel Pitch 6mm
Pixel density(dot/m2) 27556
Brightness (nits) ≥6500
Drive Method 1/8
Refresh rate (HZ) ≥1200
Module size (mm) 160X160
Cabinet size (mm) Customize, integer multiples of module size
Cabinet material Steel or Aluminium
Cabinet weight 50kg/cabinet
Screen work Voltage (V) 110~240V/AC
Screen power consumption Max 750 / Average250
(W/SQM)
Screen View angle 140°/140°
IP Grade IP65
Operationg Temperature/Humidity -20~50ºC
  10~90% RH
Storage Temperature/Humidity -40~60ºC
  10~90% RH
Life Time >50000H
Standard CE ROHS CCC ISO
Certification
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Applications:

Suitable for Government facilities,Shopping Guide,Audio visual rental field,Amusement parks,school,
surrounding,grogshop,public advertising,government project and so on .



FQA:

  • May I know the Minimum order for your products?
  • For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen;
  • Besides this product, may I have other options?
  • Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor;
  • What is your terms of delivery
  • We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you;
  • What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
  • SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp?Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve theUniform of the screen, this will make the screen have a more wide viewing angle and smooth image.With the technology advanced and SMD brightness improved, SMD is more and more used outdoor;

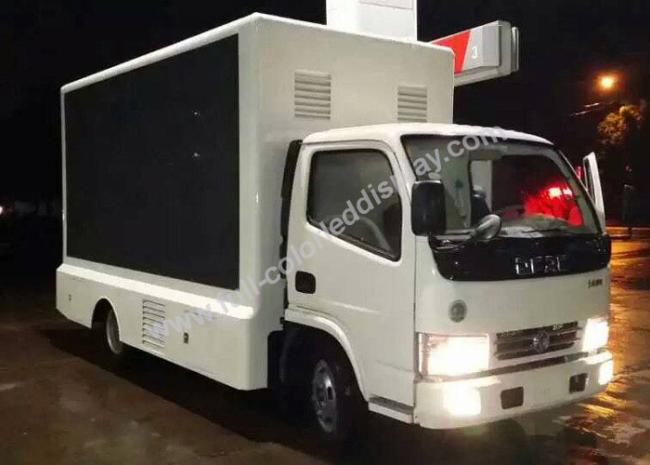

Project case:

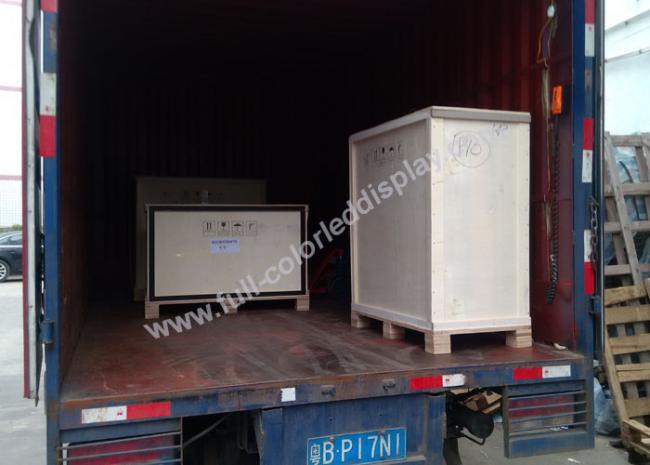

Package:
