Energy Saving Truck Mobile LED Display P5 / P6 / P8 / P10 Weather Resistant Cabinet
Price:
negotiable
MOQ:
1 pcs
Delivery Time:
10~18 working days after deposit received
Brand:
Shenzhen LED World
Product Description

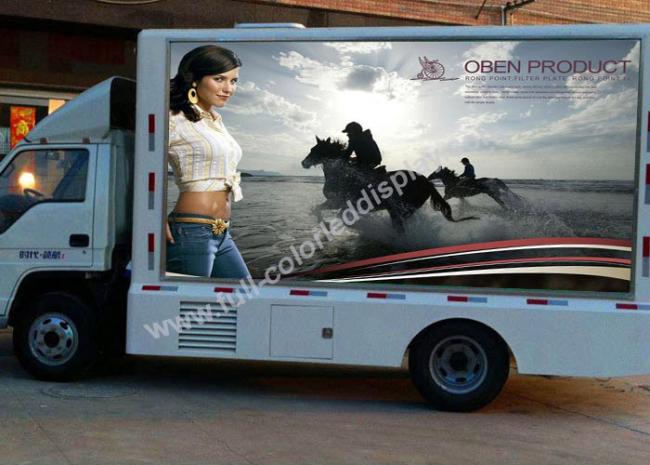

P5 / P6 / P8 / P10 outdoor Truck Mobile LED Display screen panel for trailer advertising.
Features:
- With dip 346 epsitar chips is a tradintional products,with steady technology and good performance for outdoor display, especially with cheap price;
- Weather resistant cabinet；
- Smooth and Delicate Showing Effect
- 16bit gray scale, super high refresh rate, obtaining high gray scale at low brightness; rapid frame changing, eliminating ghosting without smearing, delicate showing effect.
- No fan and noiseless, low temperature rise, lengthening product life span;
- Auto fan and brightness;
- Macromolecular flexible mask with glareless surface and better contrast ratio;
- Energy Saving
- It can save more than 50% energy compared with the conventional display;
Parameter:
| Description | Technical parameter | |
| Unit module | Module size | 160*160mm |
| Pixel pitch | 10mm | |
| Pixel density | 10000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Led specification | Φ 5ellipse | |
| Pixel resolution | W: 16dots*H: 16dots | |
| Cabinet | Dimension | 960mm*960mm*150mm |
| Quantities of module | 18pcs | |
| Power supply | 5pcs | |
| Thermal discharge | Fan*2pcs | |
| Total weight | 55kg | |
| Best viewing angle | 10-300m | |
| Temperature | Storage: -35~+85 | |
| Working: -35~+85 | ||
| Thickness | 15cm can adjustable | |
| Remarks: cabinet size can changed, upon project need. | ||
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 250-500W | |
| Max. Power consumption | ≤ 560W/sqm | |
| Current | ≤ 20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Static scanning |
| Drive type | Constant Current driver IC | |
| Refresh frequency | ≥ 400Hz | |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
| Brightness of white balance | More than 8000cd/sqm | |
| Brightness adjustment | 256 levels of each color(R/G/B)by software | |
| Operating ambient humidity | 10%--95% | |
| Video signal | PAL/NTSC | |
| Control system | DVI display card+full color controller card | |
| MTBF | ≥ 10, 000hours | |
| Life span | ≥ 100, 000hours | |
| Flatness | Tolerance of interpixel ≤ 0.3mm | |
| Tolerance of modules clearance≤ 0.6mm | ||
| Power switch | Automatic switch | |
| Display mode | 1024*768 | |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM | |
| Software | LED media player | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Applications:
Suitable for shopping malls, mansion video wall,propaganda image,subway,movie theater,the demonstration center,auditorium,commercial building,antechamber and so on .
Our service:
years free warranty,life-long maintaining；
Apart from the advertising LED display ,we also suport indoor/outdoor SMD LED display /LED gas price sign /Flexible LED sign /LED pharmacy cross；
We will delivery goods as you demand ,you can choose the cheaper and more convenient way;
