China Mobile Advertising Led Display P10 for sale

Mobile Advertising Led Display P10

Price Negotiable

Price: negotiable

MOQ: 1 pcs

Delivery Time: 10~18 working days after deposit received

Brand: Shenzhen LED World

Product Description

P10 Truck Mobile LED Display outdoor 7500nits wide viewing angle IP65 waterproof .

Features:

RGB deep gray processing, color is rich and exquisite, natural picture;
Frosted black LED and light absorbing corrugated mask,make the screen can show vivid images even in bright environment;
Front and rear maintenance: modules can be removed from front and back side, fast maintenance;
Convenient maintenance;
Black body led lamps confirm the high brightness,high contrast rate;
High ingress protection as IP65, waterproof, apply for outdoor using and have longer life span;

Parameter:

P10 Outdoor full Color LED Screen Specification
Pixel pitch	10mm
Pixel Configuration	1R1G1B
LED component	DIP346
Size of module	160mm x 160mm
Resolution of module	16x16
Size of cabinet	960mmx 960mm /1280mm x 960mm
Resolution of cabinet	96x96 / 128 x 96
Material of Cabinet	Iron with back doors
Weight of Cabinet	<60KGS
Brightness	>7500cd/Sq.m
Density	10000dots/sq.m
Best viewing angle	140 /140
Best viewing distance	10-150M
Maximum power consumption	<800W/sq.m
Average power consumption	<300W/sq.m
Driving method	1/4 scan
Control method	Synchronization/Asychronization
Gray scale	65536
Colors	256256256
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC220V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	50/60Hz
Refresh frequence	>1800Hz
IP grade	IP65
Life Span	100,000 hours
Data transafer method	RJ45
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)	Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Applications:
It is designed for mobile use stadiums,post office,traffic display,conference,large exhibition hall,high-speed rail station,parking garage,athletic contest,backgound and so on.

Our service:

Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on;
We offered training to our customer who includes operating and maintenance of our products;
Design the framework structure to install our led products with technical drawing;

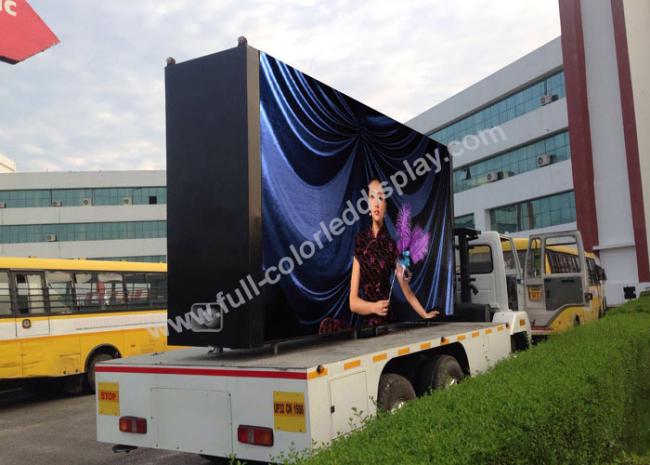

Project case:

Package:
