P3.91 P4.81 P5.95 P6.25 Portable stage video screens angle adjust -20 to +20
Price:
Negotiation
MOQ:
1 square meter
Delivery Time:
10-18 working days after received your payment
Brand:
Shenzhen LED World
Product Description
P3.91 P4.81 P5.95 P6.25 Portable stage video screens angle adjust -20 to +20
Features:
- Indoor and outdoor Full color led project screen.
- Adjustable screen radian;
- 500x500mm panel size is given it the advantage of setting up accurate dimensions;
- High definition,43402 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end;
- Can be flat screen and curved screen, one screen, multiple use, you can shape anything you want;
- Mixed installation: the two cabinets size of 500mmx500mm and 500mmx1000mm can be installed together;
- The same cabinet can be compatible with different pitches:P4.8/P3.91/P6.25Some pictures showing as belo for your reference:Some pictures showing below for your reference;
- Angle adjustable -20 degree to +20 degree, inside curved or outside curved both available;
Application:
Wide applied in plaza,entertainment TV,power sector,monitoring centers,banking,Entertainment complexes,hotel and so on .
Our service:
- Well-trained and experienced staffs to answer all your enquires in fluent English;
- 2 years warranty offered;
- We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site;
Parameter:
| Parameter | Unit | Value |
| Pitch | mm | 3.91 |
| Brightness | nits | 1,500 |
| Color temperature | deg. K | 6,500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle - Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 6 |
| Panel width | mm | 500 |
| Panel height | mm | 500 |
| Panel depth | mm | 78 |
| Panel area | sq. m. | 0.25 |
| Panel material | Epoxy paint coated Aluminum | |
| Panel Mode | Die-Cast rental | |
| Operating temperature range | deg. C | -20 to +60 |
| Humidity operating | RH | 10% ~ 60% |
| Pixel type and configuration | R/G/B | 3-in-1 SMD |
| Resolution per panel | 128x128 | |
| Dot per panel | 16,384 | |
| Dot per sq. meter | 65,536 | |
| LED per sq. meter | 65,536 | |
| Recommended minimum viewing distance | m | 2.98 |
| Recommended best viewing distance | m | 3~100 |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65,536 |
| Brightness control | Levels | 256 |
| Contrast ratio | 2,000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel. | 300 |
| Input power (typical) | Watts / panel. | 120 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Hanging/Fixed | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||

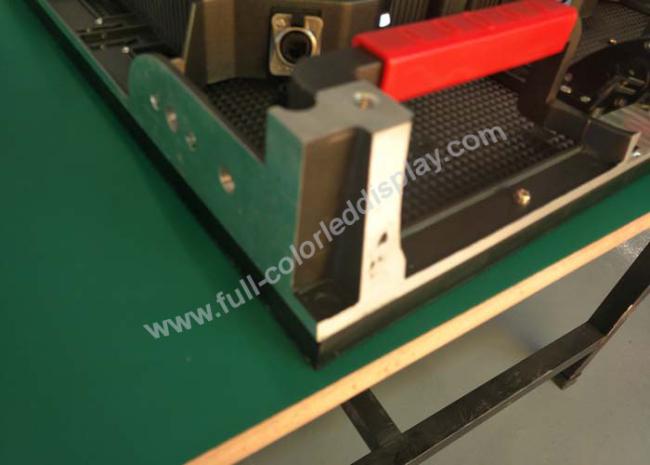

Product detail:
