Indoor RGB high brightness led screen rental / high definition video display 500 * 500 cabinet
Indoor RGB high brightness led screen rental / high definition video display 500 * 500 cabinet
Features:
- Made with same module size of traditional 250x250mm size,only some different for the external members,and with a handle at the back of module,for take the module out of the cabinets；
- The same cabinet can be compatible with different pitches:P4.8/P3.91/P6.25Some pictures showing as belo for your reference:Some pictures showing below for your reference;

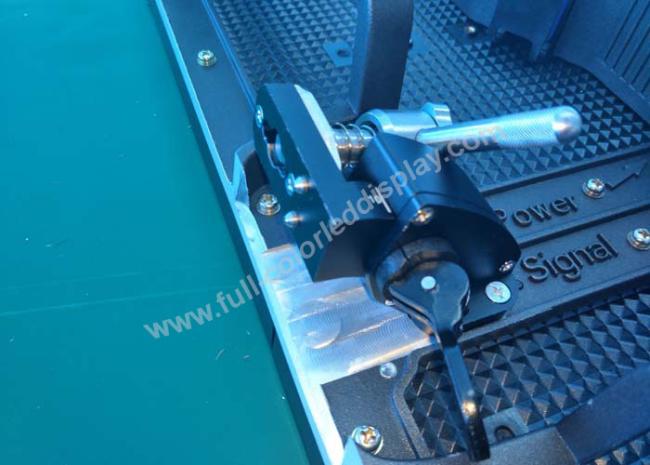

- Safty Lock. Upgrated double safty lock design, double hanging lock and stable side lock;
- High definition,43402 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end;
- The shapes can be outer curved ,inner curved ,flat and waved by using our specially designed angle regulator;
- Angle adjustable -15 degree to +15 degree, inside curved or outside curved both available;
- Cabinet size:500mmW*500mmH, thickness around 60mm, only7.8Kg;It can be P3.91, P4.81, P5.68 and P6.25;
Why choose us:
- Competitive price as stocks and lower marketing expense;
- No MOQ;
- OEM service;
- Our product are low consumption;
Parameter:
| 1 | Item | 6.25 |
| 2 | Led Lamp | SMD3528 |
| 3 | Pixel Density (dot/) | 25600 |
| 4 | Moduel Size(mm) | 250*250 |
| 5 | Brightness(cd/) | 1500 |
| 6 | Viewing Angle(H/V) | H:140/V:140 |
| 7 | Cabinet Material | Die-casting Aluminium |
| 8 | Cabinet Size(W*H*T,mm) | 500*500*80 |
| 9 | Cabinet Weith(KG) | ≈8.5 |
| 10 | Fresh Rate | 1920 |
| 11 | Grey Scale (Level) | 65536 |
| 12 | Display Color | 281 trillion |
| 13 | Brightness Adjustment (Level) | 256 |
| 14 | Waterproof | IP31 |
| 15 | Driving Way | 1/10 constant driving |
| 16 | Input Power Frequency | 50/60Hz |
| 17 | Input Voltage (V) | 110V - 240V |
| 18 | Screen Power Consumption(W/) | Max:600; Average:200 |
| 19 | LEDs Lifetime(H) | 100,000 |
| 20 | Operating Temperature | -20ºC~+45ºC , 10%~90%RH |
| 21 | Signal Interface (Video Processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |
| 22 | Control Method | Synchronized with computer monitor |
| 23 | Control Distance | 100 m (CAT5, CAT6); Optical fiber transmission: 500m- 10km |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Our company:
Shenzhen LED World co.,ltd was founded in 2007, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services.
Our company leads the way in LED display manufacturing & technology.
Company in good faith with the talents and distribution to join the LED display system and common development, and make due contribution to the development of LED display system.
Our technology strength is among the front row in this industries, with a professional team. Strictly quality control, good after sale service and quickly delivery.
Through the efforts and collaboration of all employees of the company, the products are exported to Europe, North America, Australia, the Middle East, and the establishment of a stable distribution agents in the respective regions.
Product detail:
