P3 Indoor Rental LED Display full color / LED video wall screens SMD2121 8 scan drive mode
P3 Indoor Rental LED Display full color / LED video wall screens SMD2121 8 scan drive mode
Product Features:
- CNC Die casting Aluminium chasis,very precise to minimum gap;
- Good hot dissipation, beautiful looking, easy mounting without gap;
- High-performance Aluminum cabinet, hanging max 20 panels in a vertical line;
- Noiseless: Die-casting Aluminum cabinets, fanless design with noiseless power supply;
- It is fast to install and dismantle and very Easy for maintenance;
- Low power consumption and good performance of dissipating heat make it work normally in the condition of no air conditioning;
- Durable & stable;
- Black body LED lamp,can reach high contrast rate;
- Supporting structure at the back supports screen quickly, makes screen installation efficiently;
Trade term:
- 2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees;
- Packing: Anti-shaking wooden package or Air Flight Case;
- Technical material: English version user manual, installation manual, and maintenance manual;
- Packing: Anti-shaking wooden cabinet /Air flight case/carton;
Parameter:
| Product model | P3-16S |
| Module size | 192mm*96mm |
| Pixel pitch | 3mm |
| Pixel density | 111111dots/m2 |
| Pixel configuration | smd 3in1 |
| Module resolution | 64dots(W)*32dots(H) |
| Maximum power consumption | 18W |
| Module thickness | 14.75mm |
| Module weight | 0.16kgs |
| Driving method | Constant current driving |
| Scan mode | 1/16 scan |
| Interface type | HUB75-A |
| Brightness | ≥1500cd/m2 |
| The specifications of cabinet | |
| Cabinet size | 576mm*576mm |
| Module quantity | 18pcs |
| Power supply | 5V/40A *3pcs |
| Cabinet resolution | 192*192dots |
| Optimal viewing distance | 3m~20m |
| Optimal viewing angle | 160°(W) 120°(H) |
| Temperature | "Storage:-35ºC~+85ºC |
| Working:-20ºC~+50ºC" | |
| System operating humility | 10%-95% |
| The specifications of power supply | |
| Operating voltage | AC220V±10% |
| Average power consumption | 180W/ |
| Maximum power consumption | ≤360W/ |
| Current | ≤20mA(single LED) |
| The specifications of control system | |
| Computer | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization control |
| The specifications of the main technical parameters | |
| Driving device | Constant current driving |
| Refresh rate | ≥1920Hz |
| Grey scale | RGB each 256 grade, can display 16.7M colors |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display mode | 800*600/1024*768 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Why choose us:
- Provide promotion activity;
- Our products are the CE certified, ROHS compliant, FCC identified;
- Service advantage: Better service at same situation, better cooperation at same service;
- CE,RoHS,FCC, ISO9001;
Our company:
The workshop covering an area of 9000 square meters, No. of production lines are above 10.
Company in good faith with the talents and distribution to join the LED display system and common development, and make due contribution to the development of LED display system.
Shenzhen LED World Optoelectronics Limited is the top professional LED Display manufacturer, and has about 9 years experience in LED screen industry, more than 9000sqm workshop, 400 workers, automatic production line, strong R&D team. Our products have passed RoHS, 3C, FCC and CE quality authentication.

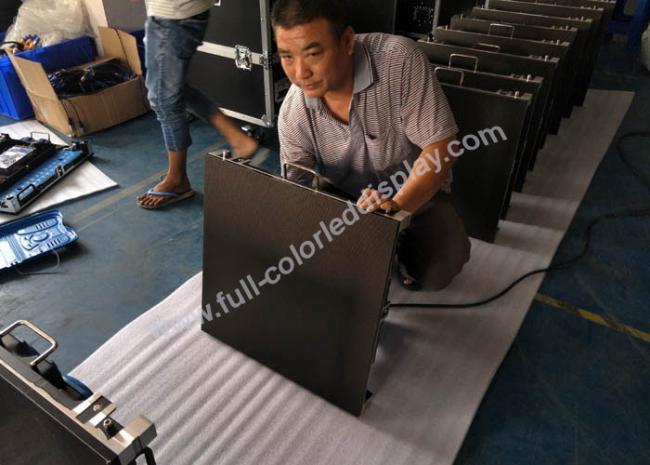

Product detail:

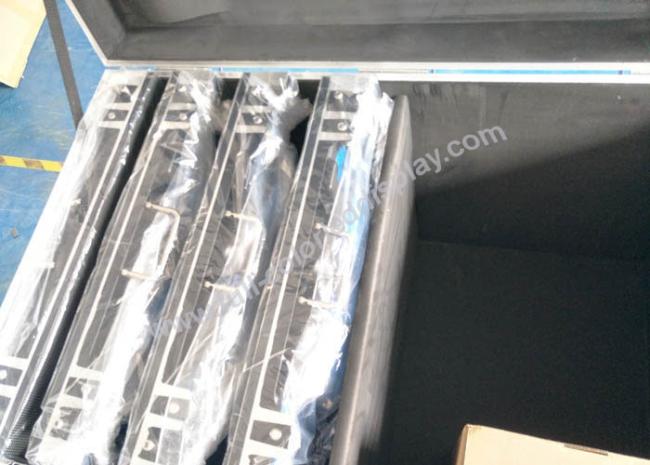

Product package:
