Easy Installation Synchronous P4 Indoor Led Stage Display Panel Die Caste Caibnet
Price:
Negotiation
MOQ:
1 square meter
Delivery Time:
10-18 working days after received your payment
Brand:
Shenzhen LED World
Product Description
Easy Installation Synchronous P4 Indoor Led Stage Display Panel Die Caste Caibnet
Features:
- SMD led encapsulation ensure good heat dissipation and low power consumption;
- The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use；
- It is ideal for use at outdoor locations with large viewing distances;
- Consistent color temperature and brightness,no mosiac and blind spot;
- Suitable for any indoor or outdoor, fixed or rental application;
- The unique mechanical design enables modules to be installed or removed in seconds from the front or the back side;
- Easy: Clumsy-resistance, drop-resistance, no tools needed installation;
- Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc;
- Buttons on the backdoor, easy to open and close;
- Fast splicing, easy to maintain;
Application:
It is designed for rental use indoor stage,Stage Performance,theaters,waiting area,traffic display,entertainment TV,chain shop,shopping malls,
antechamber,bookstore,large exhibition hall,coffee shop and so on .
FQA:
- What kind of display we provide?
- We have indoor/outdoor/rental taxi top /mobile LED display/LED stage/Irregular LED display for you choose;
- What's the pixel pitch for Outdoor LED Display Screen?
- Outdoor(p3.91mm/p4.81/p5mm/P6mm/p6.25/p6.67/ P8mm/P10mm/p16mm/p20mm) led display screen;
- May I know the package details?
- For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.It's safe to protect the screen on the way, also economical;
Parameter:
| Unit Module | Item | Parameter |
| Model Number | LW-P4-32S | |
| Module size | 256mm*256mm | |
| Pixel pitch | 4mm | |
| Pixels Density | 62500 / m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD2121 | |
| Pixel resolution | 64dots(W)*64dots(H) | |
| Max Power | 25W | |
| Module thickness | 13.07mm(not including magnetic column) | |
| 25.10mm(not including magnetic column) | ||
| Weight | 0.354kg | |
| Drive type | Constant drive | |
| Scan mode | 1/32scan | |
| Port type | HUB75E | |
| Brightness of white balance | ≥800cd / m2 | |
| bracket | Size | 256mm*256mm |
| LED Cabinet | Dimension | 512mm*512mm |
| Monomer Module Number | 4 | |
| Power supply | 5V/40A*1 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 128*128 | |
| Best viewing distance | 4M~20M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature | storage:-35ºC~+85ºC | |
| working:-20ºC~+50ºC | ||
| Relative humidity | 10%-95% | |
| Thickness | 85mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 150W/m2 | |
| Max.Power consumption | ≤375W/m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||

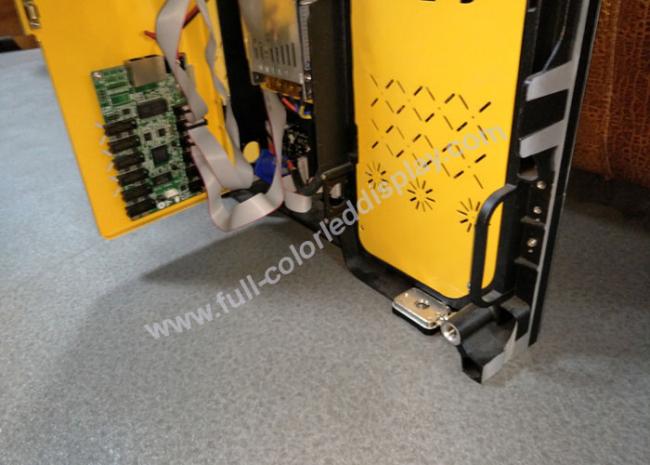

Product detail:
